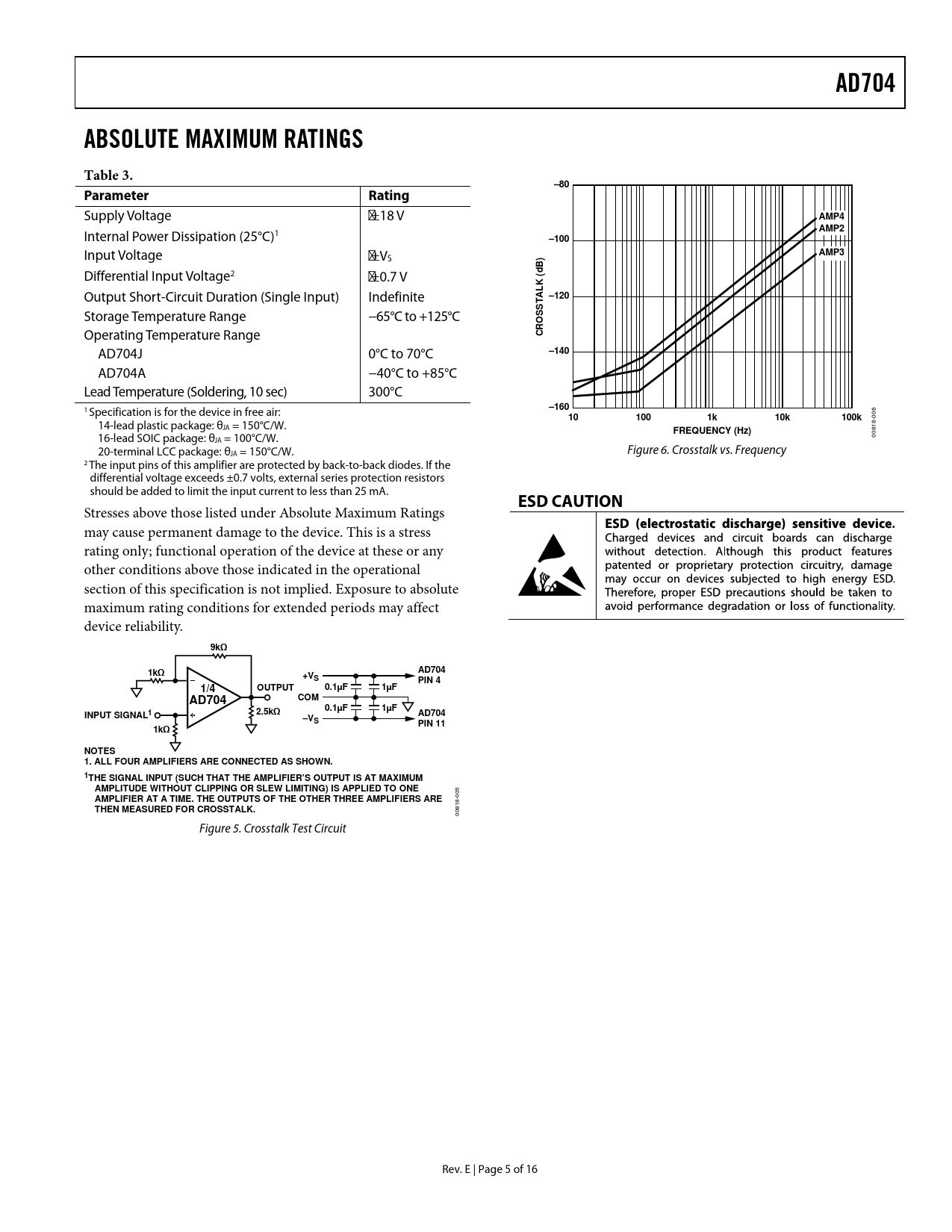

link to page 6 link to page 6 AD704ABSOLUTE MAXIMUM RATINGSTable 3.–80ParameterRating Supply Voltage ±18 V AMP4 Internal Power Dissipation (25°C)1 AMP2–100 Input Voltage ±V AMP3 S B) Differential Input Voltage2 ±0.7 V d K ( Output Short-Circuit Duration (Single Input) Indefinite AL –120T S Storage Temperature Range −65°C to +125°C S Operating Temperature Range CRO AD704J 0°C to 70°C –140 AD704A −40°C to +85°C Lead Temperature (Soldering, 10 sec) 300°C 1 Specification is for the device in free air: –160101001k10k100k 006 14-lead plastic package: θJA = 150°C/W. FREQUENCY (Hz) 16-lead SOIC package: θ 00818- JA = 100°C/W. 20-terminal LCC package: θ Figure 6. Crosstalk vs. Frequency JA = 150°C/W. 2 The input pins of this amplifier are protected by back-to-back diodes. If the differential voltage exceeds ±0.7 volts, external series protection resistors should be added to limit the input current to less than 25 mA. ESD CAUTION Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 9kΩ1kΩAD704+VSPIN 41/4OUTPUT0.1µF1µFAD704COM0.1µF1µFINPUT SIGNAL12.5kΩAD704–VSPIN 111kΩNOTES 1. ALL FOUR AMPLIFIERS ARE CONNECTED AS SHOWN.1THE SIGNAL INPUT (SUCH THAT THE AMPLIFIER’S OUTPUT IS AT MAXIMUM AMPLITUDE WITHOUT CLIPPING OR SLEW LIMITING) IS APPLIED TO ONE AMPLIFIER AT A TIME. THE OUTPUTS OF THE OTHER THREE AMPLIFIERS ARE 005 THEN MEASURED FOR CROSSTALK. 00818- Figure 5. Crosstalk Test Circuit Rev. E | Page 5 of 16 Document Outline Features Applications General Description Connection Diagrams Revision History Specifications Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Theory of Operation Outline Dimensions Ordering Guide
