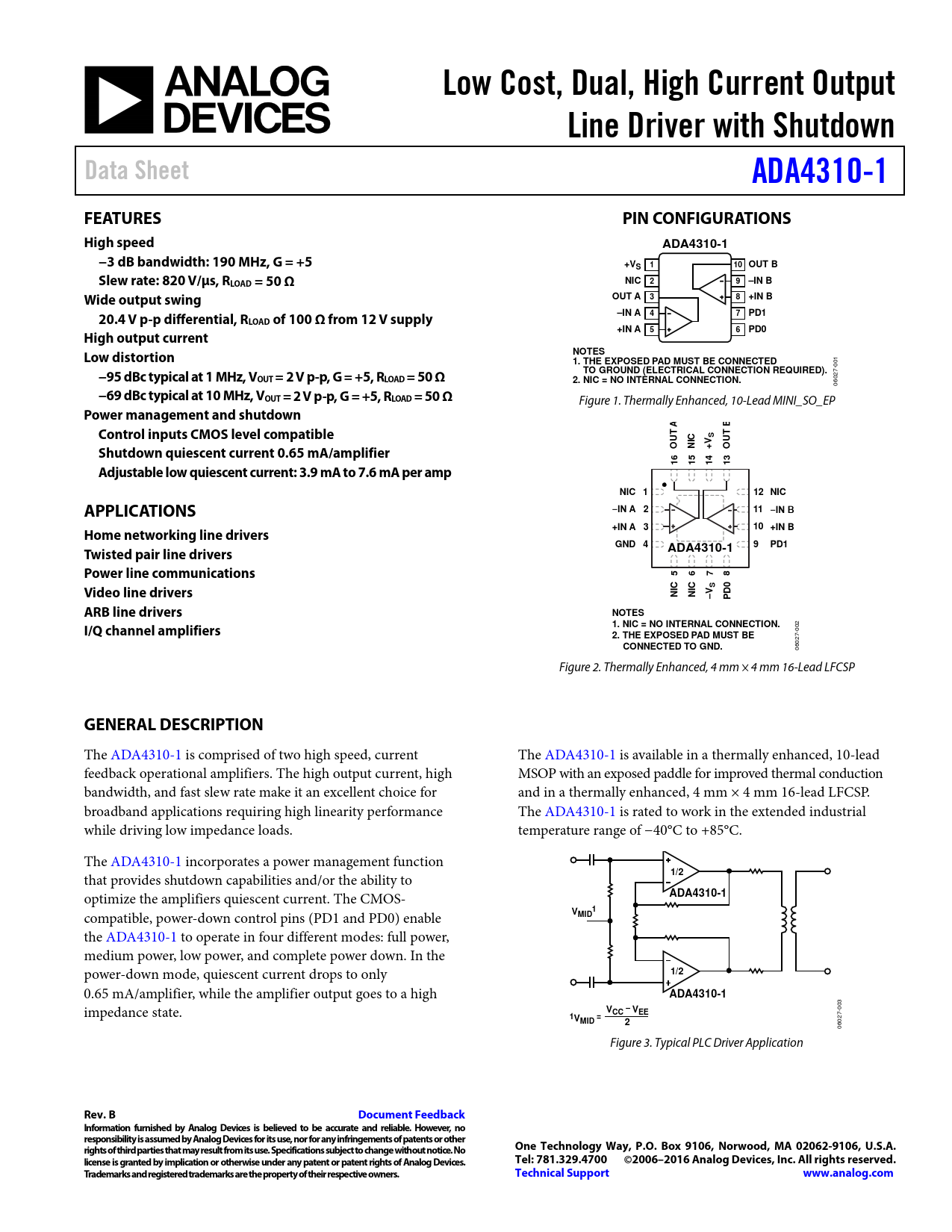

Low Cost, Dual, High Current Output. Line Driver with Shutdown. Data Sheet. ADA4310-1. FEATURES. PIN CONFIGURATIONS. High speed
Text Version of Document
Low Cost, Dual, High Current Output Line Driver with Shutdown Data Sheet ADA4310-1 FEATURES PIN CONFIGURATIONS High speed ADA4310-1 −3 dB bandwidth: 190 MHz, G = +5 +VS 1 10 OUT B Slew rate: 820 V/µs, RLOAD = 50 Ω NIC 2 9 –IN B Wide output swing OUT A 3 8 +IN B 20.4 V p-p differential, R –IN A 4 7 PD1 LOAD of 100 Ω from 12 V supply +IN A 5 6 PD0 High output current Low distortion NOTES 1. THE EXPOSED PAD MUST BE CONNECTED
001
−95 dBc typical at 1 MHz, V TO GROUND (ELECTRICAL CONNECTION REQUIRED). OUT = 2 V p-p, G = +5, RLOAD = 50 Ω 2. NIC = NO INTERNAL CONNECTION.
06027-
−69 dBc typical at 10 MHz, VOUT = 2 V p-p, G = +5, RLOAD = 50 Ω
Figure 1. Thermally Enhanced, 10-Lead MINI_SO_EP
Power management and shutdown Control inputs CMOS level compatible A T B C UT S Shutdown quiescent current 0.65 mA/amplifier O NI +V OU 16 15 14 13 Adjustable low quiescent current: 3.9 mA to 7.6 mA per amp NIC 1 12 NIC APPLICATIONS −IN A 2 11 −IN B 3 10 Home networking line drivers +IN A +IN B GND 4 9 PD1 Twisted pair line drivers ADA4310-1 Power line communications 5 6 7 8 Video line drivers C C S NI NI D0 –V P ARB line drivers NOTES I/Q channel amplifiers 1. NIC = NO INTERNAL CONNECTION.
002
2. THE EXPOSED PAD MUST BE CONNECTED TO GND.
06027- Figure 2. Thermally Enhanced, 4 mm × 4 mm 16-Lead LFCSP
GENERAL DESCRIPTION
The ADA4310-1 is comprised of two high speed, current The ADA4310-1 is available in a thermally enhanced, 10-lead feedback operational amplifiers. The high output current, high MSOP with an exposed paddle for improved thermal conduction bandwidth, and fast slew rate make it an excellent choice for and in a thermally enhanced, 4 mm × 4 mm 16-lead LFCSP. broadband applications requiring high linearity performance The ADA4310-1 is rated to work in the extended industrial while driving low impedance loads. temperature range of −40°C to +85°C. The ADA4310-1 incorporates a power management function that provides shutdown capabilities and/or the ability to
1/2
optimize the amplifiers quiescent current. The CMOS-
ADA4310-1
compatible, power-down control pins (PD1 and PD0) enable
V 1 MID
the ADA4310-1 to operate in four different modes: full power, medium power, low power, and complete power down. In the power-down mode, quiescent current drops to only
1/2
0.65 mA/amplifier, while the amplifier output goes to a high
ADA4310-1
impedance state.
–
003
VCC VEE 1V = MID 2
06027- Figure 3. Typical PLC Driver Application
