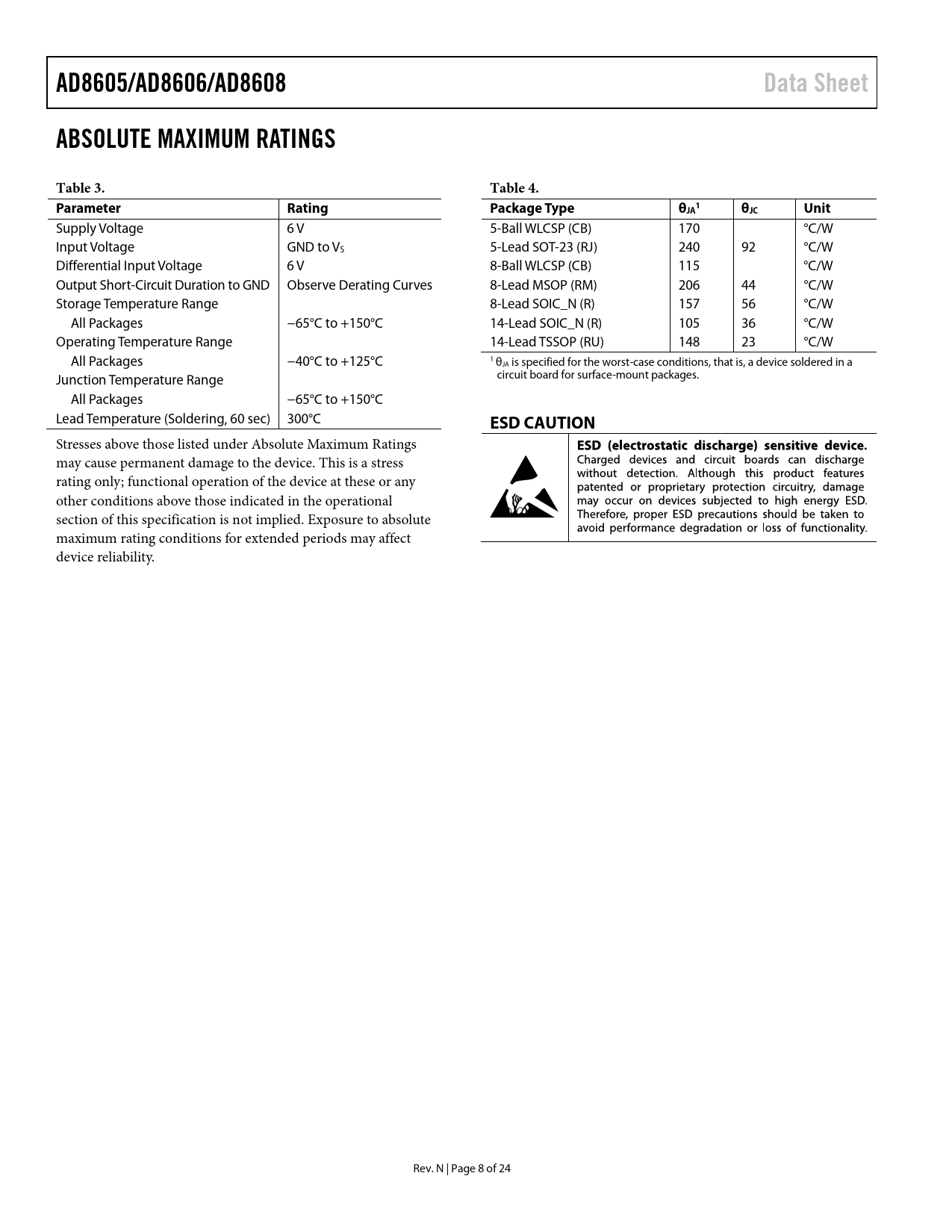

link to page 8 AD8605/AD8606/AD8608Data SheetABSOLUTE MAXIMUM RATINGSTable 3.Table 4.ParameterRatingPackage Typeθ 1JAθJCUnit Supply Voltage 6 V 5-Ball WLCSP (CB) 170 °C/W Input Voltage GND to VS 5-Lead SOT-23 (RJ) 240 92 °C/W Differential Input Voltage 6 V 8-Ball WLCSP (CB) 115 °C/W Output Short-Circuit Duration to GND Observe Derating Curves 8-Lead MSOP (RM) 206 44 °C/W Storage Temperature Range 8-Lead SOIC_N (R) 157 56 °C/W All Packages −65°C to +150°C 14-Lead SOIC_N (R) 105 36 °C/W Operating Temperature Range 14-Lead TSSOP (RU) 148 23 °C/W All Packages −40°C to +125°C 1 θJA is specified for the worst-case conditions, that is, a device soldered in a Junction Temperature Range circuit board for surface-mount packages. All Packages −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C ESD CAUTION Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. N | Page 8 of 24 Document Outline Features Applications General Description Pin Configurations Revision History 5 V Electrical Specifications 2.7 V Electrical Specifications Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Applications Information Output Phase Reversal Maximum Power Dissipation Input Overvoltage Protection THD + Noise Total Noise Including Source Resistors Channel Separation Capacitive Load Drive Light Sensitivity WLCSP Assembly Considerations I-V Conversion Applications Photodiode Preamplifier Applications Audio and PDA Applications Instrumentation Amplifiers DAC Conversion Outline Dimensions Ordering Guide
