Datasheet LTC2228, LTC2227, LTC2226 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 12-Bit, 65Msps Low Power 3V ADCs |
| Pages / Page | 28 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. OVDD = VDD (Notes 1, 2). … |
| File Format / Size | PDF / 440 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. OVDD = VDD (Notes 1, 2). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL
Model Line for this Datasheet
- LTC2226CUH#PBF LTC2226CUH#PBF LTC2226CUH#TRPBF LTC2226CUH#TRPBF LTC2226IUH#PBF LTC2226IUH#PBF LTC2226IUH#TRPBF LTC2226IUH#TRPBF
Text Version of Document
LTC2228/LTC2227/LTC2226
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION OVDD = VDD (Notes 1, 2)

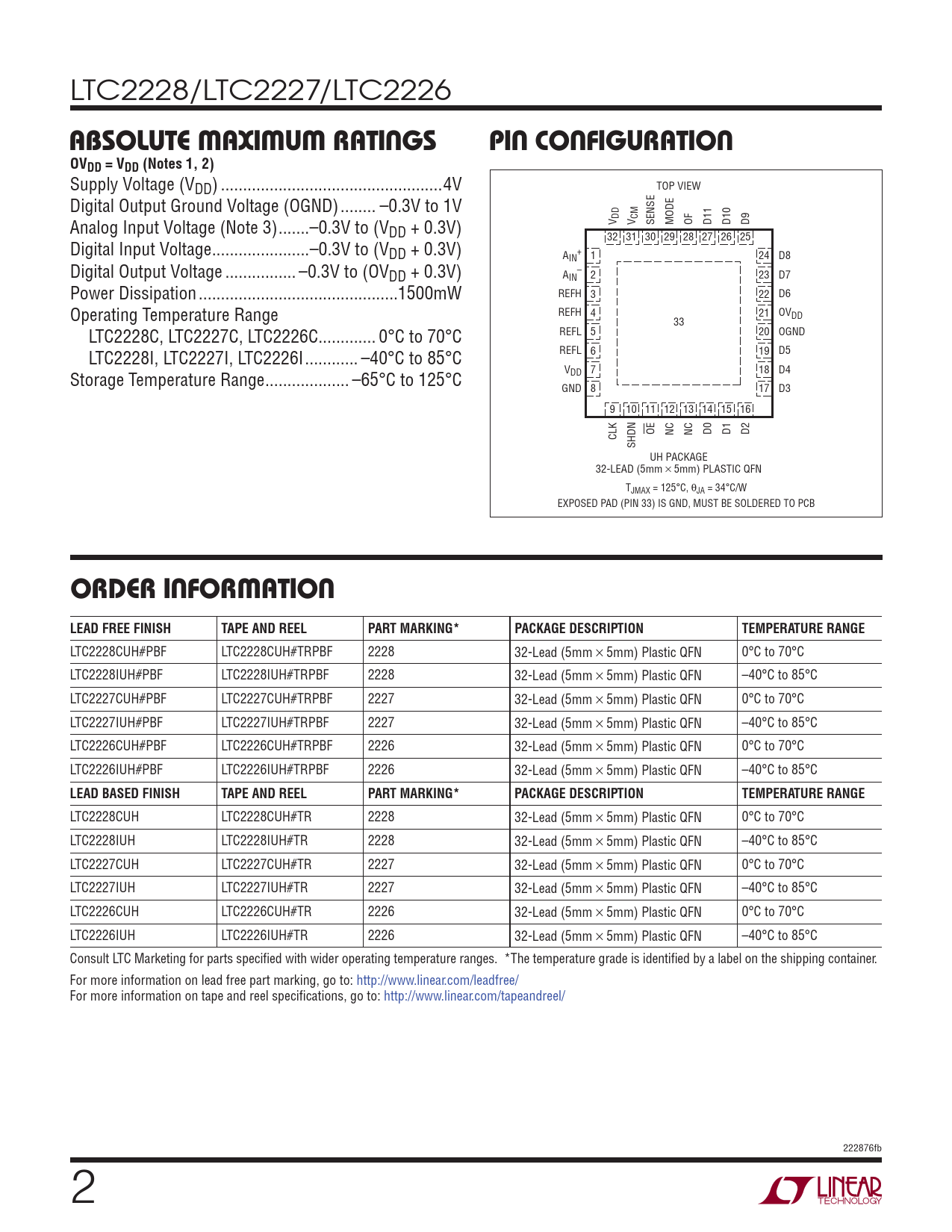

Supply Voltage (VDD) ..4V TOP VIEW Digital Output Ground Voltage (OGND) .. –0.3V to 1V DD CM Analog Input Voltage (Note 3) ...–0.3V to (V V V SENSE MODE OF D11 D10 D9 DD + 0.3V) 32 31 30 29 28 27 26 25 Digital Input Voltage ..–0.3V to (VDD + 0.3V) A + 1 24 IN D8 Digital Output Voltage .. –0.3V to (OVDD + 0.3V) A – 2 23 IN D7 Power Dissipation ...1500mW REFH 3 22 D6 Operating Temperature Range REFH 4 21 OVDD 33 LTC2228C, LTC2227C, LTC2226C... 0°C to 70°C REFL 5 20 OGND LTC2228I, LTC2227I, LTC2226I .. –40°C to 85°C REFL 6 19 D5 V 7 18 D4 Storage Temperature Range ... –65°C to 125°C DD GND 8 17 D3 9 10 11 12 13 14 15 16 OE CLK NC NC D0 D1 D2 SHDN UH PACKAGE 32-LEAD (5mm s 5mm) PLASTIC QFN TJMAX = 125°C, θJA = 34°C/W EXPOSED PAD (PIN 33) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2228CUH#PBF LTC2228CUH#TRPBF 2228 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2228IUH#PBF LTC2228IUH#TRPBF 2228 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C LTC2227CUH#PBF LTC2227CUH#TRPBF 2227 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2227IUH#PBF LTC2227IUH#TRPBF 2227 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C LTC2226CUH#PBF LTC2226CUH#TRPBF 2226 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2226IUH#PBF LTC2226IUH#TRPBF 2226 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2228CUH LTC2228CUH#TR 2228 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2228IUH LTC2228IUH#TR 2228 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C LTC2227CUH LTC2227CUH#TR 2227 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2227IUH LTC2227IUH#TR 2227 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C LTC2226CUH LTC2226CUH#TR 2226 32-Lead (5mm × 5mm) Plastic QFN 0°C to 70°C LTC2226IUH LTC2226IUH#TR 2226 32-Lead (5mm × 5mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 222876fb 2
