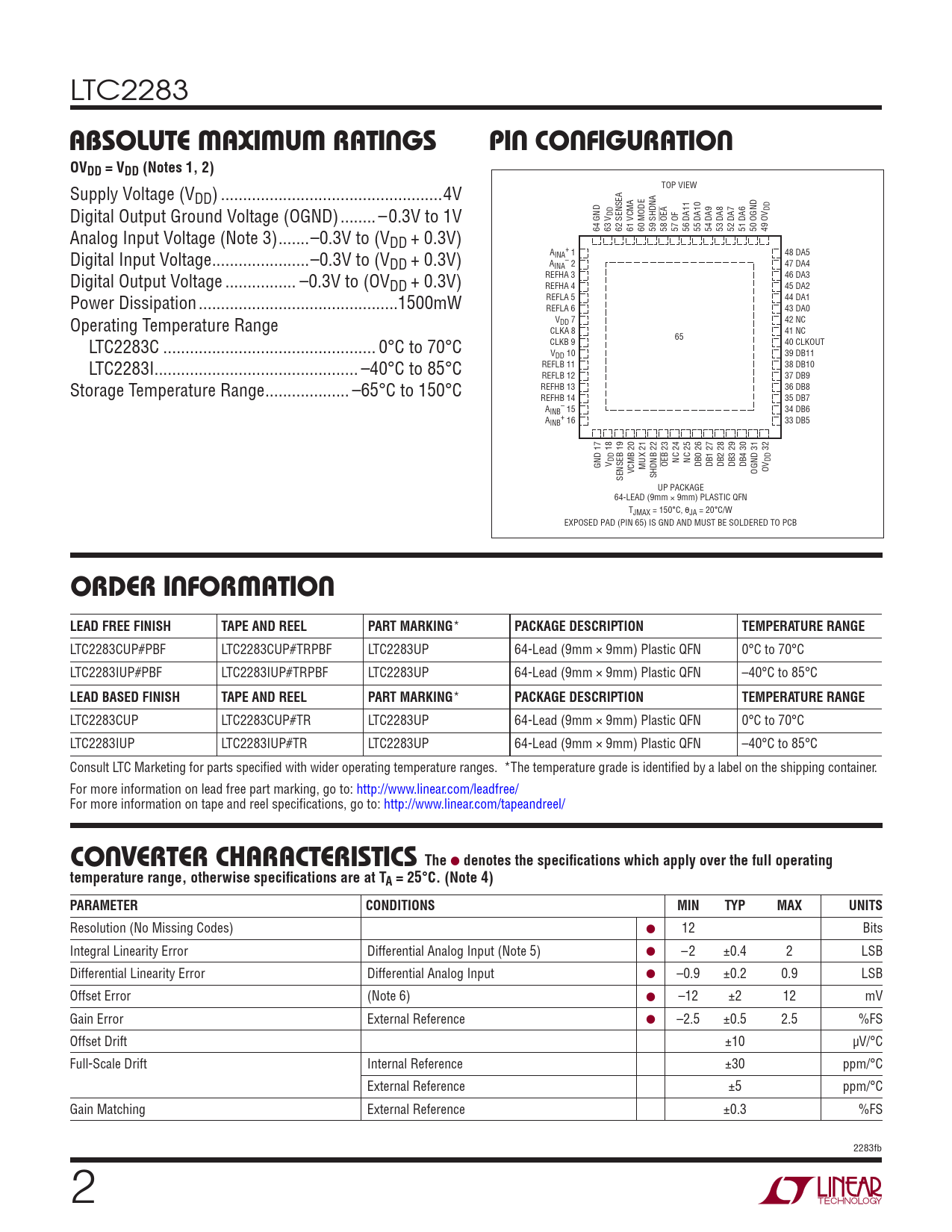

LTC2283
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION OVDD = VDD (Notes 1, 2)
TOP VIEW Supply Voltage (VDD) ..4V DD Digital Output Ground Voltage (OGND) .. –0.3V to 1V DD OEA 64 GND 63 V 62 SENSEA 61 VCMA 60 MODE 59 SHDNA 58 57 OF 56 DA11 55 DA10 54 DA9 53 DA8 52 DA7 51 DA6 50 OGND 49 OV Analog Input Voltage (Note 3) ...–0.3V to (VDD + 0.3V) + Digital Input Voltage ..–0.3V to (V AINA 1 48 DA5 DD + 0.3V) A – INA 2 47 DA4 Digital Output Voltage .. –0.3V to (OV REFHA 3 46 DA3 DD + 0.3V) REFHA 4 45 DA2 Power Dissipation ...1500mW REFLA 5 44 DA1 REFLA 6 43 DA0 Operating Temperature Range VDD 7 42 NC CLKA 8 41 NC 65 LTC2283C .. 0°C to 70°C CLKB 9 40 CLKOUT VDD 10 39 DB11 LTC2283I.. –40°C to 85°C REFLB 11 38 DB10 REFLB 12 37 DB9 Storage Temperature Range ... –65°C to 150°C REFHB 13 36 DB8 REFHB 14 35 DB7 A – INB 15 34 DB6 A + INB 16 33 DB5 17 18 19 20 23 32 DD NC 24 NC 25 DD GND V OEB DB0 26 DB1 27 DB2 28 DB3 29 DB4 30 VCMB MUX 21 OGND 31 OV SENSEB SHDNB 22 UP PACKAGE 64-LEAD (9mm × 9mm) PLASTIC QFN TJMAX = 150°C, θJA = 20°C/W EXPOSED PAD (PIN 65) IS GND AND MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2283CUP#PBF LTC2283CUP#TRPBF LTC2283UP 64-Lead (9mm × 9mm) Plastic QFN 0°C to 70°C LTC2283IUP#PBF LTC2283IUP#TRPBF LTC2283UP 64-Lead (9mm × 9mm) Plastic QFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2283CUP LTC2283CUP#TR LTC2283UP 64-Lead (9mm × 9mm) Plastic QFN 0°C to 70°C LTC2283IUP LTC2283IUP#TR LTC2283UP 64-Lead (9mm × 9mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
The CONVERTER CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) ● 12 Bits Integral Linearity Error Differential Analog Input (Note 5) ● –2 ±0.4 2 LSB Differential Linearity Error Differential Analog Input ● –0.9 ±0.2 0.9 LSB Offset Error (Note 6) ● –12 ±2 12 mV Gain Error External Reference ● –2.5 ±0.5 2.5 %FS Offset Drift ±10 μV/°C Full-Scale Drift Internal Reference ±30 ppm/°C External Reference ±5 ppm/°C Gain Matching External Reference ±0.3 %FS 2283fb 2
