Datasheet LTC2309 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 8-Channel, 12-Bit SAR ADC with I2C Interface |
| Pages / Page | 26 / 9 — Definition of Timing for Fast/Standard Mode Devices on the I2C Bus |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
Definition of Timing for Fast/Standard Mode Devices on the I2C Bus
Model Line for this Datasheet
- LTC2309CF#PBF LTC2309CF#PBF LTC2309CF#TRPBF LTC2309CF#TRPBF LTC2309CUF#PBF LTC2309CUF#PBF LTC2309CUF#TRPBF LTC2309CUF#TRPBF LTC2309HF#PBF LTC2309HF#PBF LTC2309HF#TRPBF LTC2309HF#TRPBF LTC2309IF#PBF LTC2309IF#PBF LTC2309IF#TRPBF LTC2309IF#TRPBF LTC2309IUF#PBF LTC2309IUF#PBF LTC2309IUF#TRPBF LTC2309IUF#TRPBF
Text Version of Document

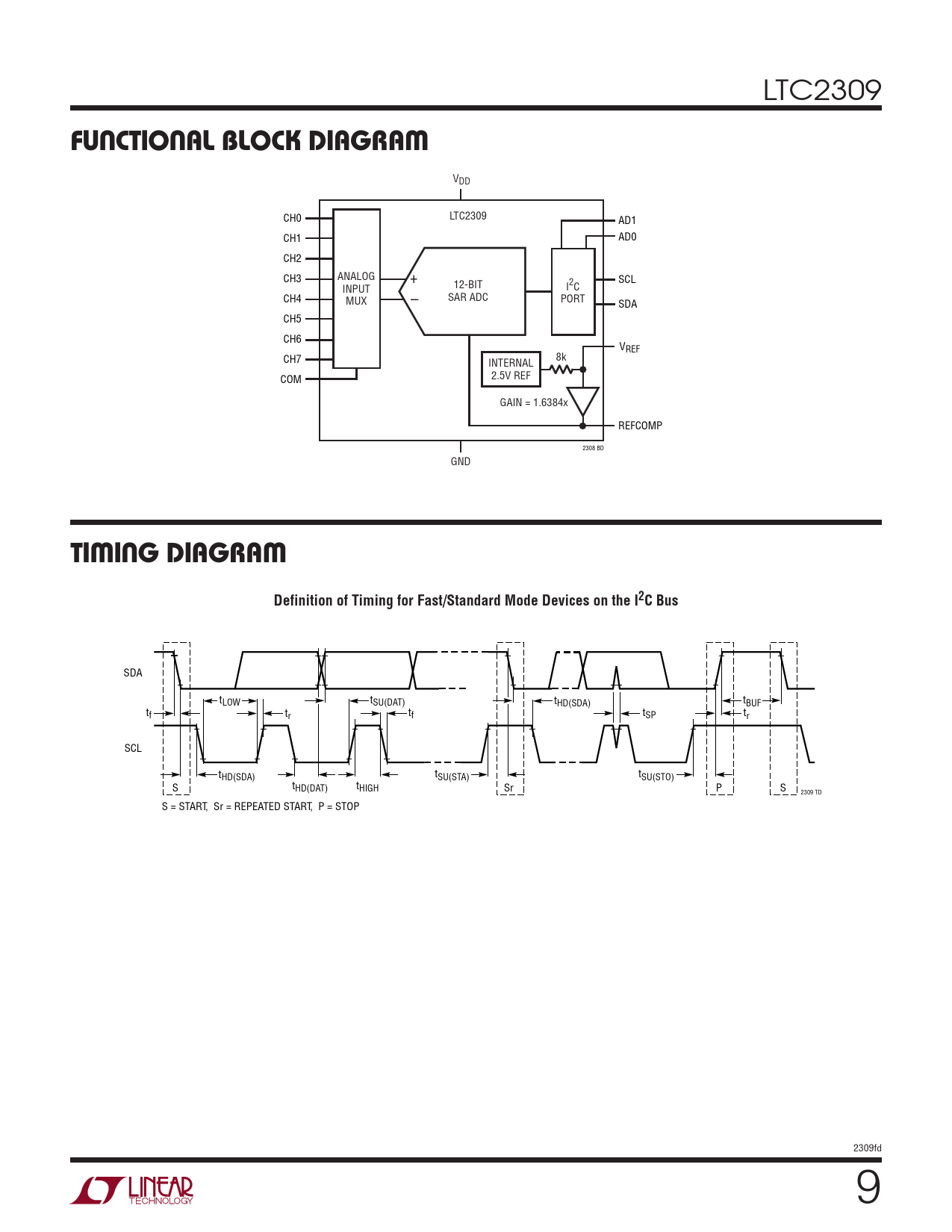

LTC2309 FunCtIOnAL BLOCK DIAGRAM VDD CH0 LTC2309 AD1 CH1 AD0 CH2 CH3 ANALOG + SCL INPUT 12-BIT I2C CH4 MUX SAR ADC – PORT SDA CH5 CH6 VREF CH7 INTERNAL 8k COM 2.5V REF GAIN = 1.6384x REFCOMP 2308 BD GND tIMInG DIAGRAM
Definition of Timing for Fast/Standard Mode Devices on the I2C Bus
SDA tLOW tSU(DAT) tHD(SDA) tBUF tf t t r tf SP tr SCL tHD(SDA) tSU(STA) tSU(STO) S tHD(DAT) tHIGH Sr P S 2309 TD S = START, Sr = REPEATED START, P = STOP 2309fd Document Outline Features Description Applications Absolute Maximum Ratings Pin Configuration Order Information CONVERTER AND MULTIPLEXER CHARACTERISTICS ANALOG INPUT DYNAMIC ACCURACY INTERNAL REFERENCE CHARACTERISTICS I2C Inputs and Digital Outputs POWER REQUIREMENTS I2C TIMING CHARACTERISTICS ADC TIMING CHARACTERISTICS Typical Performance Characteristics Pin Functions Functional Block Diagram TIMING DIAGRAM Applications Information Package Description Revision History Typical Application Related Parts
