Datasheet LTC2328-18 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 18-Bit, 1Msps, ±10.24V True Bipolar, Pseudo-Differential Input ADC with 95dB SNR |
| Pages / Page | 26 / 10 — FuncTional block DiagraM. TiMing DiagraM. Conversion Timing Using the … |
| File Format / Size | PDF / 518 Kb |
| Document Language | English |

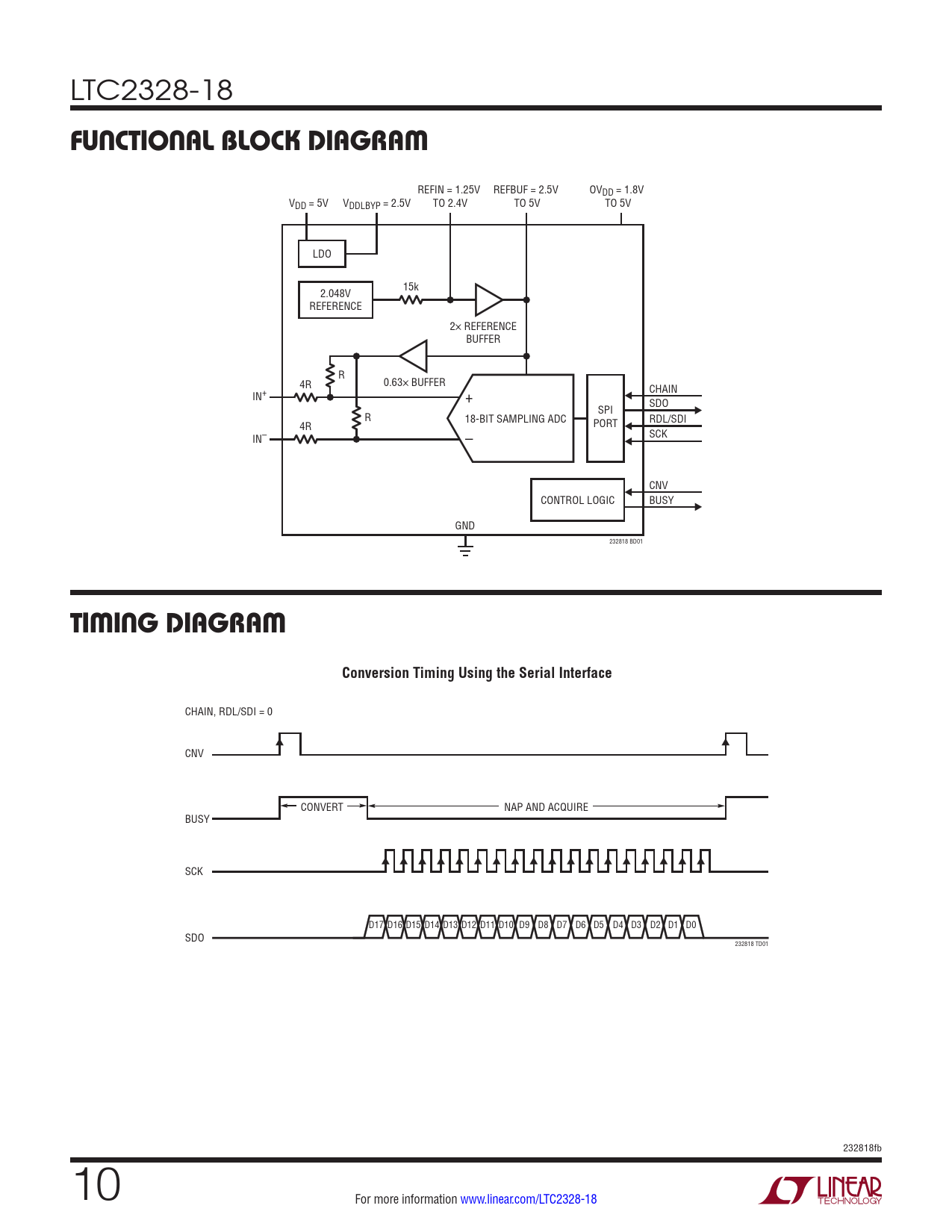

FuncTional block DiagraM. TiMing DiagraM. Conversion Timing Using the Serial Interface
Model Line for this Datasheet
Text Version of Document
LTC2328-18
FuncTional block DiagraM
REFIN = 1.25V REFBUF = 2.5V OVDD = 1.8V VDD = 5V VDDLBYP = 2.5V TO 2.4V TO 5V TO 5V LDO 2.048V 15k REFERENCE 2× REFERENCE BUFFER R 4R 0.63× BUFFER CHAIN IN+ + SDO SPI R 18-BIT SAMPLING ADC RDL/SDI PORT 4R IN– SCK – CNV CONTROL LOGIC BUSY GND 232818 BD01
TiMing DiagraM Conversion Timing Using the Serial Interface
CHAIN, RDL/SDI = 0 CNV CONVERT NAP AND ACQUIRE BUSY SCK D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 SDO 232818 TD01 232818fb 10 For more information www.linear.com/LTC2328-18 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Revision History Typical Application Related Parts
