Datasheet LTC2413 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 24-Bit No Latency ∆Σ™ ADC with Simultaneous 50Hz/60Hz Rejection |
| Pages / Page | 46 / 3 — e lecTrical characTerisTics The. denotes the specifications which apply … |
| File Format / Size | PDF / 526 Kb |
| Document Language | English |

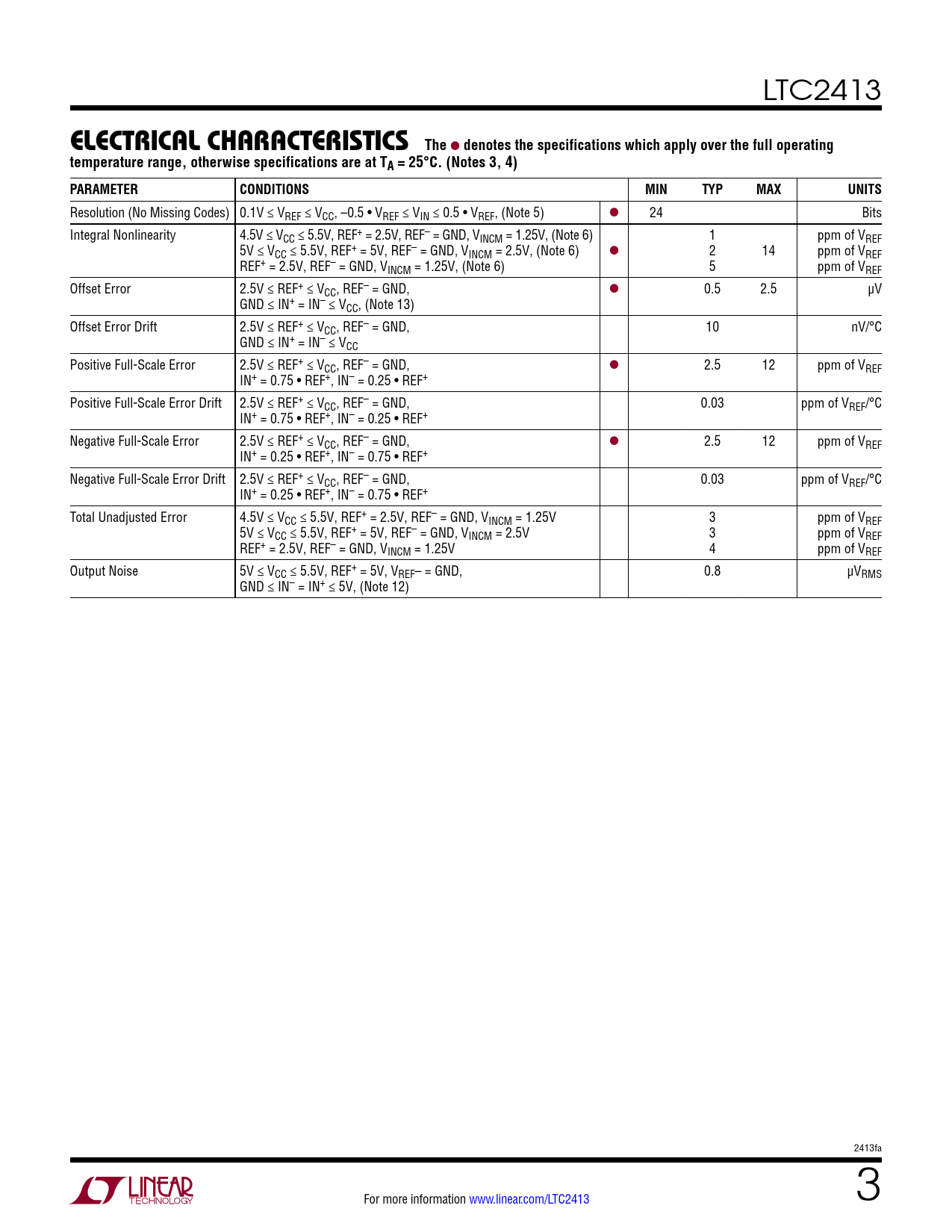

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC2413
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 3, 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) 0.1V ≤ VREF ≤ VCC, –0.5 • VREF ≤ VIN ≤ 0.5 • VREF, (Note 5) l 24 Bits Integral Nonlinearity 4.5V ≤ VCC ≤ 5.5V, REF+ = 2.5V, REF– = GND, VINCM = 1.25V, (Note 6) 1 ppm of VREF 5V ≤ VCC ≤ 5.5V, REF+ = 5V, REF– = GND, VINCM = 2.5V, (Note 6) l 2 14 ppm of VREF REF+ = 2.5V, REF– = GND, VINCM = 1.25V, (Note 6) 5 ppm of VREF Offset Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 0.5 2.5 µV GND ≤ IN+ = IN– ≤ VCC, (Note 13) Offset Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 10 nV/°C GND ≤ IN+ = IN– ≤ VCC Positive Full-Scale Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 2.5 12 ppm of VREF IN+ = 0.75 • REF+, IN– = 0.25 • REF+ Positive Full-Scale Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 0.03 ppm of VREF/°C IN+ = 0.75 • REF+, IN– = 0.25 • REF+ Negative Full-Scale Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 2.5 12 ppm of VREF IN+ = 0.25 • REF+, IN– = 0.75 • REF+ Negative Full-Scale Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 0.03 ppm of VREF/°C IN+ = 0.25 • REF+, IN– = 0.75 • REF+ Total Unadjusted Error 4.5V ≤ VCC ≤ 5.5V, REF+ = 2.5V, REF– = GND, VINCM = 1.25V 3 ppm of VREF 5V ≤ VCC ≤ 5.5V, REF+ = 5V, REF– = GND, VINCM = 2.5V 3 ppm of VREF REF+ = 2.5V, REF– = GND, VINCM = 1.25V 4 ppm of VREF Output Noise 5V ≤ VCC ≤ 5.5V, REF+ = 5V, VREF– = GND, 0.8 µVRMS GND ≤ IN– = IN+ ≤ 5V, (Note 12) 2413fa For more information www.linear.com/LTC2413 3
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 3, 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) 0.1V ≤ VREF ≤ VCC, –0.5 • VREF ≤ VIN ≤ 0.5 • VREF, (Note 5) l 24 Bits Integral Nonlinearity 4.5V ≤ VCC ≤ 5.5V, REF+ = 2.5V, REF– = GND, VINCM = 1.25V, (Note 6) 1 ppm of VREF 5V ≤ VCC ≤ 5.5V, REF+ = 5V, REF– = GND, VINCM = 2.5V, (Note 6) l 2 14 ppm of VREF REF+ = 2.5V, REF– = GND, VINCM = 1.25V, (Note 6) 5 ppm of VREF Offset Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 0.5 2.5 µV GND ≤ IN+ = IN– ≤ VCC, (Note 13) Offset Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 10 nV/°C GND ≤ IN+ = IN– ≤ VCC Positive Full-Scale Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 2.5 12 ppm of VREF IN+ = 0.75 • REF+, IN– = 0.25 • REF+ Positive Full-Scale Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 0.03 ppm of VREF/°C IN+ = 0.75 • REF+, IN– = 0.25 • REF+ Negative Full-Scale Error 2.5V ≤ REF+ ≤ VCC, REF– = GND, l 2.5 12 ppm of VREF IN+ = 0.25 • REF+, IN– = 0.75 • REF+ Negative Full-Scale Error Drift 2.5V ≤ REF+ ≤ VCC, REF– = GND, 0.03 ppm of VREF/°C IN+ = 0.25 • REF+, IN– = 0.75 • REF+ Total Unadjusted Error 4.5V ≤ VCC ≤ 5.5V, REF+ = 2.5V, REF– = GND, VINCM = 1.25V 3 ppm of VREF 5V ≤ VCC ≤ 5.5V, REF+ = 5V, REF– = GND, VINCM = 2.5V 3 ppm of VREF REF+ = 2.5V, REF– = GND, VINCM = 1.25V 4 ppm of VREF Output Noise 5V ≤ VCC ≤ 5.5V, REF+ = 5V, VREF– = GND, 0.8 µVRMS GND ≤ IN– = IN+ ≤ 5V, (Note 12) 2413fa For more information www.linear.com/LTC2413 3
