Datasheet AD7643 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 18-Bit, 1.25 MSPS PulSAR® A/D Converter |
| Pages / Page | 29 / 1 — 18-Bit, 1.25 MSPS PulSAR® ADC. AD7643. FEATURES. FUNCTIONAL BLOCK … |
| File Format / Size | PDF / 537 Kb |
| Document Language | English |
18-Bit, 1.25 MSPS PulSAR® ADC. AD7643. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Throughput: 1.25 MSPS. TEMP REFBUFIN REF REFGND
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 5 link to page 4 link to page 4 link to page 4

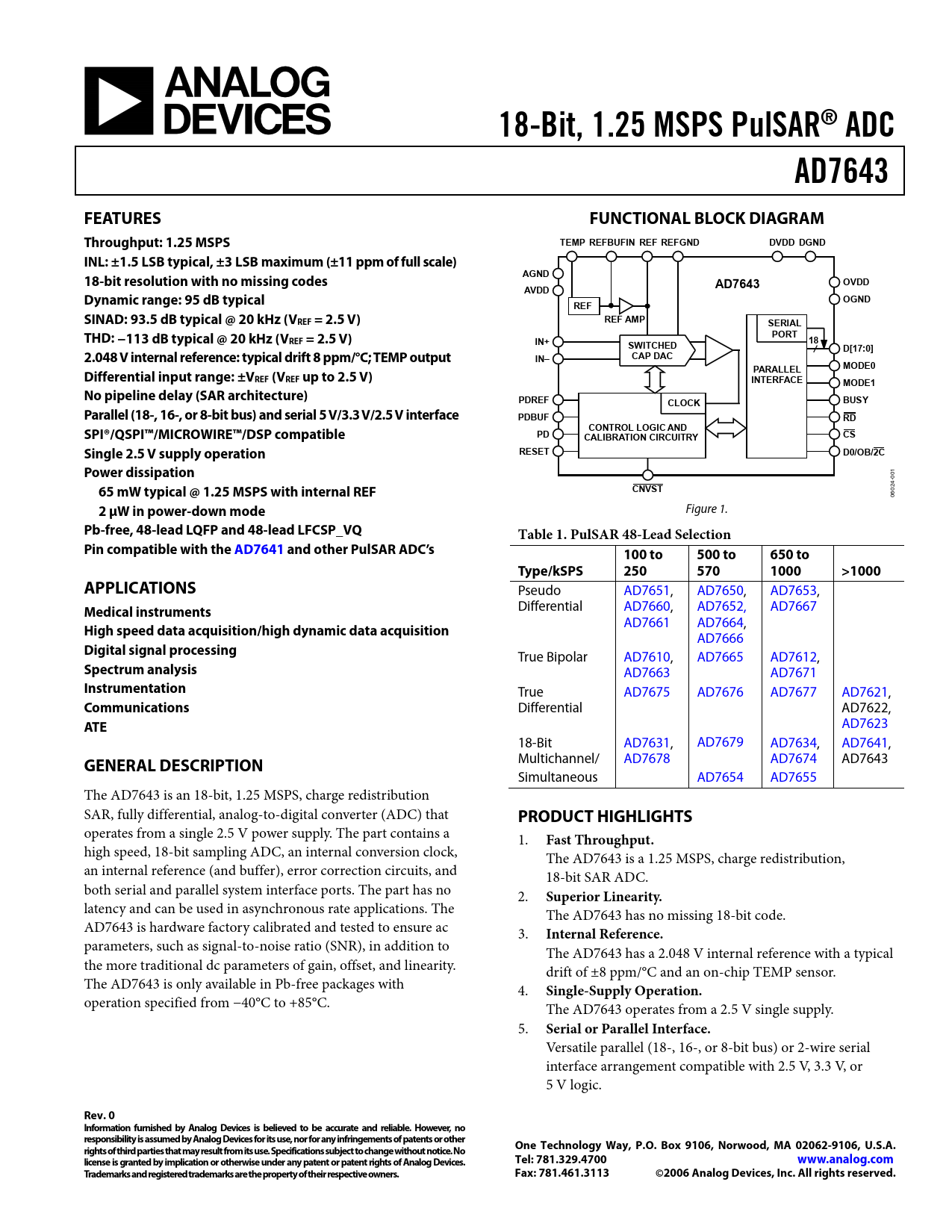

18-Bit, 1.25 MSPS PulSAR® ADC AD7643 FEATURES FUNCTIONAL BLOCK DIAGRAM Throughput: 1.25 MSPS TEMP REFBUFIN REF REFGND DVDD DGND INL: ±1.5 LSB typical, ±3 LSB maximum (±11 ppm of full scale) AGND 18-bit resolution with no missing codes AD7643 OVDD AVDD Dynamic range: 95 dB typical OGND REF SINAD: 93.5 dB typical @ 20 kHz (VREF = 2.5 V) REF AMP SERIAL THD: −113 dB t ypical @ 20 kHz (V PORT REF = 2.5 V) IN+ 18 SWITCHED D[17:0] 2.048 V internal reference: typical drift 8 ppm/°C; TEMP output IN– CAP DAC MODE0 PARALLEL Differential input range: ±VREF (VREF up to 2.5 V) INTERFACE MODE1 No pipeline delay (SAR architecture) PDREF CLOCK BUSY Parallel (18-, 16-, or 8-bit bus) and serial 5 V/3.3 V/2.5 V interface PDBUF RD CONTROL LOGIC AND SPI®/QSPI™/MICROWIRE™/DSP compatible PD CALIBRATION CIRCUITRY CS Single 2.5 V supply operation RESET D0/OB/2C Power dissipation
-001
65 mW t ypical @ 1.25 MSPS w ith internal REF CNVST
024 06
2 μW in power-down mode
Figure 1.
Pb-free, 48-lead LQFP and 48-lead LFCSP_VQ Table 1. PulSAR 48-Lead Selection Pin compatible with the AD7641 and other PulSAR ADC’s 100 to 500 to 650 to Type/kSPS 250 570 1000 >1000 APPLICATIONS
Pseudo AD7651, AD7650, AD7653,
Medical instruments
Differential AD7660, AD7652, AD7667 AD7661 AD7664,
High speed data acquisition/high dynamic data acquisition
AD7666
Digital signal processing
True Bipolar AD7610, AD7665 AD7612,
Spectrum analysis
AD7663 AD7671
Instrumentation
True AD7675 AD7676 AD7677 AD7621,
Communications
Differential AD7622,
ATE
AD7623
18-Bit AD7631, AD7679 AD7634, AD7641,
GENERAL DESCRIPTION
Multichannel/ AD7678 AD7674 AD7643 Simultaneous AD7654 AD7655 The AD7643 is an 18-bit, 1.25 MSPS, charge redistribution SAR, fully differential, analog-to-digital converter (ADC) that
PRODUCT HIGHLIGHTS
operates from a single 2.5 V power supply. The part contains a 1.
Fast Throughput.
high speed, 18-bit sampling ADC, an internal conversion clock, The AD7643 is a 1.25 MSPS, charge redistribution, an internal reference (and buffer), error correction circuits, and 18-bit SAR ADC. both serial and parallel system interface ports. The part has no 2.
Superior Linearity.
latency and can be used in asynchronous rate applications. The The AD7643 has no missing 18-bit code. AD7643 is hardware factory calibrated and tested to ensure ac 3.
Internal Reference.
parameters, such as signal-to-noise ratio (SNR), in addition to The AD7643 has a 2.048 V internal reference with a typical the more traditional dc parameters of gain, offset, and linearity. drift of ±8 ppm/°C and an on-chip TEMP sensor. The AD7643 is only available in Pb-free packages with 4.
Single-Supply Operation.
operation specified from −40°C to +85°C. The AD7643 operates from a 2.5 V single supply. 5.
Serial or Parallel Interface.
Versatile parallel (18-, 16-, or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.
