Datasheet AD7677 (Analog Devices) - 4

ManufacturerAnalog Devices
Description16-Bit, 1 LSB INL, 1 MSPS Differential PulSAR ADC

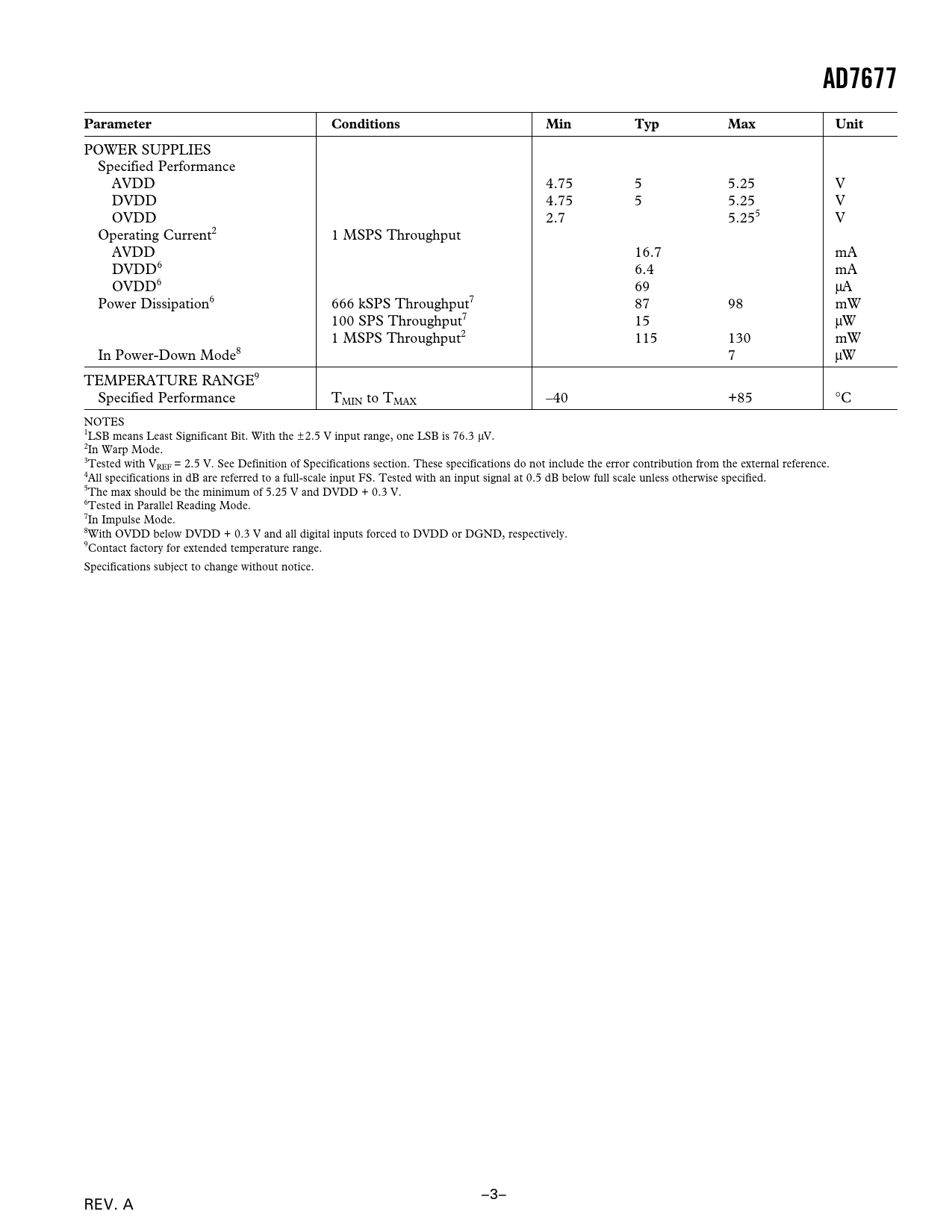

Pages / Page21 / 4 — AD7677. Parameter. Conditions. Min. Typ. Max. Unit
RevisionA
File Format / SizePDF / 384 Kb
Document LanguageEnglish

AD7677. Parameter. Conditions. Min. Typ. Max. Unit

AD7677 Parameter Conditions Min Typ Max Unit

Model Line for this Datasheet

Text Version of Document

AD7677 Parameter Conditions Min Typ Max Unit
POWER SUPPLIES Specified Performance AVDD 4.75 5 5.25 V DVDD 4.75 5 5.25 V OVDD 2.7 5.255 V Operating Current2 1 MSPS Throughput AVDD 16.7 mA DVDD6 6.4 mA OVDD6 69 µA Power Dissipation6 666 kSPS Throughput7 87 98 mW 100 SPS Throughput7 15 µW 1 MSPS Throughput2 115 130 mW In Power-Down Mode8 7 µW TEMPERATURE RANGE9 Specified Performance TMIN to TMAX –40 +85 °C NOTES 1LSB means Least Significant Bit. With the ±2.5 V input range, one LSB is 76.3 µV. 2In Warp Mode. 3Tested with VREF = 2.5 V. See Definition of Specifications section. These specifications do not include the error contribution from the external reference. 4All specifications in dB are referred to a full-scale input FS. Tested with an input signal at 0.5 dB below full scale unless otherwise specified. 5The max should be the minimum of 5.25 V and DVDD + 0.3 V. 6Tested in Parallel Reading Mode. 7In Impulse Mode. 8With OVDD below DVDD + 0.3 V and all digital inputs forced to DVDD or DGND, respectively. 9Contact factory for extended temperature range. Specifications subject to change without notice. –3– REV. A Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PulSAR Selection GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS Table I. Serial Clock Timings in Master Read after Convert ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE PIN FUNCTION DESCRIPTIONS PIN CONFIGURATION Typical Performance Characteristics CIRCUIT INFORMATION CONVERTER OPERATION Modes of Operation Transfer Functions TYPICAL CONNECTION DIAGRAM Analog Inputs Single to Differential Driver Driver Amplifier Choice Voltage Reference Input Power Supply POWER DISSIPATION CONVERSION CONTROL DIGITAL INTERFACE PARALLEL INTERFACE SERIAL INTERFACE MASTER SERIAL INTERFACE Internal Clock SLAVE SERIAL INTERFACE External Clock External Discontinuous Clock Data Read after Conversion External Clock Data Read During Conversion MICROPROCESSOR INTERFACING SPI Interface (MC68HC11) ADSP-21065L in Master Serial Interface APPLICATION HINTS Layout Evaluating the AD7677 Performance OUTLINE DIMENSIONS Revision History
