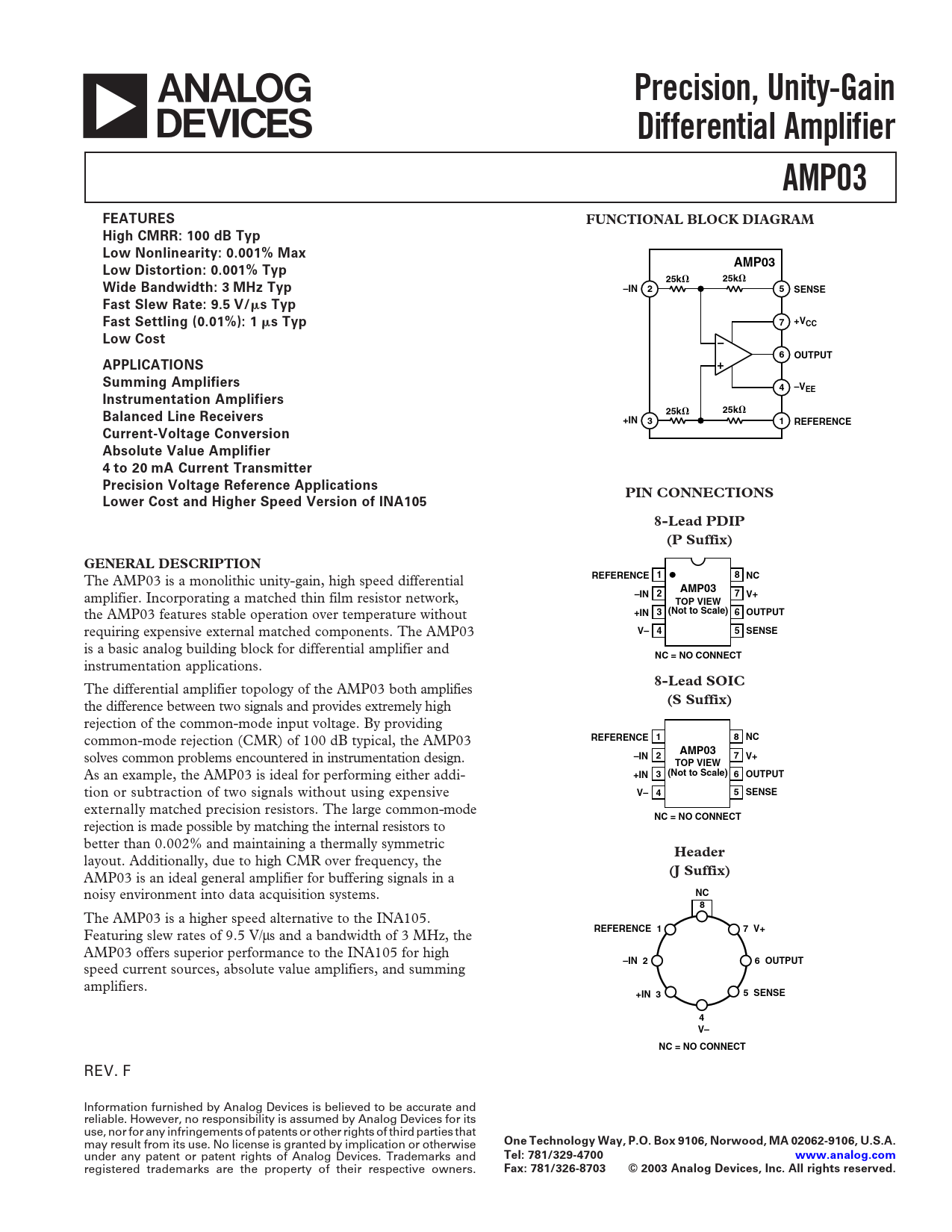

Precision, Unity-Gain. Differential Amplifier. AMP03. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet AMP03 Analog Devices, Revision: F

Text Version of Document

a
Precision, Unity-Gain Differential Amplifier AMP03 FEATURES FUNCTIONAL BLOCK DIAGRAM High CMRR: 100 dB Typ Low Nonlinearity: 0.001% Max AMP03 Low Distortion: 0.001% Typ 25k

25k

Wide Bandwidth: 3 MHz Typ –IN 2 5 SENSE Fast Slew Rate: 9.5 V/

s Typ Fast Settling (0.01%): 1

s Typ 7 +VCC Low Cost 6 OUTPUT APPLICATIONS Summing Amplifiers 4 –VEE Instrumentation Amplifiers Balanced Line Receivers 25k

25k

+IN 3 1 REFERENCE Current-Voltage Conversion Absolute Value Amplifier 4 to 20 mA Current Transmitter Precision Voltage Reference Applications PIN CONNECTIONS Lower Cost and Higher Speed Version of INA105 8-Lead PDIP (P Suffix) GENERAL DESCRIPTION
The AMP03 is a monolithic unity-gain, high speed differential
REFERENCE 1 8 NC AMP03
amplifier. Incorporating a matched thin film resistor network,
–IN 2 7 V+ TOP VIEW
the AMP03 features stable operation over temperature without
+IN 3 (Not to Scale) 6 OUTPUT
requiring expensive external matched components. The AMP03
V– 4 5 SENSE
is a basic analog building block for differential amplifier and
NC = NO CONNECT
instrumentation applications.
8-Lead SOIC
The differential amplifier topology of the AMP03 both amplifies the difference between two signals and provides extremely high
(S Suffix)
rejection of the common-mode input voltage. By providing common-mode rejection (CMR) of 100 dB typical, the AMP03
REFERENCE 1 8 NC AMP03
solves common problems encountered in instrumentation design.
–IN 2 7 V+ TOP VIEW
As an example, the AMP03 is ideal for performing either addi-
+IN 3 (Not to Scale) 6 OUTPUT
tion or subtraction of two signals without using expensive
V– 4 5 SENSE
externally matched precision resistors. The large common-mode
NC = NO CONNECT
rejection is made possible by matching the internal resistors to better than 0.002% and maintaining a thermally symmetric
Header
layout. Additionally, due to high CMR over frequency, the
(J Suffix)
AMP03 is an ideal general amplifier for buffering signals in a noisy environment into data acquisition systems.
NC 8
The AMP03 is a higher speed alternative to the INA105.
REFERENCE 1 7 V+
Featuring slew rates of 9.5 V/µs and a bandwidth of 3 MHz, the AMP03 offers superior performance to the INA105 for high
–IN 2 6 OUTPUT
speed current sources, absolute value amplifiers, and summing amplifiers.
+IN 3 5 SENSE 4 V– NC = NO CONNECT
