Datasheet AD8672-EP (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Precision Low Noise, Low Input Bias Current Dual Op Amp |
| Pages / Page | 8 / 5 — Enhanced Product. AD8672-EP. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL … |
| File Format / Size | PDF / 214 Kb |
| Document Language | English |

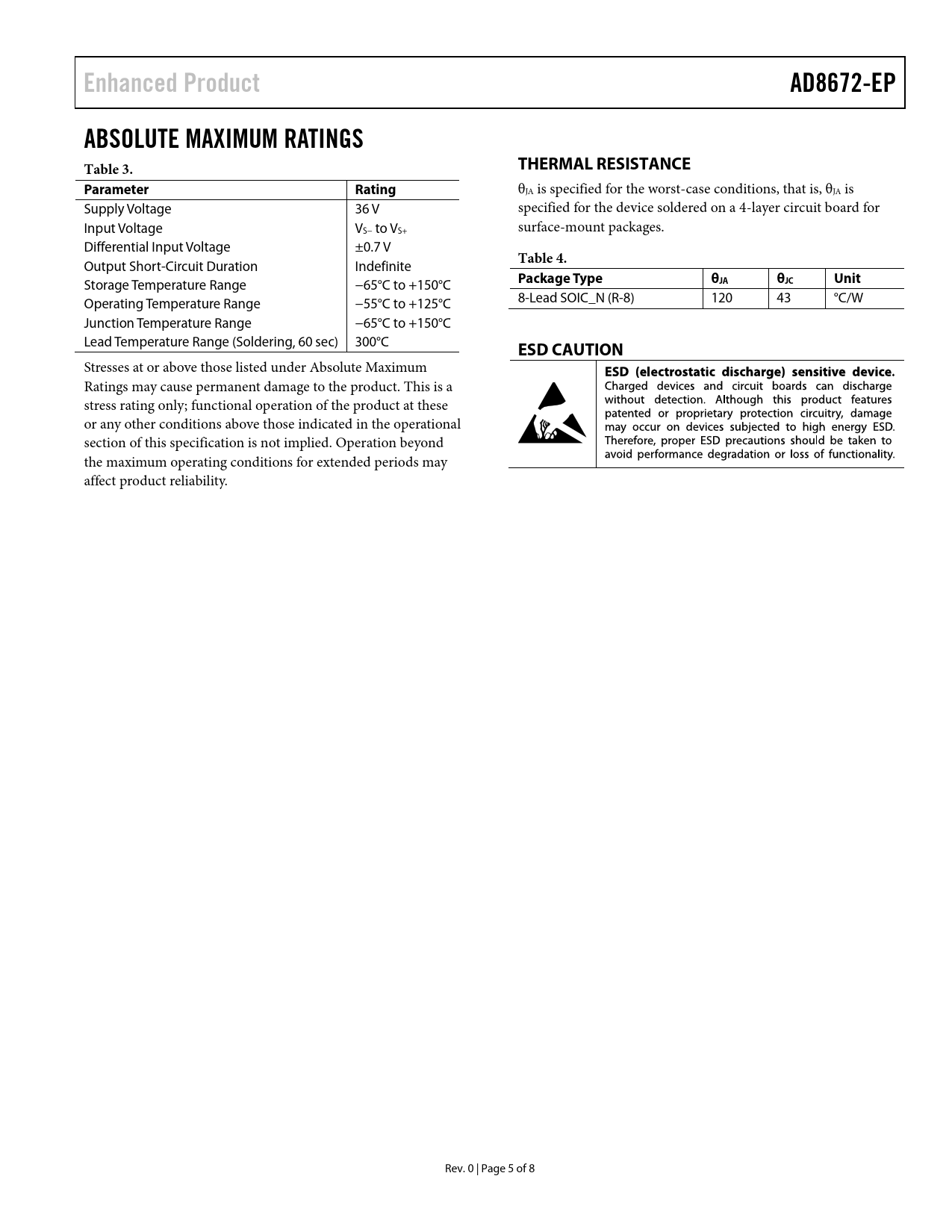

Enhanced Product. AD8672-EP. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter. Rating. Table 4. Package Type. θJA. θJC. Unit
Model Line for this Datasheet
Text Version of Document
Enhanced Product AD8672-EP ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, θJA is Supply Voltage 36 V specified for the device soldered on a 4-layer circuit board for Input Voltage VS− to VS+ surface-mount packages. Differential Input Voltage ±0.7 V Output Short-Circuit Duration Indefinite
Table 4.
Storage Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Operating Temperature Range −55°C to +125°C 8-Lead SOIC_N (R-8) 120 43 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature Range (Soldering, 60 sec) 300°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 5 of 8 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Table of Contents Revision History Specifications Electrical Characteristics, ±5 V Electrical Characteristics, ±15 V Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Charateristics Outline Dimensions Ordering Guide
θJA is specified for the worst-case conditions, that is, θJA is Supply Voltage 36 V specified for the device soldered on a 4-layer circuit board for Input Voltage VS− to VS+ surface-mount packages. Differential Input Voltage ±0.7 V Output Short-Circuit Duration Indefinite
Table 4.
Storage Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Operating Temperature Range −55°C to +125°C 8-Lead SOIC_N (R-8) 120 43 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature Range (Soldering, 60 sec) 300°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 5 of 8 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Table of Contents Revision History Specifications Electrical Characteristics, ±5 V Electrical Characteristics, ±15 V Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Charateristics Outline Dimensions Ordering Guide
