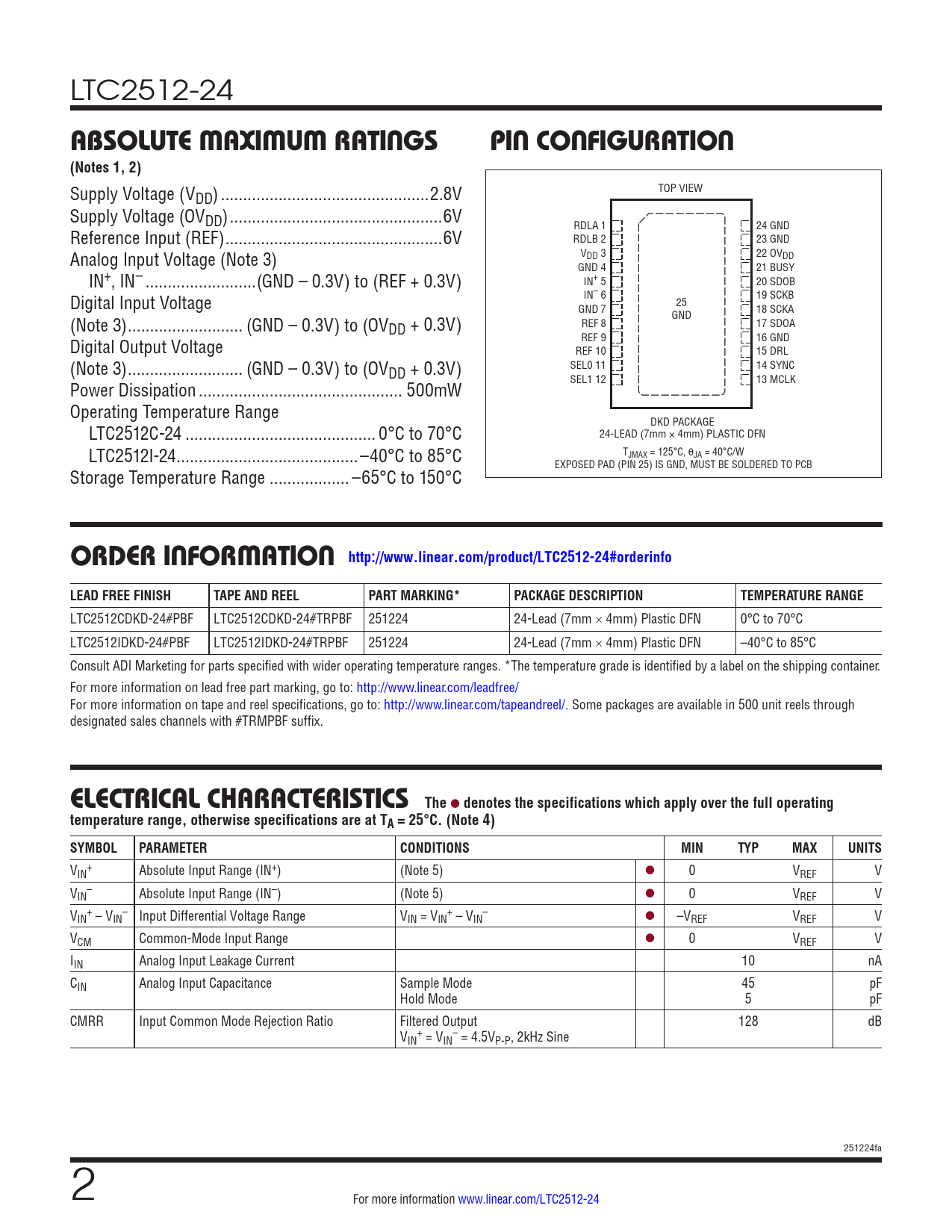

LTC2512-24 ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION
(Notes 1, 2)
Supply Voltage (V TOP VIEW DD) ...2.8V Supply Voltage (OVDD) ..6V RDLA 24 GND Reference Input (REF) ...6V 1 RDLB 2 23 GND Analog Input Voltage (Note 3) VDD 3 22 OVDD GND 4 21 BUSY IN+, IN– ...(GND – 0.3V) to (REF + 0.3V) IN+ 5 20 SDOB Digital Input Voltage IN– 6 19 SCKB 25 GND 7 18 SCKA (Note 3) .. (GND – 0.3V) to (OV GND DD + 0.3V) REF 8 17 SDOA Digital Output Voltage REF 9 16 GND REF 10 15 DRL (Note 3) .. (GND – 0.3V) to (OVDD + 0.3V) SEL0 11 14 SYNC Power Dissipation .. 500mW SEL1 12 13 MCLK Operating Temperature Range DKD PACKAGE LTC2512C-24 ... 0°C to 70°C 24-LEAD (7mm 4mm) PLASTIC DFN LTC2512I-24 ...–40°C to 85°C TJMAX = 125°C, θJA = 40°C/W EXPOSED PAD (PIN 25) IS GND, MUST BE SOLDERED TO PCB Storage Temperature Range .. –65°C to 150°C ORDER INFORMATION
http://www.linear.com/product/LTC2512-24#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2512CDKD-24#PBF LTC2512CDKD-24#TRPBF 251224 24-Lead (7mm × 4mm) Plastic DFN 0°C to 70°C LTC2512IDKD-24#PBF LTC2512IDKD-24#TRPBF 251224 24-Lead (7mm × 4mm) Plastic DFN –40°C to 85°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. ELECTRICAL CHARACTERISTICS
