Datasheet ATtiny11, ATtiny12 - Summary (Atmel) - 10
| Manufacturer | Atmel |
| Description | 8-bit AVR Microcontroller with 1K Byte Flash |
| Pages / Page | 15 / 10 — Ordering Information ATtiny11. Power Supply. Speed (MHz). Ordering Code. … |
| File Format / Size | PDF / 235 Kb |
| Document Language | English |
Ordering Information ATtiny11. Power Supply. Speed (MHz). Ordering Code. Package. Operation Range. Package Type. 8P3. 8S2. ATtiny11/12
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 10 link to page 10

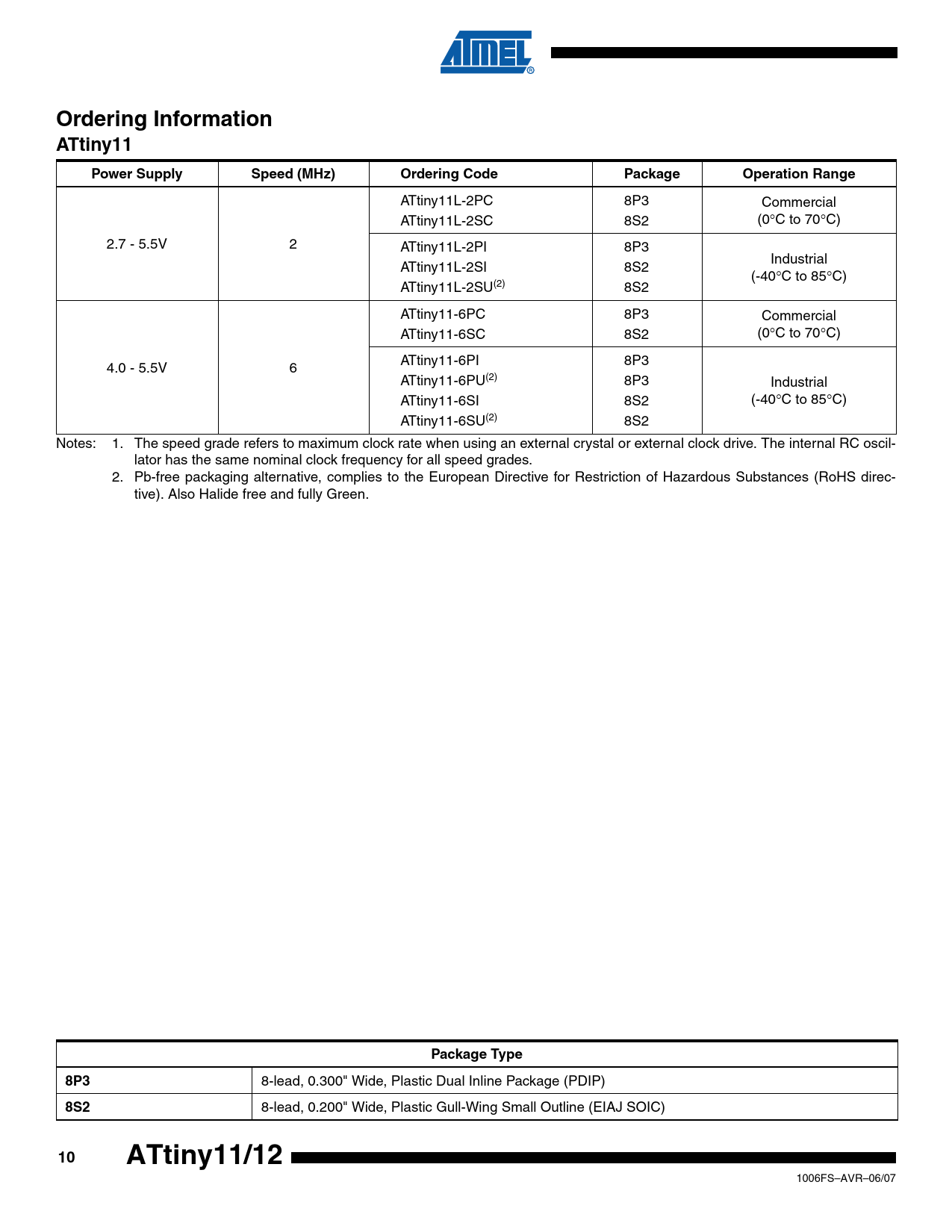

Ordering Information ATtiny11 Power Supply Speed (MHz) Ordering Code Package Operation Range
ATtiny11L-2PC 8P3 Commercial ATtiny11L-2SC 8S2 (0°C to 70°C) 2.7 - 5.5V 2 ATtiny11L-2PI 8P3 Industrial ATtiny11L-2SI 8S2 (-40°C to 85°C) ATtiny11L-2SU(2) 8S2 ATtiny11-6PC 8P3 Commercial ATtiny11-6SC 8S2 (0°C to 70°C) ATtiny11-6PI 8P3 4.0 - 5.5V 6 ATtiny11-6PU(2) 8P3 Industrial ATtiny11-6SI 8S2 (-40°C to 85°C) ATtiny11-6SU(2) 8S2 Notes: 1. The speed grade refers to maximum clock rate when using an external crystal or external clock drive. The internal RC oscil- lator has the same nominal clock frequency for all speed grades. 2. Pb-free packaging alternative, complies to the European Directive for Restriction of Hazardous Substances (RoHS direc- tive). Also Halide free and fully Green.
Package Type 8P3
8-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)
8S2
8-lead, 0.200" Wide, Plastic Gull-Wing Small Outline (EIAJ SOIC)
10 ATtiny11/12
