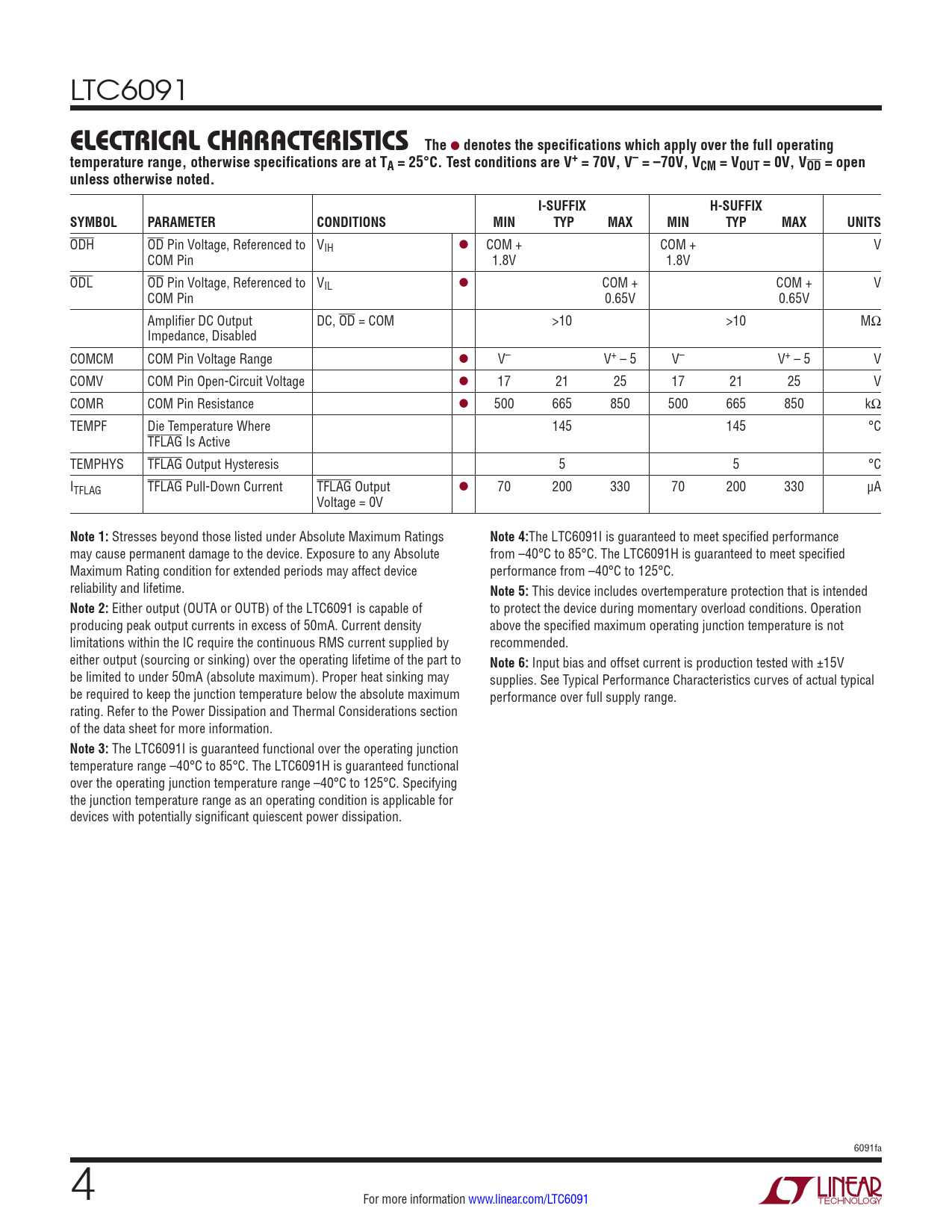

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC6091
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Test conditions are V+ = 70V, V– = –70V, VCM = VOUT = 0V, VOD = open unless otherwise noted. I-SUFFIX H-SUFFIX SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
ODH OD Pin Voltage, Referenced to VIH l COM + COM + V COM Pin 1.8V 1.8V ODL OD Pin Voltage, Referenced to VIL l COM + COM + V COM Pin 0.65V 0.65V Amplifier DC Output DC, OD = COM >10 >10 MΩ Impedance, Disabled COMCM COM Pin Voltage Range l V– V+ – 5 V– V+ – 5 V COMV COM Pin Open-Circuit Voltage l 17 21 25 17 21 25 V COMR COM Pin Resistance l 500 665 850 500 665 850 kΩ TEMPF Die Temperature Where 145 145 °C TFLAG Is Active TEMPHYS TFLAG Output Hysteresis 5 5 °C ITFLAG TFLAG Pull-Down Current TFLAG Output l 70 200 330 70 200 330 µA Voltage = 0V
