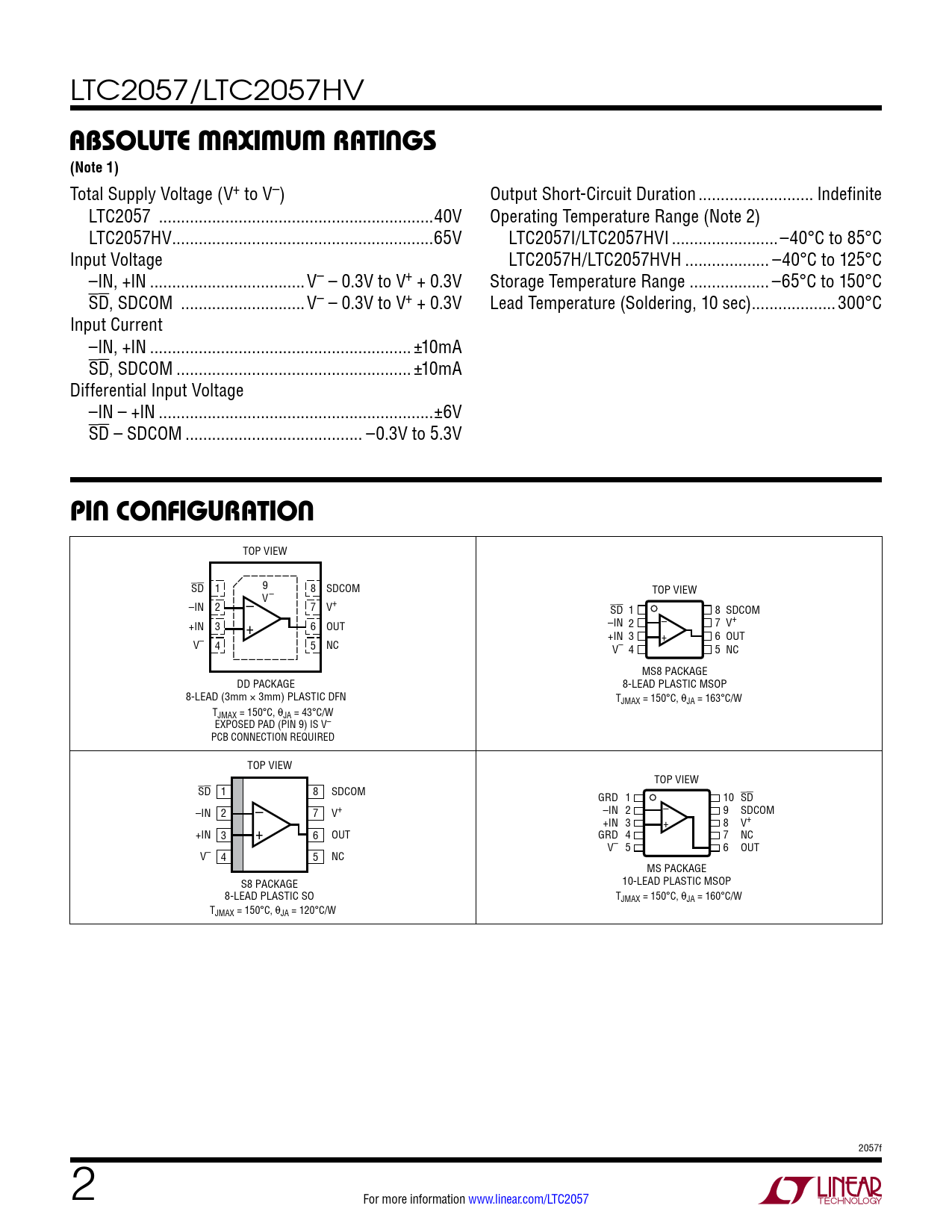

LTC2057/LTC2057HV
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) Output Short-Circuit Duration .. Indefinite LTC2057 ..40V Operating Temperature Range (Note 2) LTC2057HV ...65V LTC2057I/LTC2057HVI ..–40°C to 85°C Input Voltage LTC2057H/LTC2057HVH ... –40°C to 125°C –IN, +IN ...V– – 0.3V to V+ + 0.3V Storage Temperature Range .. –65°C to 150°C SD, SDCOM ..V– – 0.3V to V+ + 0.3V Lead Temperature (Soldering, 10 sec) ...300°C Input Current –IN, +IN ... ±10mA SD, SDCOM ... ±10mA Differential Input Voltage –IN – +IN ..±6V SD – SDCOM .. –0.3V to 5.3V
pin conFiguraTion
TOP VIEW SD 1 9 8 SDCOM TOP VIEW V– –IN 2 – 7 V+ SD 1 8 SDCOM +IN 3 6 OUT + –IN 2 – 7 V+ +IN 3 + 6 OUT V– 4 5 NC V– 4 5 NC MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 163°C/W TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 9) IS V– PCB CONNECTION REQUIRED TOP VIEW TOP VIEW SD 1 8 SDCOM GRD 1 10 SD –IN 2 – 7 V+ –IN 2 – 9 SDCOM +IN 3 + 8 V+ +IN 3 + 6 OUT GRD 4 7 NC V– 5 6 OUT V– 4 5 NC MS PACKAGE S8 PACKAGE 10-LEAD PLASTIC MSOP 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 160°C/W TJMAX = 150°C, θJA = 120°C/W 2057f 2 For more information www.linear.com/LTC2057 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
