Datasheet LTC6244 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual 50MHz, Low Noise, Rail-to-Rail, CMOS Op Amp |
| Pages / Page | 26 / 5 — ELECTRICAL CHARACTERISTICS (LTC6244C/I, LTC6244HVC/I) The |
| File Format / Size | PDF / 367 Kb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS (LTC6244C/I, LTC6244HVC/I) The
Model Line for this Datasheet
- LTC6244CDD#PBF LTC6244CDD#TRPBF LTC6244CMS8#PBF LTC6244CMS8#TRPBF LTC6244HDD#PBF LTC6244HDD#TRPBF LTC6244HMS8#PBF LTC6244HMS8#TRPBF LTC6244HVCDD#PBF LTC6244HVCDD#TRPBF LTC6244HVCMS8#PBF LTC6244HVCMS8#TRPBF LTC6244HVHDD#PBF LTC6244HVHDD#TRPBF LTC6244HVIDD#PBF LTC6244HVIDD#TRPBF LTC6244HVIMS8#PBF LTC6244HVIMS8#TRPBF LTC6244IDD#PBF LTC6244IDD#TRPBF LTC6244IMS8#PBF LTC6244IMS8#TRPBF
Text Version of Document
LTC6244

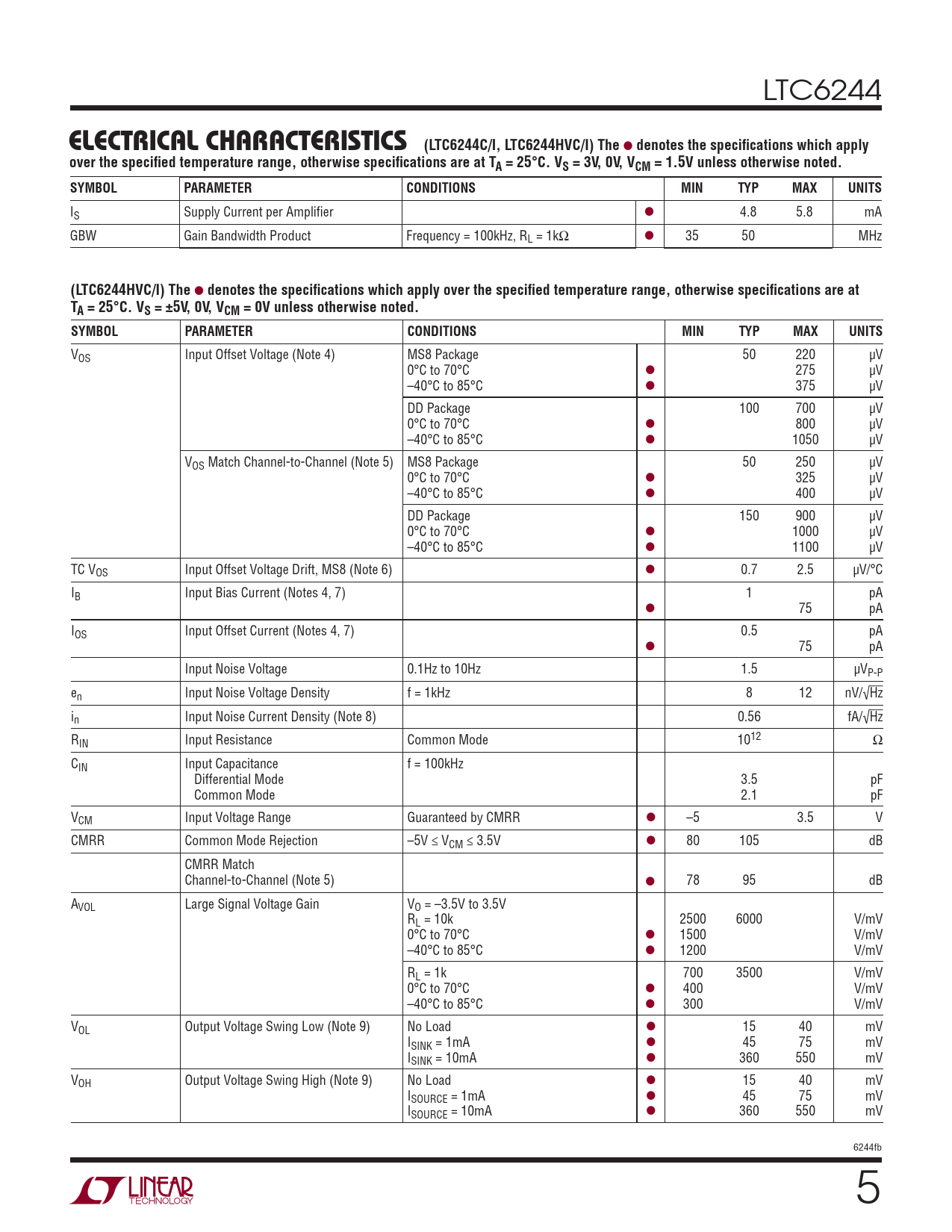

ELECTRICAL CHARACTERISTICS (LTC6244C/I, LTC6244HVC/I) The
l
denotes the specifi cations which apply over the specifi ed temperature range, otherwise specifi cations are at TA = 25°C. VS = 3V, 0V, VCM = 1.5V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
