Datasheet LTC2051, LTC2052 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Dual/Quad Zero-Drift Operational Amplifiers |
| Pages / Page | 12 / 4 — AVAILABLE OPTIO S. PART NUMBER. AMPS/PACKAGE. SPECIFIED TEMP RANGE. … |
| File Format / Size | PDF / 148 Kb |
| Document Language | English |
AVAILABLE OPTIO S. PART NUMBER. AMPS/PACKAGE. SPECIFIED TEMP RANGE. SPECIFIED VOLTAGE. PACKAGE
Model Line for this Datasheet
- LTC2051CDD#PBF LTC2051CDD#TRPBF LTC2051CMS10#PBF LTC2051CMS10#TRPBF LTC2051CMS8#PBF LTC2051CMS8#TRPBF LTC2051CS8#PBF LTC2051CS8#TRPBF LTC2051HMS8#PBF LTC2051HMS8#TRPBF LTC2051HS8#PBF LTC2051HS8#TRPBF LTC2051HVCDD#PBF LTC2051HVCDD#TRPBF LTC2051HVCMS10#PBF LTC2051HVCMS10#TRPBF LTC2051HVCMS8#PBF LTC2051HVCMS8#TRPBF LTC2051HVCS8#PBF LTC2051HVCS8#TRPBF LTC2051HVHMS8#PBF LTC2051HVHMS8#TRPBF LTC2051HVHS8#PBF LTC2051HVHS8#TRPBF LTC2051HVIDD#PBF LTC2051HVIDD#TRPBF LTC2051HVIMS10#PBF LTC2051HVIMS10#TRPBF LTC2051HVIMS8#PBF LTC2051HVIMS8#TRPBF LTC2051HVIS8#PBF LTC2051HVIS8#TRPBF LTC2051IDD#PBF LTC2051IDD#TRPBF LTC2051IMS10#PBF LTC2051IMS10#TRPBF LTC2051IMS8#PBF LTC2051IMS8#TRPBF LTC2051IS8#PBF LTC2051IS8#TRPBF
- LTC2052CGN#PBF LTC2052CGN#TRPBF LTC2052CS#PBF LTC2052CS#TRPBF LTC2052HGN#PBF LTC2052HGN#TRPBF LTC2052HS#PBF LTC2052HS#TRPBF LTC2052HVCGN#PBF LTC2052HVCGN#TRPBF LTC2052HVCS#PBF LTC2052HVCS#TRPBF LTC2052HVHGN#PBF LTC2052HVHGN#TRPBF LTC2052HVHS#PBF LTC2052HVHS#TRPBF LTC2052HVIGN#PBF LTC2052HVIGN#TRPBF LTC2052HVIS#PBF LTC2052HVIS#TRPBF LTC2052IGN#PBF LTC2052IGN#TRPBF LTC2052IS#PBF LTC2052IS#TRPBF
Text Version of Document
LTC2051/LTC2052

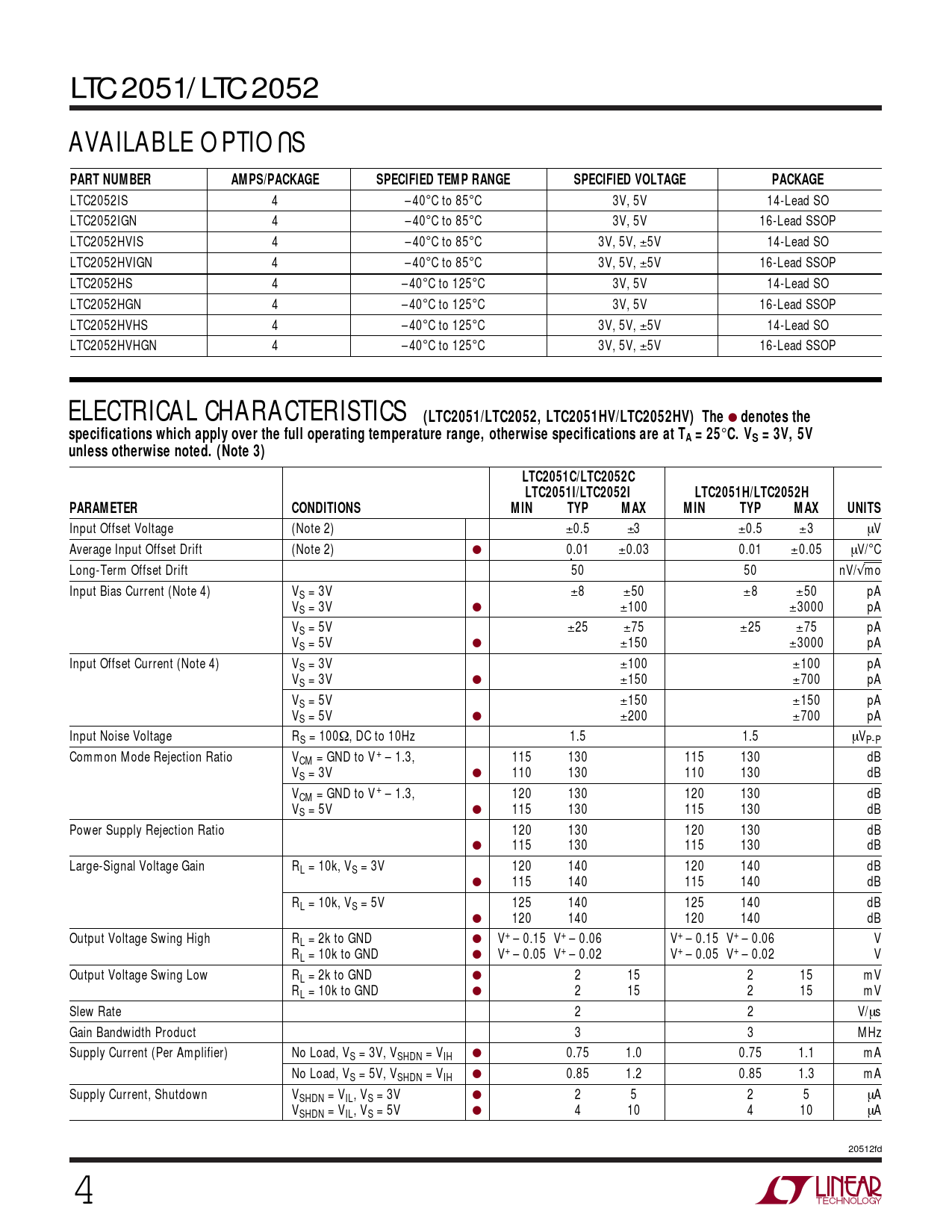

U AVAILABLE OPTIO S PART NUMBER AMPS/PACKAGE SPECIFIED TEMP RANGE SPECIFIED VOLTAGE PACKAGE
LTC2052IS 4 –40°C to 85°C 3V, 5V 14-Lead SO LTC2052IGN 4 –40°C to 85°C 3V, 5V 16-Lead SSOP LTC2052HVIS 4 –40°C to 85°C 3V, 5V, ±5V 14-Lead SO LTC2052HVIGN 4 –40°C to 85°C 3V, 5V, ±5V 16-Lead SSOP LTC2052HS 4 –40°C to 125°C 3V, 5V 14-Lead SO LTC2052HGN 4 –40°C to 125°C 3V, 5V 16-Lead SSOP LTC2052HVHS 4 –40°C to 125°C 3V, 5V, ±5V 14-Lead SO LTC2052HVHGN 4 –40°C to 125°C 3V, 5V, ±5V 16-Lead SSOP
ELECTRICAL CHARACTERISTICS (LTC2051/LTC2052, LTC2051HV/LTC2052HV) The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 3V, 5V unless otherwise noted. (Note 3) LTC2051C/LTC2052C LTC2051I/LTC2052I LTC2051H/LTC2052H PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage (Note 2) ±0.5 ±3 ±0.5 ±3 μV Average Input Offset Drift (Note 2) ● 0.01 ±0.03 0.01 ±0.05 μV/°C Long-Term Offset Drift 50 50 nV/√mo Input Bias Current (Note 4) VS = 3V ±8 ±50 ±8 ±50 pA VS = 3V ● ±100 ±3000 pA VS = 5V ±25 ±75 ±25 ±75 pA VS = 5V ● ±150 ±3000 pA Input Offset Current (Note 4) VS = 3V ±100 ±100 pA VS = 3V ● ±150 ±700 pA VS = 5V ±150 ±150 pA VS = 5V ● ±200 ±700 pA Input Noise Voltage RS = 100Ω, DC to 10Hz 1.5 1.5 μVP-P Common Mode Rejection Ratio VCM = GND to V+ – 1.3, 115 130 115 130 dB VS = 3V ● 110 130 110 130 dB VCM = GND to V+ – 1.3, 120 130 120 130 dB VS = 5V ● 115 130 115 130 dB Power Supply Rejection Ratio 120 130 120 130 dB ● 115 130 115 130 dB Large-Signal Voltage Gain RL = 10k, VS = 3V 120 140 120 140 dB ● 115 140 115 140 dB RL = 10k, VS = 5V 125 140 125 140 dB ● 120 140 120 140 dB Output Voltage Swing High RL = 2k to GND ● V+ – 0.15 V+ – 0.06 V+ – 0.15 V+ – 0.06 V RL = 10k to GND ● V+ – 0.05 V+ – 0.02 V+ – 0.05 V+ – 0.02 V Output Voltage Swing Low RL = 2k to GND ● 2 15 2 15 mV RL = 10k to GND ● 2 15 2 15 mV Slew Rate 2 2 V/μs Gain Bandwidth Product 3 3 MHz Supply Current (Per Amplifier) No Load, VS = 3V, VSHDN = VIH ● 0.75 1.0 0.75 1.1 mA No Load, VS = 5V, VSHDN = VIH ● 0.85 1.2 0.85 1.3 mA Supply Current, Shutdown VSHDN = VIL, VS = 3V ● 2 5 2 5 μA VSHDN = VIL, VS = 5V ● 4 10 4 10 μA 20512fd 4
U AVAILABLE OPTIO S PART NUMBER AMPS/PACKAGE SPECIFIED TEMP RANGE SPECIFIED VOLTAGE PACKAGE
LTC2052IS 4 –40°C to 85°C 3V, 5V 14-Lead SO LTC2052IGN 4 –40°C to 85°C 3V, 5V 16-Lead SSOP LTC2052HVIS 4 –40°C to 85°C 3V, 5V, ±5V 14-Lead SO LTC2052HVIGN 4 –40°C to 85°C 3V, 5V, ±5V 16-Lead SSOP LTC2052HS 4 –40°C to 125°C 3V, 5V 14-Lead SO LTC2052HGN 4 –40°C to 125°C 3V, 5V 16-Lead SSOP LTC2052HVHS 4 –40°C to 125°C 3V, 5V, ±5V 14-Lead SO LTC2052HVHGN 4 –40°C to 125°C 3V, 5V, ±5V 16-Lead SSOP
ELECTRICAL CHARACTERISTICS (LTC2051/LTC2052, LTC2051HV/LTC2052HV) The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 3V, 5V unless otherwise noted. (Note 3) LTC2051C/LTC2052C LTC2051I/LTC2052I LTC2051H/LTC2052H PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage (Note 2) ±0.5 ±3 ±0.5 ±3 μV Average Input Offset Drift (Note 2) ● 0.01 ±0.03 0.01 ±0.05 μV/°C Long-Term Offset Drift 50 50 nV/√mo Input Bias Current (Note 4) VS = 3V ±8 ±50 ±8 ±50 pA VS = 3V ● ±100 ±3000 pA VS = 5V ±25 ±75 ±25 ±75 pA VS = 5V ● ±150 ±3000 pA Input Offset Current (Note 4) VS = 3V ±100 ±100 pA VS = 3V ● ±150 ±700 pA VS = 5V ±150 ±150 pA VS = 5V ● ±200 ±700 pA Input Noise Voltage RS = 100Ω, DC to 10Hz 1.5 1.5 μVP-P Common Mode Rejection Ratio VCM = GND to V+ – 1.3, 115 130 115 130 dB VS = 3V ● 110 130 110 130 dB VCM = GND to V+ – 1.3, 120 130 120 130 dB VS = 5V ● 115 130 115 130 dB Power Supply Rejection Ratio 120 130 120 130 dB ● 115 130 115 130 dB Large-Signal Voltage Gain RL = 10k, VS = 3V 120 140 120 140 dB ● 115 140 115 140 dB RL = 10k, VS = 5V 125 140 125 140 dB ● 120 140 120 140 dB Output Voltage Swing High RL = 2k to GND ● V+ – 0.15 V+ – 0.06 V+ – 0.15 V+ – 0.06 V RL = 10k to GND ● V+ – 0.05 V+ – 0.02 V+ – 0.05 V+ – 0.02 V Output Voltage Swing Low RL = 2k to GND ● 2 15 2 15 mV RL = 10k to GND ● 2 15 2 15 mV Slew Rate 2 2 V/μs Gain Bandwidth Product 3 3 MHz Supply Current (Per Amplifier) No Load, VS = 3V, VSHDN = VIH ● 0.75 1.0 0.75 1.1 mA No Load, VS = 5V, VSHDN = VIH ● 0.85 1.2 0.85 1.3 mA Supply Current, Shutdown VSHDN = VIL, VS = 3V ● 2 5 2 5 μA VSHDN = VIL, VS = 5V ● 4 10 4 10 μA 20512fd 4
