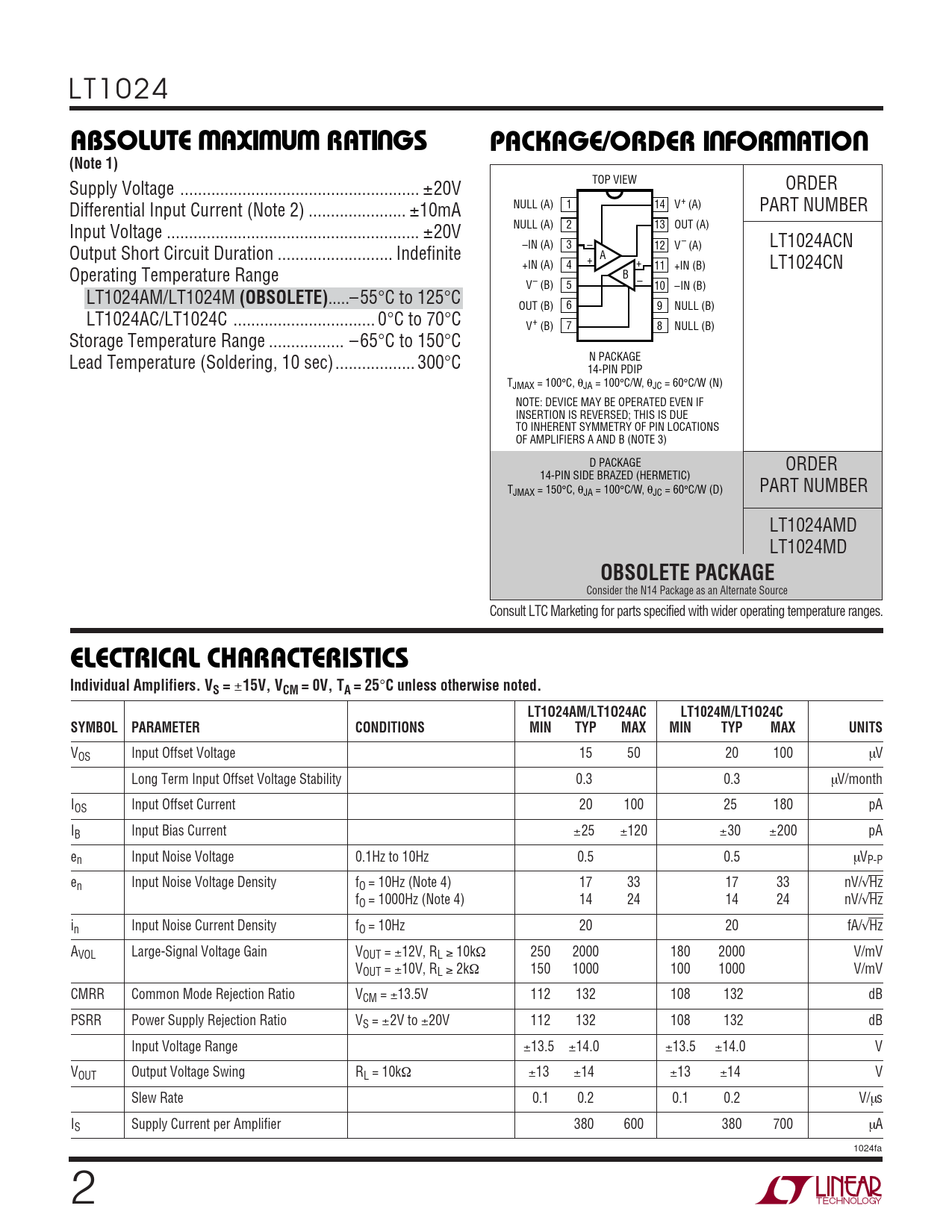

ABSOLUTE AXI U RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). (OBSOLETE). OBSOLETE PACKAGE
Model Line for this Datasheet
Text Version of Document
L T1 0 2 4
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
TOP VIEW ORDER Supply Voltage .. ±20V NULL (A) 1 14 V+ (A) PART NUMBER Differential Input Current (Note 2) .. ±10mA NULL (A) 2 13 OUT (A) Input Voltage ... ±20V –IN (A) 3 – 12 V – (A) LT1024ACN Output Short Circuit Duration .. Indefinite + A +IN (A) 4 + 11 +IN (B) LT1024CN B Operating Temperature Range V– (B) 5 – 10 –IN (B) LT1024AM/LT1024M
(OBSOLETE)
...– 55°C to 125°C OUT (B) 6 9 NULL (B) LT1024AC/LT1024C .. 0°C to 70°C V+ (B) 7 8 NULL (B) Storage Temperature Range ... – 65°C to 150°C N PACKAGE Lead Temperature (Soldering, 10 sec).. 300°C 14-PIN PDIP TJMAX = 100°C, θJA = 100°C/W, θJC = 60°C/W (N) NOTE: DEVICE MAY BE OPERATED EVEN IF INSERTION IS REVERSED; THIS IS DUE TO INHERENT SYMMETRY OF PIN LOCATIONS OF AMPLIFIERS A AND B (NOTE 3) D PACKAGE ORDER 14-PIN SIDE BRAZED (HERMETIC) T PART NUMBER JMAX = 150°C, θJA = 100°C/W, θJC = 60°C/W (D) LT1024AMD LT1024MD
OBSOLETE PACKAGE
Consider the N14 Package as an Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS Individual Amplifiers. VS =
±
15V, VCM = 0V, TA = 25
°
C unless otherwise noted. LT1O24AM/LT1O24AC LT1024M/LT1O24C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 15 50 20 100 µV Long Term Input Offset Voltage Stability 0.3 0.3 µV/month IOS Input Offset Current 20 100 25 180 pA IB Input Bias Current ±25 ±120 ±30 ±200 pA en Input Noise Voltage 0.1Hz to
10Hz 0.5 0.5 µVP-P en Input Noise Voltage Density fO = 10Hz (Note 4) 17 33 17 33 nV/√Hz fO = 1000Hz (Note 4) 14 24 14 24 nV/√Hz in Input Noise Current Density fO = 10Hz 20 20 fA/√Hz AVOL Large-Signal Voltage Gain VOUT = ±12V, RL ≥ 10kΩ 250 2000 180 2000 V/mV VOUT = ±10V, RL ≥ 2kΩ 150 1000 100 1000 V/mV CMRR Common Mode Rejection Ratio VCM = ±13.5V 112 132 108 132 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±20V 112 132 108 132 dB Input Voltage Range ±13.5 ±14.0 ±13.5 ±14.0 V VOUT Output Voltage Swing RL = 10kΩ ±13 ±14 ±13 ±14 V Slew Rate 0.1 0.2 0.1 0.2 V/µs IS Supply Current per Amplifier 380 600 380 700 µA 1024fa 2
