LT6300

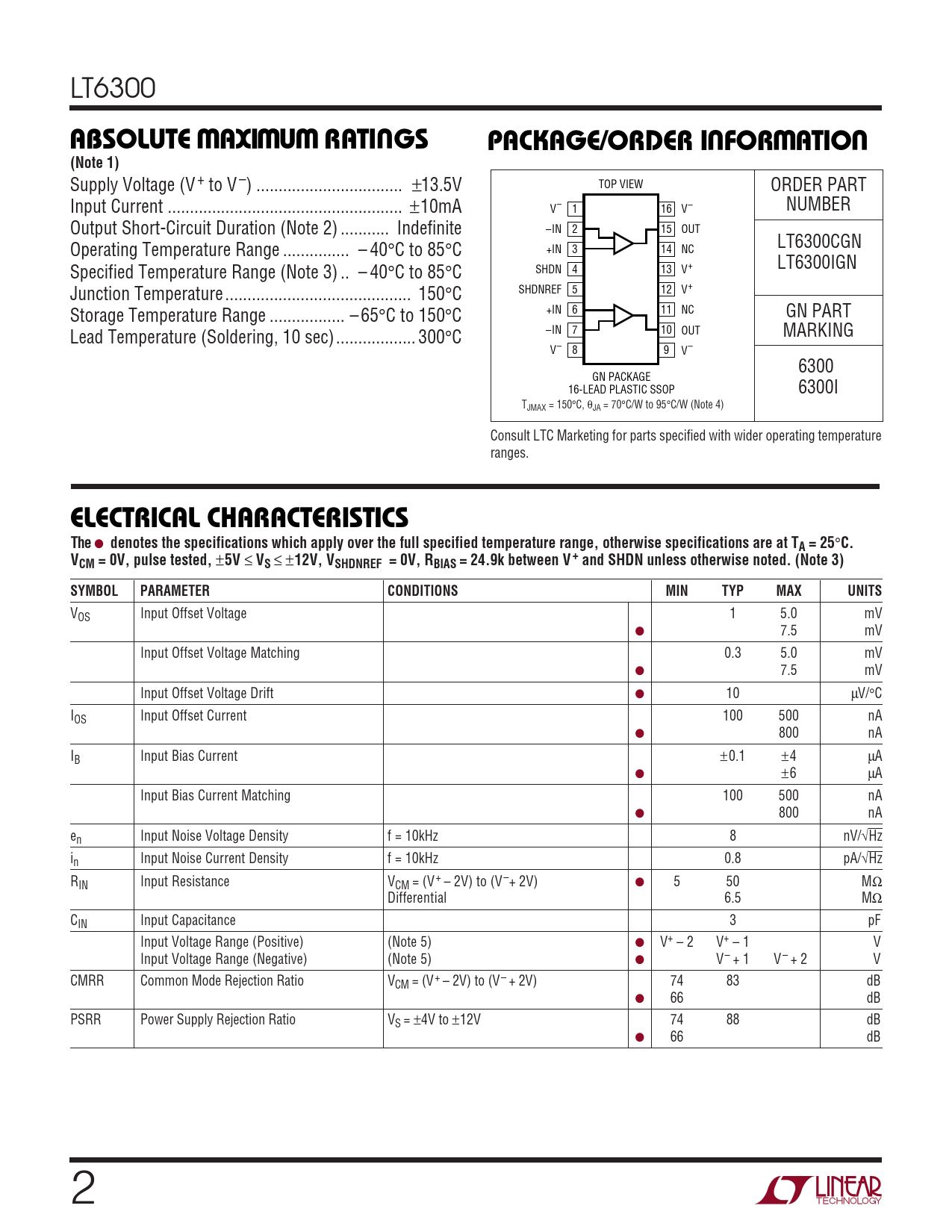

W W W U U W U ABSOLUTE MAXIMUM RATINGS PACKAGE/ORDER INFORMATION (Note 1)
Supply Voltage (V + to V –) ... ±13.5V TOP VIEW ORDER PART Input Current ... ±10mA V– 1 16 V– NUMBER Output Short-Circuit Duration (Note 2) ... Indefinite –IN 2 15 OUT LT6300CGN Operating Temperature Range ... – 40°C to 85°C +IN 3 14 NC LT6300IGN Specified Temperature Range (Note 3) .. – 40°C to 85°C SHDN 4 13 V+ Junction Temperature .. 150°C SHDNREF 5 12 V+ Storage Temperature Range ... – 65°C to 150°C +IN 6 11 NC GN PART Lead Temperature (Soldering, 10 sec).. 300°C –IN 7 10 OUT MARKING V– 8 9 V– 6300 GN PACKAGE 16-LEAD PLASTIC SSOP 6300I TJMAX = 150°C, θJA = 70°C/W to 95°C/W (Note 4) Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The

denotes the specifications which apply over the full specified temperature range, otherwise specifications are at TA = 25
°
C. VCM = 0V, pulse tested,
±
5V

VS


±
12V, VSHDNREF = 0V, RBIAS = 24.9k between V+ and SHDN unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 1 5.0 mV ● 7.5 mV Input Offset Voltage Matching 0.3 5.0 mV ● 7.5 mV Input Offset Voltage Drift ● 10 µV/°C IOS Input Offset Current 100 500 nA ● 800 nA IB Input Bias Current ±0.1 ±4 µA ● ±6 µA Input Bias Current Matching 100 500 nA ● 800 nA en Input Noise Voltage Density f = 10kHz 8 nV/√Hz in Input Noise Current Density f = 10kHz 0.8 pA/√Hz RIN Input Resistance VCM = (V+ – 2V) to (V–+ 2V) ● 5 50 MΩ Differential 6.5 MΩ CIN Input Capacitance 3 pF Input Voltage Range (Positive) (Note 5) ● V+ – 2 V+ – 1 V Input Voltage Range (Negative) (Note 5) ● V– + 1 V– + 2 V CMRR Common Mode Rejection Ratio VCM = (V+ – 2V) to (V– + 2V) 74 83 dB ● 66 dB PSRR Power Supply Rejection Ratio VS = ±4V to ±12V 74 88 dB ● 66 dB 2
