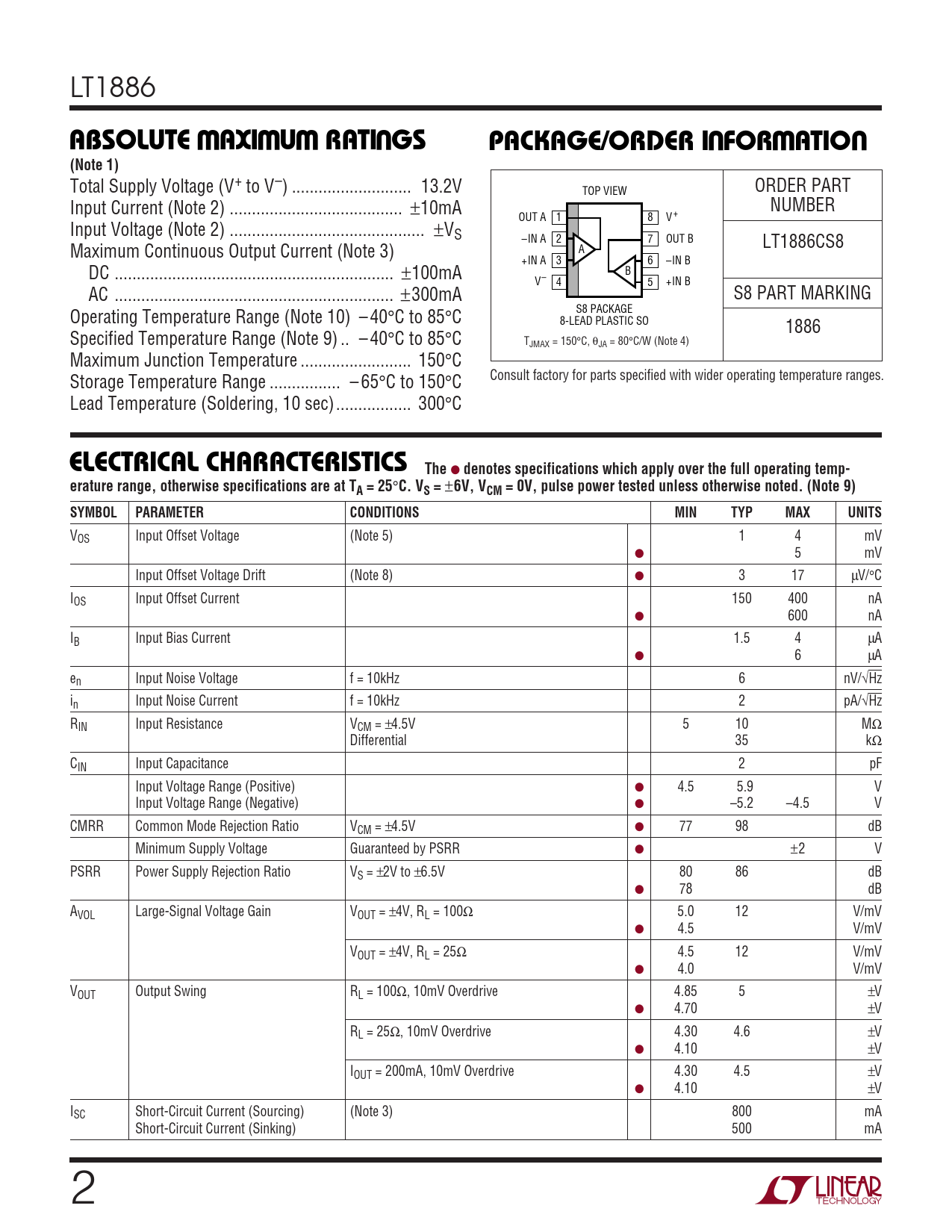

LT1886
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
Total Supply Voltage (V+ to V–) ... 13.2V TOP VIEW ORDER PART Input Current (Note 2) ... NUMBER ±10mA OUT A 1 8 V + Input Voltage (Note 2) .. ±VS –IN A 2 7 OUT B LT1886CS8 A Maximum Continuous Output Current (Note 3) +IN A 3 6 –IN B B DC ... ±100mA V– 4 5 +IN B AC ... ±300mA S8 PART MARKING S8 PACKAGE Operating Temperature Range (Note 10) – 40°C to 85°C 8-LEAD PLASTIC SO 1886 Specified Temperature Range (Note 9) .. – 40°C to 85°C TJMAX = 150°C, θJA = 80°C/W (Note 4) Maximum Junction Temperature ... 150°C Storage Temperature Range .. – 65°C to 150°C Consult factory for parts specified with wider operating temperature ranges. Lead Temperature (Soldering, 10 sec)... 300°C
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temp- erature range, otherwise specifications are at TA = 25
°
C. VS =
±
6V, VCM = 0V, pulse power tested unless otherwise noted. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 5) 1 4 mV ● 5 mV Input Offset Voltage Drift (Note 8) ● 3 17 µV/°C IOS Input Offset Current 150 400 nA ● 600 nA IB Input Bias Current 1.5 4 µA ● 6 µA en Input Noise Voltage f = 10kHz 6 nV/√Hz in Input Noise Current f = 10kHz 2 pA/√Hz RIN Input Resistance VCM = ±4.5V 5 10 MΩ Differential 35 kΩ CIN Input Capacitance 2 pF Input Voltage Range (Positive) ● 4.5 5.9 V Input Voltage Range (Negative) ● –5.2 –4.5 V CMRR Common Mode Rejection Ratio VCM = ±4.5V ● 77 98 dB Minimum Supply Voltage Guaranteed by PSRR ● ±2 V PSRR Power Supply Rejection Ratio VS = ±2V to ±6.5V 80 86 dB ● 78 dB AVOL Large-Signal Voltage Gain VOUT = ±4V, RL = 100Ω 5.0 12 V/mV ● 4.5 V/mV VOUT = ±4V, RL = 25Ω 4.5 12 V/mV ● 4.0 V/mV VOUT Output Swing RL = 100Ω, 10mV Overdrive 4.85 5 ±V ● 4.70 ±V RL = 25Ω, 10mV Overdrive 4.30 4.6 ±V ● 4.10 ±V IOUT = 200mA, 10mV Overdrive 4.30 4.5 ±V ● 4.10 ±V ISC Short-Circuit Current (Sourcing) (Note 3) 800 mA Short-Circuit Current (Sinking) 500 mA 2
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
Total Supply Voltage (V+ to V–) ... 13.2V TOP VIEW ORDER PART Input Current (Note 2) ... NUMBER ±10mA OUT A 1 8 V + Input Voltage (Note 2) .. ±VS –IN A 2 7 OUT B LT1886CS8 A Maximum Continuous Output Current (Note 3) +IN A 3 6 –IN B B DC ... ±100mA V– 4 5 +IN B AC ... ±300mA S8 PART MARKING S8 PACKAGE Operating Temperature Range (Note 10) – 40°C to 85°C 8-LEAD PLASTIC SO 1886 Specified Temperature Range (Note 9) .. – 40°C to 85°C TJMAX = 150°C, θJA = 80°C/W (Note 4) Maximum Junction Temperature ... 150°C Storage Temperature Range .. – 65°C to 150°C Consult factory for parts specified with wider operating temperature ranges. Lead Temperature (Soldering, 10 sec)... 300°C
