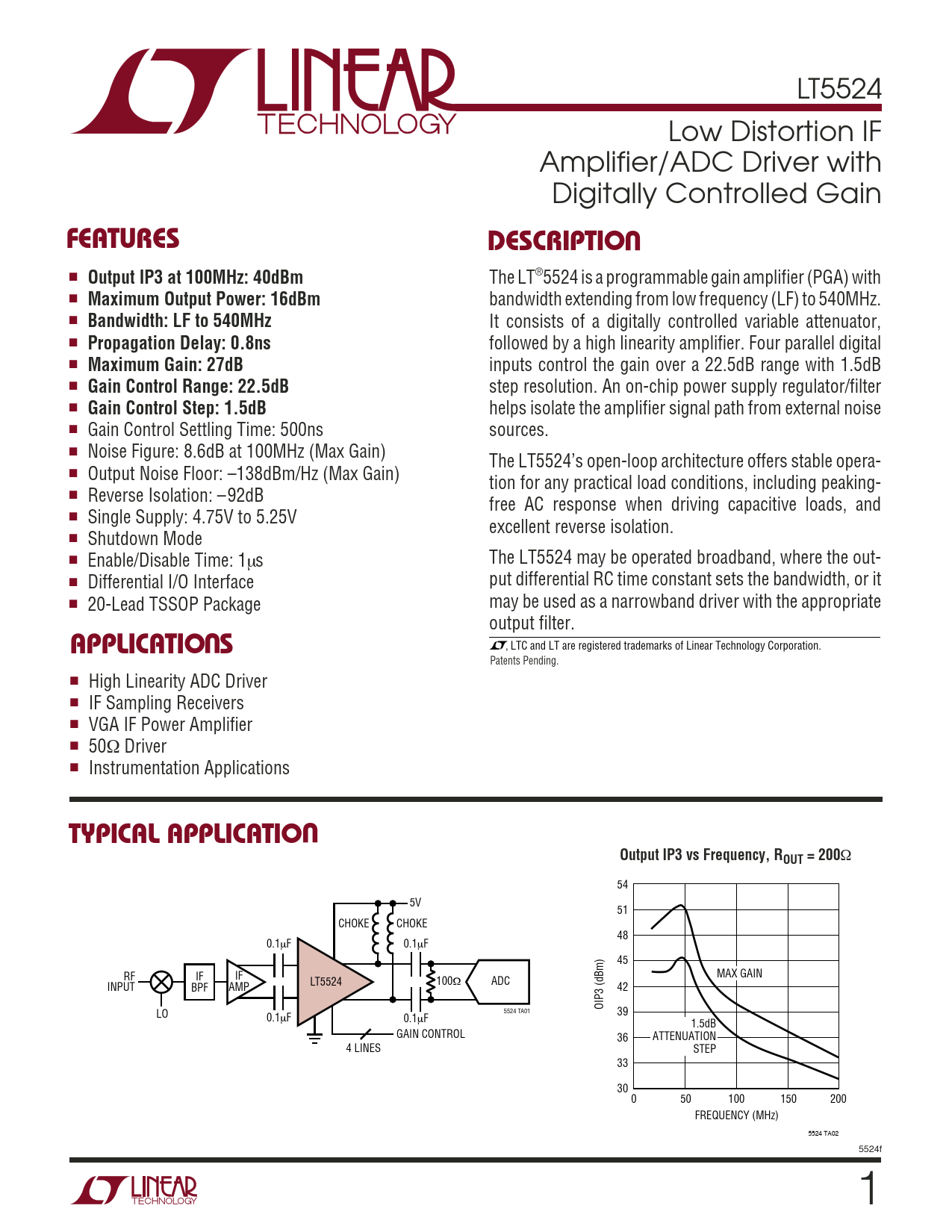

LT5524 Low Distortion IF Amplifier/ADC Driver with Digitally Controlled Gain
U FEATURES DESCRIPTIO
■
Output IP3 at 100MHz: 40dBm
The LT®5524 is a programmable gain amplifier (PGA) with ■
Maximum Output Power: 16dBm
bandwidth extending from low frequency (LF) to 540MHz. ■
Bandwidth: LF to 540MHz
It consists of a digitally controlled variable attenuator, ■
Propagation Delay: 0.8ns
followed by a high linearity amplifier. Four parallel digital ■
Maximum Gain: 27dB
inputs control the gain over a 22.5dB range with 1.5dB ■
Gain Control Range: 22.5dB
step resolution. An on-chip power supply regulator/filter ■
Gain Control Step: 1.5dB
helps isolate the amplifier signal path from external noise ■ Gain Control Settling Time: 500ns sources. ■ Noise Figure: 8.6dB at 100MHz (Max Gain) The LT5524’s open-loop architecture offers stable opera- ■ Output Noise Floor: –138dBm/Hz (Max Gain) tion for any practical load conditions, including peaking- ■ Reverse Isolation: –92dB free AC response when driving capacitive loads, and ■ Single Supply: 4.75V to 5.25V excellent reverse isolation. ■ Shutdown Mode ■ Enable/Disable Time: 1µs The LT5524 may be operated broadband, where the out- ■ Differential I/O Interface put differential RC time constant sets the bandwidth, or it ■ 20-Lead TSSOP Package may be used as a narrowband driver with the appropriate
