LT6015/LT6016/LT6017
e lecTrical characTerisTics The
l

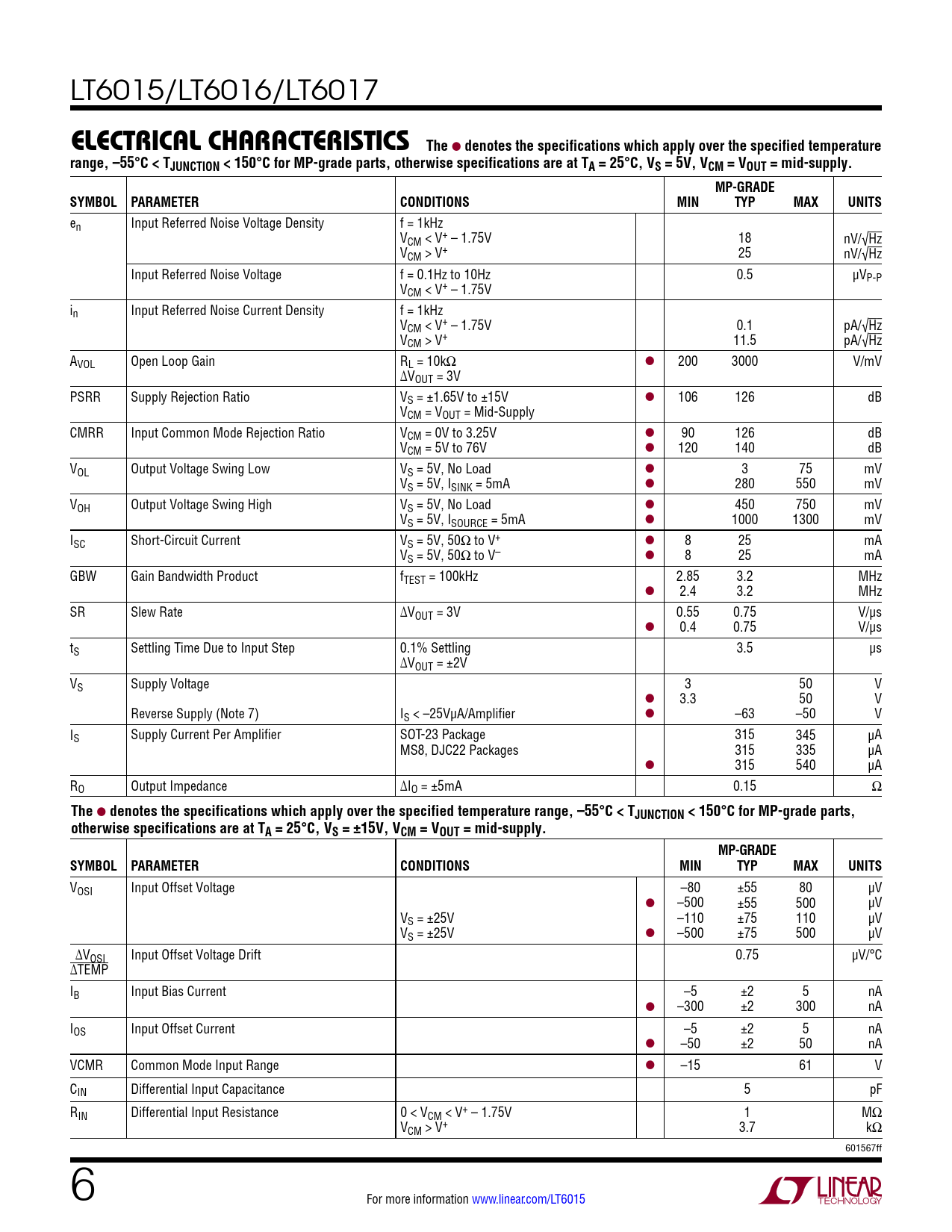

denotes the specifications which apply over the specified temperature range, –55°C < TJUNCTION < 150°C for MP-grade parts, otherwise specifications are at TA = 25°C, VS = 5V, VCM = VOUT = mid-supply. MP-GRADE SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
en Input Referred Noise Voltage Density f = 1kHz VCM < V+ – 1.75V 18 nV/√Hz VCM > V+ 25 nV/√Hz Input Referred Noise Voltage f = 0.1Hz to 10Hz 0.5 µVP-P VCM < V+ – 1.75V in Input Referred Noise Current Density f = 1kHz VCM < V+ – 1.75V 0.1 pA/√Hz VCM > V+ 11.5 pA/√Hz AVOL Open Loop Gain RL = 10kΩ l 200 3000 V/mV ∆VOUT = 3V PSRR Supply Rejection Ratio VS = ±1.65V to ±15V l 106 126 dB VCM = VOUT = Mid-Supply CMRR Input Common Mode Rejection Ratio VCM = 0V to 3.25V l 90 126 dB VCM = 5V to 76V l 120 140 dB VOL Output Voltage Swing Low VS = 5V, No Load l 3 75 mV VS = 5V, ISINK = 5mA l 280 550 mV VOH Output Voltage Swing High VS = 5V, No Load l 450 750 mV VS = 5V, ISOURCE = 5mA l 1000 1300 mV ISC Short-Circuit Current VS = 5V, 50Ω to V+ l 8 25 mA VS = 5V, 50Ω to V– l 8 25 mA GBW Gain Bandwidth Product fTEST = 100kHz 2.85 3.2 MHz l 2.4 3.2 MHz SR Slew Rate ∆VOUT = 3V 0.55 0.75 V/µs l 0.4 0.75 V/µs tS Settling Time Due to Input Step 0.1% Settling 3.5 µs ∆VOUT = ±2V VS Supply Voltage 3 50 V l 3.3 50 V Reverse Supply (Note 7) IS < –25VµA/Amplifier l –63 –50 V IS Supply Current Per Amplifier SOT-23 Package 315 345 µA MS8, DJC22 Packages 315 335 µA l 315 540 µA RO Output Impedance ∆IO = ±5mA 0.15 Ω
The
l
denotes the specifications which apply over the specified temperature range, –55°C < TJUNCTION < 150°C for MP-grade parts, otherwise specifications are at TA = 25°C, VS = ±15V, VCM = VOUT = mid-supply. MP-GRADE SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOSI Input Offset Voltage –80 ±55 80 µV l –500 ±55 500 µV VS = ±25V –110 ±75 110 µV VS = ±25V l –500 ±75 500 µV ∆VOSI Input Offset Voltage Drift 0.75 µV/°C ∆TEMP IB Input Bias Current –5 ±2 5 nA l –300 ±2 300 nA IOS Input Offset Current –5 ±2 5 nA l –50 ±2 50 nA VCMR Common Mode Input Range l –15 61 V CIN Differential Input Capacitance 5 pF RIN Differential Input Resistance 0 < VCM < V+ – 1.75V 1 MΩ VCM > V+ 3.7 kΩ 601567ff 6 For more information www.linear.com/LT6015 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Typical Applications Package Description Revision History Related Parts
