Datasheet LTC6261, LTC6262, LTC6263 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 30MHz, 240µA Power Efficient Rail-to-Rail I/O Op Amps |
| Pages / Page | 26 / 5 — 1.8V electricAl chArActeristics. The. denotes the specifications which … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |

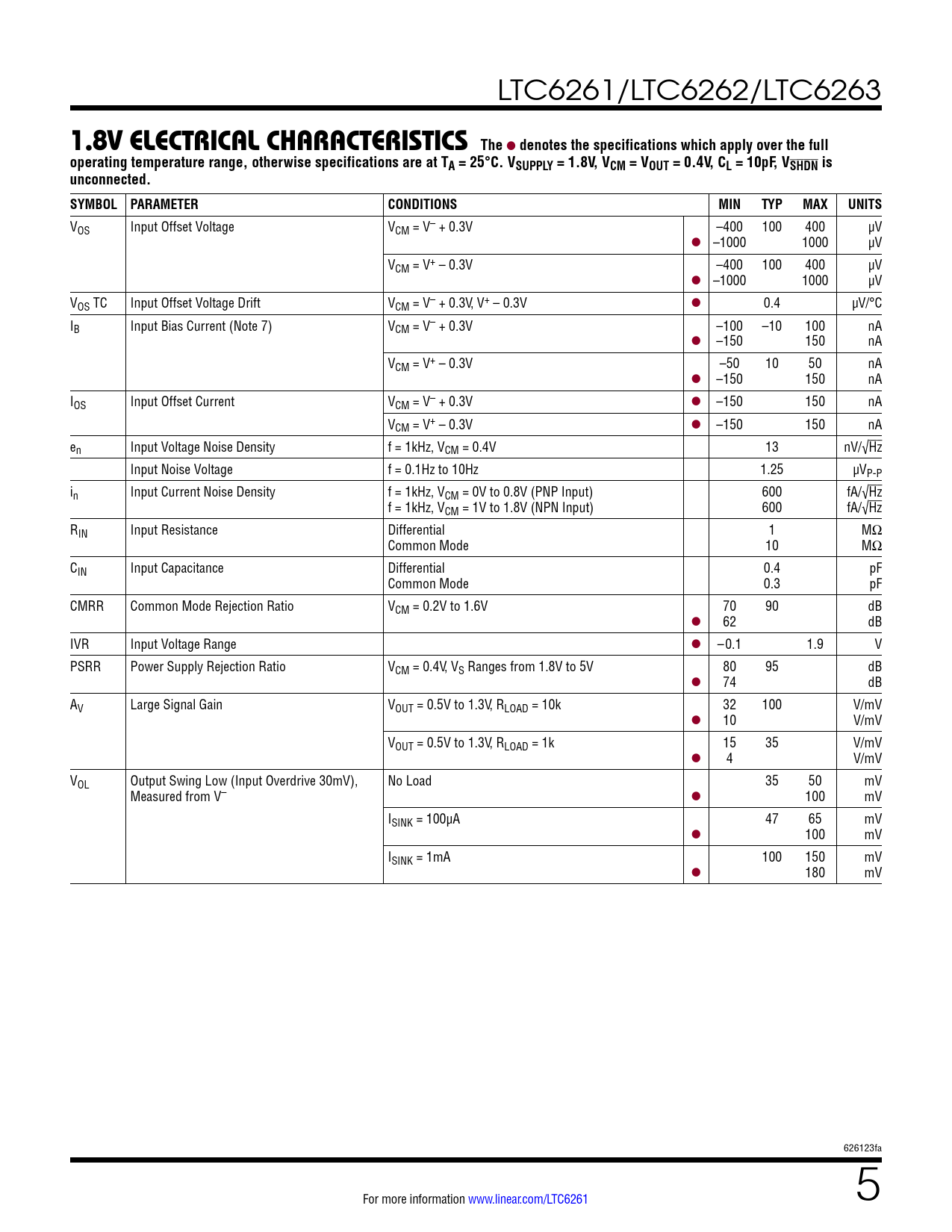

1.8V electricAl chArActeristics. The. denotes the specifications which apply over the full
Model Line for this Datasheet
- LTC6261HDC#PBF LTC6261HDC#TRMPBF LTC6261HDC#TRPBF LTC6261HS6#PBF LTC6261HS6#TRMPBF LTC6261HS6#TRPBF LTC6261IDC#PBF LTC6261IDC#TRMPBF LTC6261IDC#TRPBF LTC6261IS6#PBF LTC6261IS6#TRMPBF LTC6261IS6#TRPBF
- LTC6262HDC#PBF LTC6262HDC#TRMPBF LTC6262HDC#TRPBF LTC6262HMS#PBF LTC6262HMS#TRPBF LTC6262HMS8#PBF LTC6262HMS8#TRPBF LTC6262HTS8#PBF LTC6262HTS8#TRMPBF LTC6262HTS8#TRPBF LTC6262IDC#PBF LTC6262IDC#TRMPBF LTC6262IDC#TRPBF LTC6262IMS#PBF LTC6262IMS#TRPBF LTC6262IMS8#PBF LTC6262IMS8#TRPBF LTC6262ITS8#PBF LTC6262ITS8#TRMPBF LTC6262ITS8#TRPBF
Text Version of Document
LTC6261/LTC6262/LTC6263
1.8V electricAl chArActeristics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 1.8V, VCM = VOUT = 0.4V, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V– + 0.3V –400 100 400 µV l –1000 1000 µV VCM = V+ – 0.3V –400 100 400 µV l –1000 1000 µV VOS TC Input Offset Voltage Drift VCM = V– + 0.3V, V+ – 0.3V l 0.4 µV/°C IB Input Bias Current (Note 7) VCM = V– + 0.3V –100 –10 100 nA l –150 150 nA VCM = V+ – 0.3V –50 10 50 nA l –150 150 nA IOS Input Offset Current VCM = V– + 0.3V l –150 150 nA VCM = V+ – 0.3V l –150 150 nA en Input Voltage Noise Density f = 1kHz, VCM = 0.4V 13 nV/√Hz Input Noise Voltage f = 0.1Hz to 10Hz 1.25 µVP-P in Input Current Noise Density f = 1kHz, VCM = 0V to 0.8V (PNP Input) 600 fA/√Hz f = 1kHz, VCM = 1V to 1.8V (NPN Input) 600 fA/√Hz RIN Input Resistance Differential 1 MΩ Common Mode 10 MΩ CIN Input Capacitance Differential 0.4 pF Common Mode 0.3 pF CMRR Common Mode Rejection Ratio VCM = 0.2V to 1.6V 70 90 dB l 62 dB IVR Input Voltage Range l –0.1 1.9 V PSRR Power Supply Rejection Ratio VCM = 0.4V, VS Ranges from 1.8V to 5V 80 95 dB l 74 dB AV Large Signal Gain VOUT = 0.5V to 1.3V, RLOAD = 10k 32 100 V/mV l 10 V/mV VOUT = 0.5V to 1.3V, RLOAD = 1k 15 35 V/mV l 4 V/mV VOL Output Swing Low (Input Overdrive 30mV), No Load 35 50 mV Measured from V– l 100 mV ISINK = 100µA 47 65 mV l 100 mV ISINK = 1mA 100 150 mV l 180 mV 626123fa For more information www.linear.com/LTC6261 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
1.8V electricAl chArActeristics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 1.8V, VCM = VOUT = 0.4V, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V– + 0.3V –400 100 400 µV l –1000 1000 µV VCM = V+ – 0.3V –400 100 400 µV l –1000 1000 µV VOS TC Input Offset Voltage Drift VCM = V– + 0.3V, V+ – 0.3V l 0.4 µV/°C IB Input Bias Current (Note 7) VCM = V– + 0.3V –100 –10 100 nA l –150 150 nA VCM = V+ – 0.3V –50 10 50 nA l –150 150 nA IOS Input Offset Current VCM = V– + 0.3V l –150 150 nA VCM = V+ – 0.3V l –150 150 nA en Input Voltage Noise Density f = 1kHz, VCM = 0.4V 13 nV/√Hz Input Noise Voltage f = 0.1Hz to 10Hz 1.25 µVP-P in Input Current Noise Density f = 1kHz, VCM = 0V to 0.8V (PNP Input) 600 fA/√Hz f = 1kHz, VCM = 1V to 1.8V (NPN Input) 600 fA/√Hz RIN Input Resistance Differential 1 MΩ Common Mode 10 MΩ CIN Input Capacitance Differential 0.4 pF Common Mode 0.3 pF CMRR Common Mode Rejection Ratio VCM = 0.2V to 1.6V 70 90 dB l 62 dB IVR Input Voltage Range l –0.1 1.9 V PSRR Power Supply Rejection Ratio VCM = 0.4V, VS Ranges from 1.8V to 5V 80 95 dB l 74 dB AV Large Signal Gain VOUT = 0.5V to 1.3V, RLOAD = 10k 32 100 V/mV l 10 V/mV VOUT = 0.5V to 1.3V, RLOAD = 1k 15 35 V/mV l 4 V/mV VOL Output Swing Low (Input Overdrive 30mV), No Load 35 50 mV Measured from V– l 100 mV ISINK = 100µA 47 65 mV l 100 mV ISINK = 1mA 100 150 mV l 180 mV 626123fa For more information www.linear.com/LTC6261 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
