Datasheet AD7689-KGD (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 16-Bit, 8-Channel,250 kSPS PulSAR ADC |
| Pages / Page | 10 / 10 — AD7689-KGD. Known Good Die. OUTLINE DIMENSIONS. 0.25. 2.43 SQ. 5 3. TOP … |
| Revision | C |
| File Format / Size | PDF / 224 Kb |
| Document Language | English |

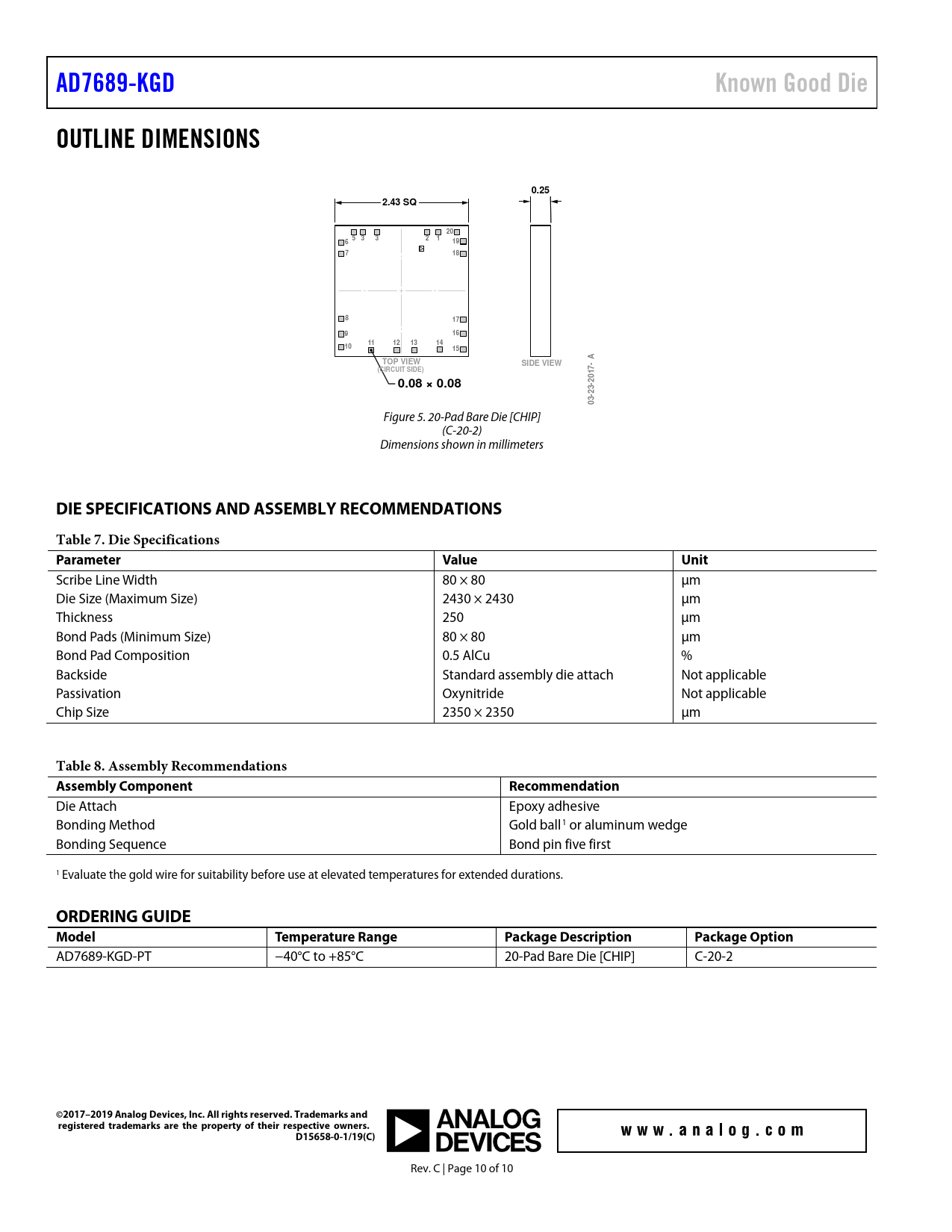

AD7689-KGD. Known Good Die. OUTLINE DIMENSIONS. 0.25. 2.43 SQ. 5 3. TOP VIEW. SIDE VIEW. (CIRCUIT SIDE). 2017-. 0.08 × 0.08. 23-. 03-
Model Line for this Datasheet
Text Version of Document
AD7689-KGD Known Good Die OUTLINE DIMENSIONS 0.25 2.43 SQ 20 5 3 3 2 1 6 19 7 18 8 17 9 16 11 12 13 14 10 15 A TOP VIEW SIDE VIEW (CIRCUIT SIDE) 2017- 0.08 × 0.08 23- 03-
Figure 5. 20-Pad Bare Die [CHIP] (C-20-2) Dimensions shown in millimeters
DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS Table 7. Die Specifications Parameter Value Unit
Scribe Line Width 80 × 80 µm Die Size (Maximum Size) 2430 × 2430 µm Thickness 250 µm Bond Pads (Minimum Size) 80 × 80 µm Bond Pad Composition 0.5 AlCu % Backside Standard assembly die attach Not applicable Passivation Oxynitride Not applicable Chip Size 2350 × 2350 µm
Table 8. Assembly Recommendations Assembly Component Recommendation
Die Attach Epoxy adhesive Bonding Method Gold ball1 or aluminum wedge Bonding Sequence Bond pin five first 1 Evaluate the gold wire for suitability before use at elevated temperatures for extended durations.
ORDERING GUIDE Model Temperature Range Package Description Package Option
AD7689-KGD-PT −40°C to +85°C 20-Pad Bare Die [CHIP] C-20-2
