Datasheet AD7923-EP (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 4-Channel 200 kSPS, 12-Bit A/D Converter with Sequencer in 16-Lead TSSOP |
| Pages / Page | 9 / 9 — Enhanced Product. AD7923-EP. OUTLINE DIMENSIONS. 5.10 5.00 4.90. 4.50. … |
| Revision | A |
| File Format / Size | PDF / 305 Kb |
| Document Language | English |

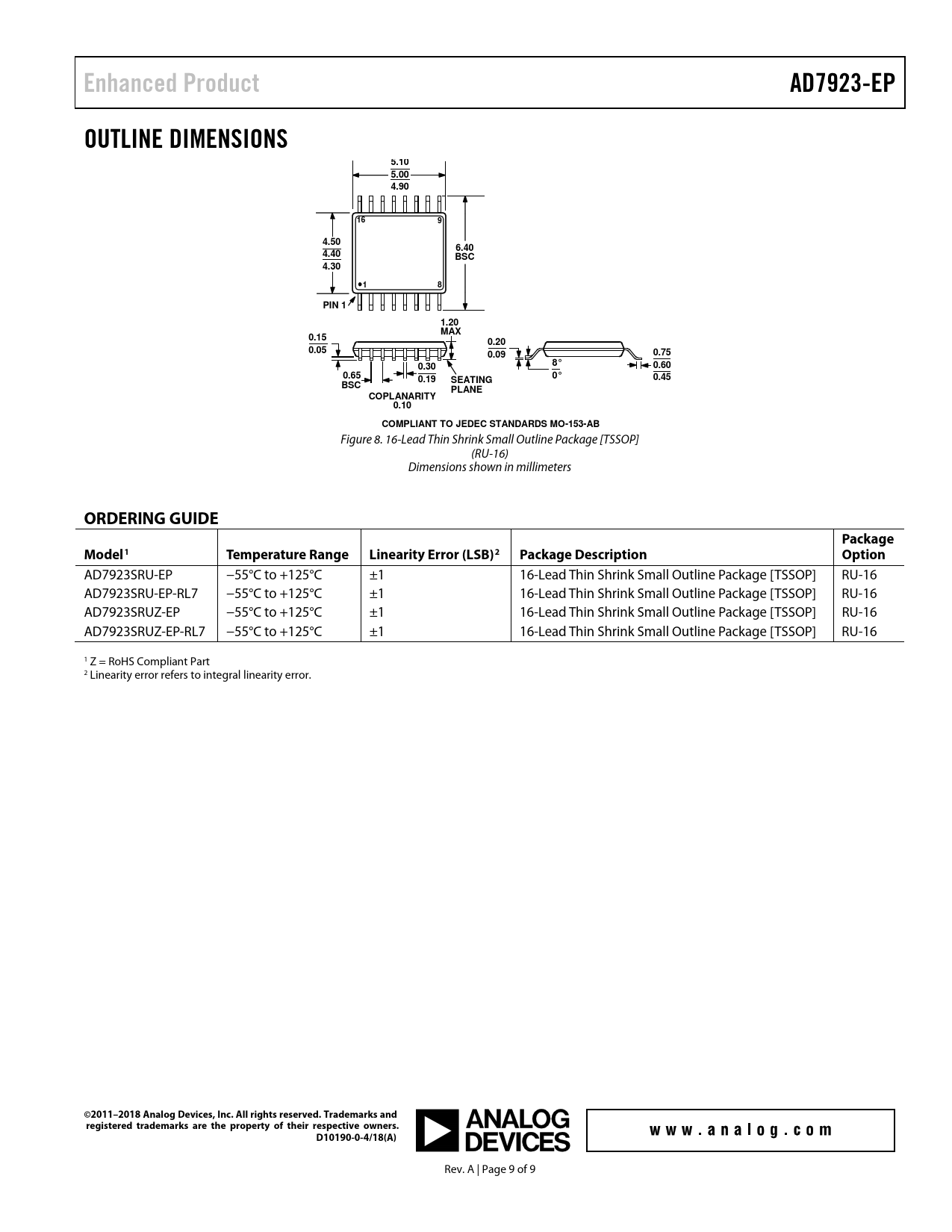

Enhanced Product. AD7923-EP. OUTLINE DIMENSIONS. 5.10 5.00 4.90. 4.50. 6.40. 4.40. BSC. 4.30. PIN 1. 1.20 MAX. 0.15. 0.20. 0.05. 0.09. 0.75. 0.60. 0.30
Model Line for this Datasheet
Text Version of Document
Enhanced Product AD7923-EP OUTLINE DIMENSIONS 5.10 5.00 4.90 16 9 4.50 6.40 4.40 BSC 4.30 1 8 PIN 1 1.20 MAX 0.15 0.20 0.05 0.09 0.75 8° 0.60 0.30 0.65 0° 0.19 SEATING 0.45 BSC PLANE COPLANARITY 0.10 COMPLIANT TO JEDEC STANDARDS MO-153-AB
Figure 8. 16-Lead Thin Shrink Small Outline Package [TSSOP] (RU-16) Dimensions shown in millimeters
ORDERING GUIDE Package Model1 Temperature Range Linearity Error (LSB)2 Package Description Option
AD7923SRU-EP −55°C to +125°C ±1 16-Lead Thin Shrink Small Outline Package [TSSOP] RU-16 AD7923SRU-EP-RL7 −55°C to +125°C ±1 16-Lead Thin Shrink Small Outline Package [TSSOP] RU-16 AD7923SRUZ-EP −55°C to +125°C ±1 16-Lead Thin Shrink Small Outline Package [TSSOP] RU-16 AD7923SRUZ-EP-RL7 −55°C to +125°C ±1 16-Lead Thin Shrink Small Outline Package [TSSOP] RU-16 1 Z = RoHS Compliant Part 2 Linearity error refers to integral linearity error.
