| Manufacturer | Analog Devices |
| Description | 10 MHz to 3 GHz VGA with 60 dB Gain Control Range |
| Pages / Page | 24 / 5 — Data Sheet. ADL5330. ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION. … |
| Revision | B |
| File Format / Size | PDF / 695 Kb |
| Document Language | English |

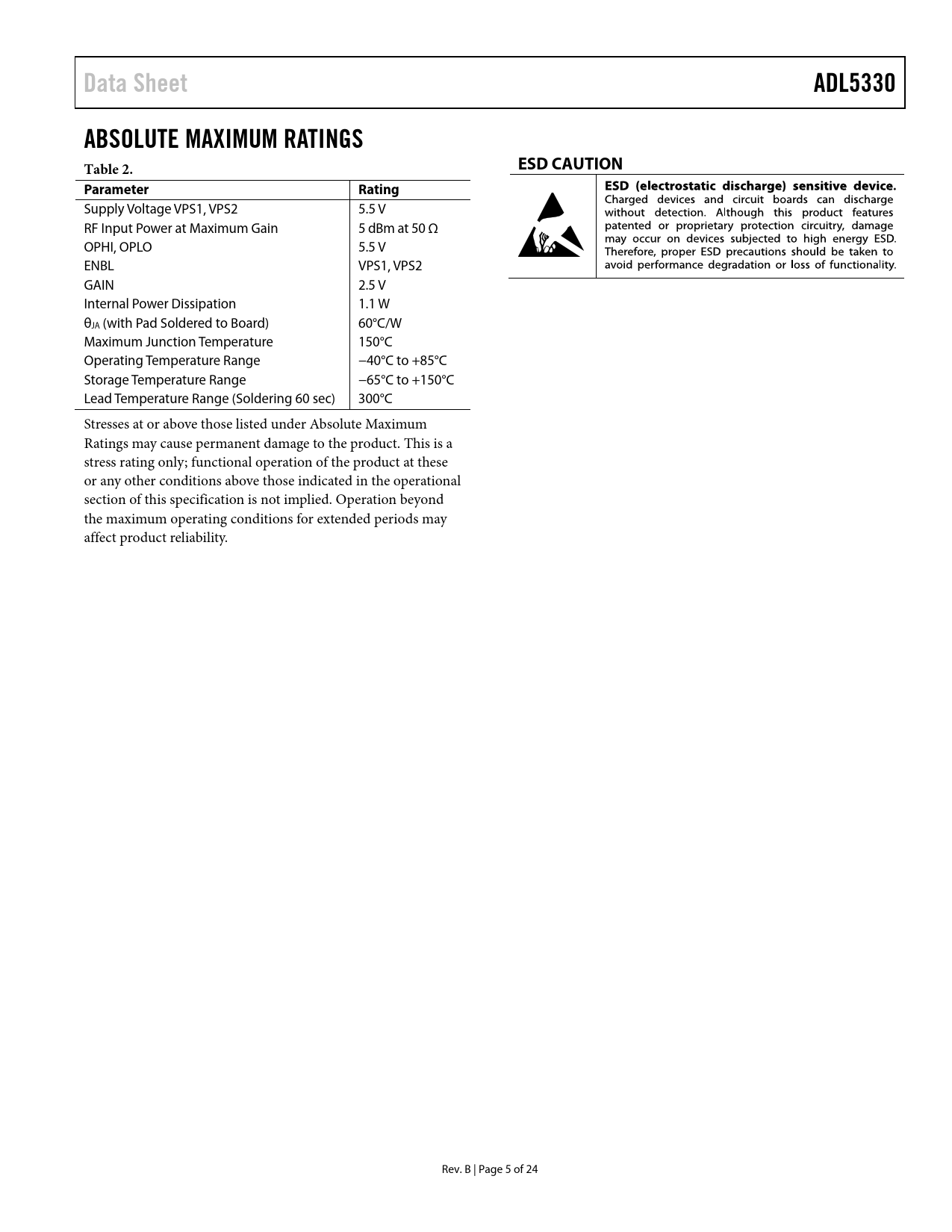

Data Sheet. ADL5330. ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5330 ABSOLUTE MAXIMUM RATINGS Table 2. ESD CAUTION Parameter Rating
Supply Voltage VPS1, VPS2 5.5 V RF Input Power at Maximum Gain 5 dBm at 50 Ω OPHI, OPLO 5.5 V ENBL VPS1, VPS2 GAIN 2.5 V Internal Power Dissipation 1.1 W θ JA (with Pad Soldered to Board) 60°C/W Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature Range (Soldering 60 sec) 300°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. B | Page 5 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION BASIC CONNECTIONS RF INPUT/OUTPUT INTERFACE GAIN CONTROL INPUT AUTOMATIC GAIN CONTROL INTERFACING TO AN IQ MODULATOR WCDMA TRANSMIT APPLICATION CDMA2000 TRANSMIT APPLICATION SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
