Datasheet BAT41 (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | 100 V, 200 mA Surface Mount General Purpose Signal Schottky Diode |
| Pages / Page | 12 / 9 — BAT41. Package information. Table 9. SOT-323 dimensions. Dimensions. Ref. … |
| File Format / Size | PDF / 149 Kb |
| Document Language | English |

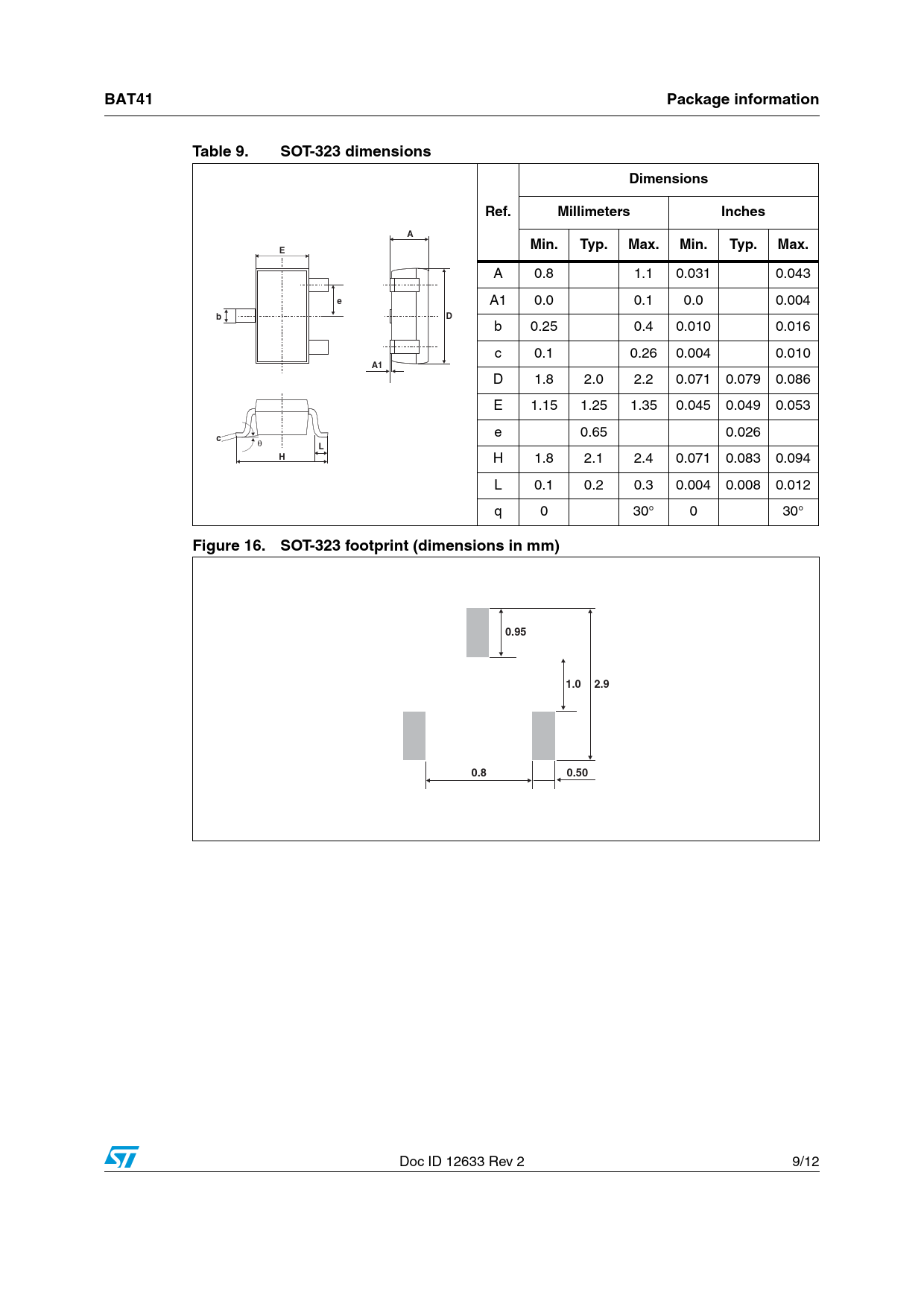

BAT41. Package information. Table 9. SOT-323 dimensions. Dimensions. Ref. Millimeters. Inches. Min. Typ. Max. Figure 16
Model Line for this Datasheet
Text Version of Document
BAT41 Package information Table 9. SOT-323 dimensions Dimensions Ref. Millimeters Inches A Min. Typ. Max. Min. Typ. Max. E
A 0.8 1.1 0.031 0.043
e
A1 0.0 0.1 0.0 0.004
b D
b 0.25 0.4 0.010 0.016 c 0.1 0.26 0.004 0.010
A1
D 1.8 2.0 2.2 0.071 0.079 0.086 E 1.15 1.25 1.35 0.045 0.049 0.053 e 0.65 0.026
c
θ
L H
H 1.8 2.1 2.4 0.071 0.083 0.094 L 0.1 0.2 0.3 0.004 0.008 0.012 q 0 30° 0 30°
Figure 16. SOT-323 footprint (dimensions in mm) 0.95 1.0 2.9 0.8 0.50
