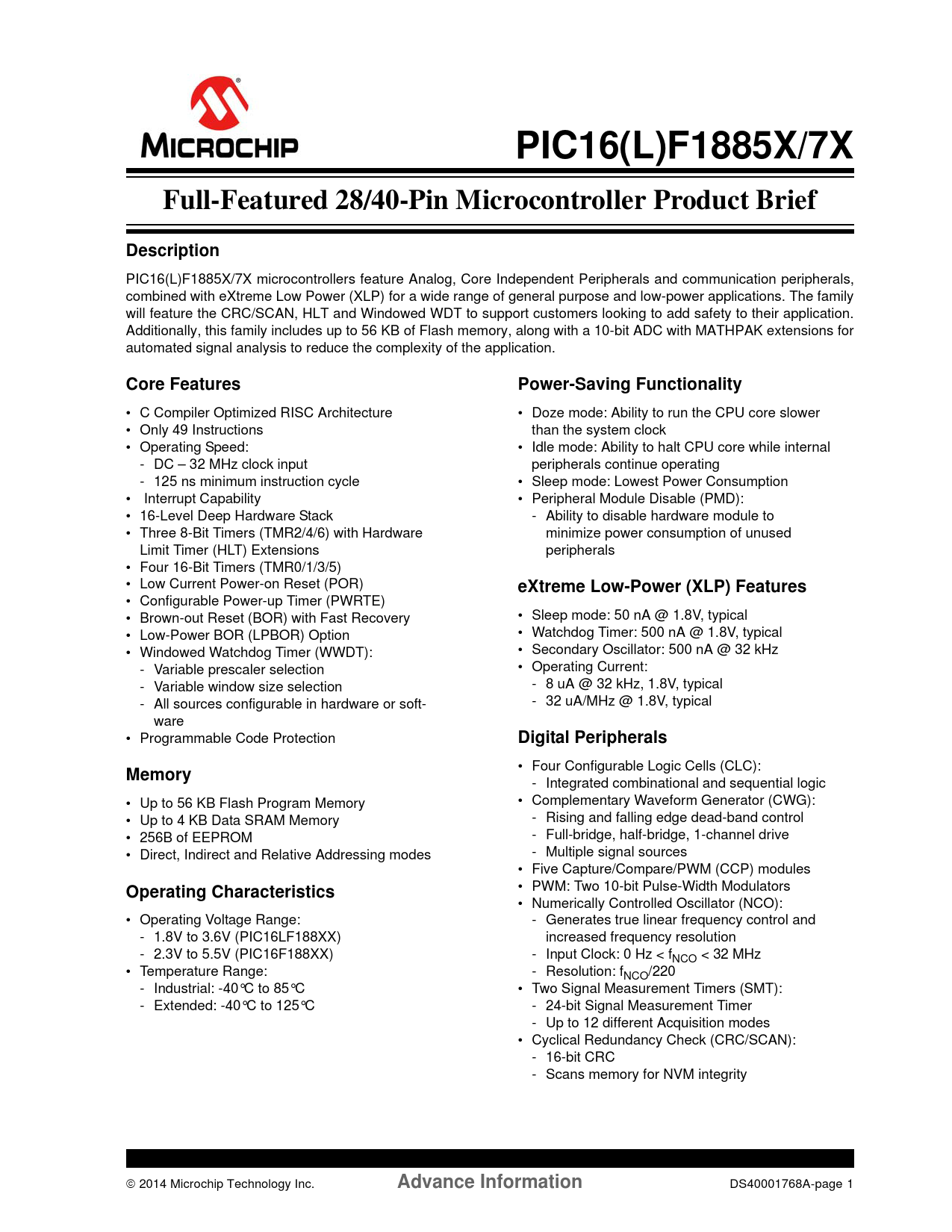

PIC16(L)F1885X/7X
Full-Featured 28/40-Pin Microcontroller Product Brief
Description
PIC16(L)F1885X/7X microcontrollers feature Analog, Core Independent Peripherals and communication peripherals,
combined with eXtreme Low Power (XLP) for a wide range of general purpose and low-power applications. The family
will feature the CRC/SCAN, HLT and Windowed WDT to support customers looking to add safety to their application.
Additionally, this family includes up to 56 KB of Flash memory, along with a 10-bit ADC with MATHPAK extensions for
automated signal analysis to reduce the complexity of the application. Core Features Power-Saving Functionality • C Compiler Optimized RISC Architecture
• Only 49 Instructions
• Operating Speed:
-DC – 32 MHz clock input
-125 ns minimum instruction cycle
• Interrupt Capability
• 16-Level Deep Hardware Stack
• Three 8-Bit Timers (TMR2/4/6) with Hardware
Limit Timer (HLT) Extensions
• Four 16-Bit Timers (TMR0/1/3/5)
• Low Current Power-on Reset (POR)
• Configurable Power-up Timer (PWRTE)
• Brown-out Reset (BOR) with Fast Recovery
• Low-Power BOR (LPBOR) Option
• Windowed Watchdog Timer (WWDT):
-Variable prescaler selection
-Variable window size selection
-All sources configurable in hardware or software
• Programmable Code Protection • Doze mode: Ability to run the CPU core slower
than the system clock
• Idle mode: Ability to halt CPU core while internal
peripherals continue operating
• Sleep mode: Lowest Power Consumption
• Peripheral Module Disable (PMD):
-Ability to disable hardware module to
minimize power consumption of unused
peripherals Memory
•
•
•
• Up to 56 KB Flash Program Memory
Up to 4 KB Data SRAM Memory
256B of EEPROM
Direct, Indirect and Relative Addressing modes Operating Characteristics
• Operating Voltage Range:
-1.8V to 3.6V (PIC16LF188XX)
-2.3V to 5.5V (PIC16F188XX)
• Temperature Range:
-Industrial: -40°C to 85°C
-Extended: -40°C to 125°C 2014 Microchip Technology Inc. eXtreme Low-Power (XLP) Features
•
•
•
• Sleep mode: 50 nA @ 1.8V, typical
Watchdog Timer: 500 nA @ 1.8V, typical
Secondary Oscillator: 500 nA @ 32 kHz
Operating Current:
-8 uA @ 32 kHz, 1.8V, typical
-32 uA/MHz @ 1.8V, typical Digital Peripherals
• Four Configurable Logic Cells (CLC):
-Integrated combinational and sequential logic
• Complementary Waveform Generator (CWG):
-Rising and falling edge dead-band control
-Full-bridge, half-bridge, 1-channel drive
-Multiple signal sources
• Five Capture/Compare/PWM (CCP) modules
• PWM: Two 10-bit Pulse-Width Modulators
• Numerically Controlled Oscillator (NCO):
-Generates true linear frequency control and
increased frequency resolution
-Input Clock: 0 Hz < fNCO < 32 MHz
-Resolution: fNCO/220
• Two Signal Measurement Timers (SMT):
-24-bit Signal Measurement Timer
-Up to 12 different Acquisition modes
• Cyclical Redundancy Check (CRC/SCAN):
-16-bit CRC
-Scans memory for NVM integrity Advance Information DS40001768A-page 1
