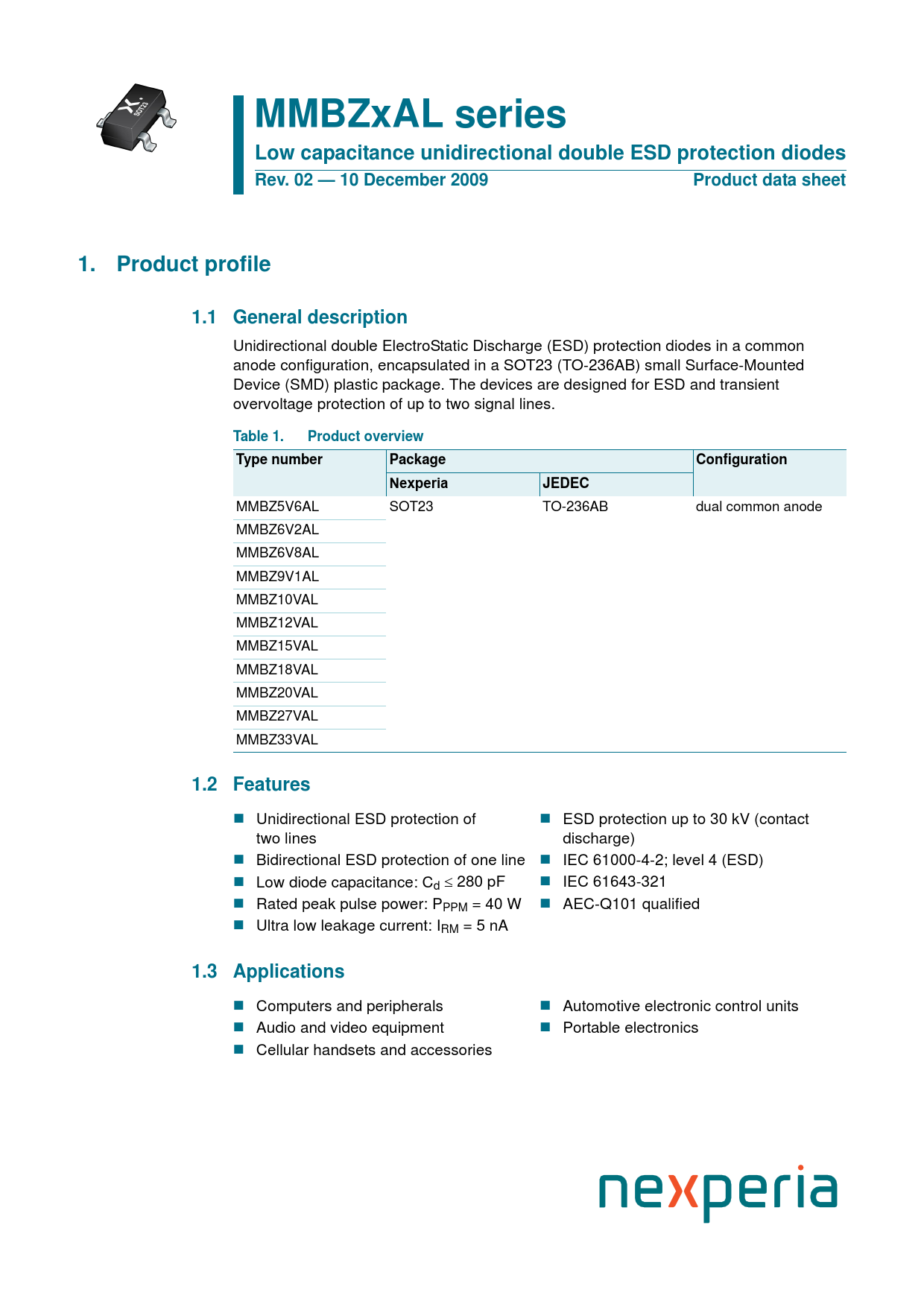

MMBZxAL series Low capacitance unidirectional double ESD protection diodesRev. 02 — 10 December 2009Product data sheet1.Product profile1.1 General description Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The devices are designed for ESD and transient overvoltage protection of up to two signal lines. Table 1.Product overviewType numberPackageConfigurationNexperiaJEDEC MMBZ5V6AL SOT23 TO-236AB dual common anode MMBZ6V2AL MMBZ6V8AL MMBZ9V1AL MMBZ10VAL MMBZ12VAL MMBZ15VAL MMBZ18VAL MMBZ20VAL MMBZ27VAL MMBZ33VAL 1.2 Features Unidirectional ESD protection of ESD protection up to 30 kV (contact two lines discharge) Bidirectional ESD protection of one line IEC 61000-4-2; level 4 (ESD) Low diode capacitance: C ≤ d 280 pF IEC 61643-321 Rated peak pulse power: PPPM = 40 W AEC-Q101 qualified Ultra low leakage current: IRM = 5 nA 1.3 Applications Computers and peripherals Automotive electronic control units Audio and video equipment Portable electronics Cellular handsets and accessories Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Application information 9. Test information 9.1 Quality information 10. Package outline 11. Packing information 12. Soldering 13. Revision history 14. Legal information 14.1 Data sheet status 14.2 Definitions 14.3 Disclaimers 14.4 Trademarks 15. Contact information 16. Contents
