Datasheet ADA4177-1, ADA4177-2, ADA4177-4 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | OVP and EMI Protected, Precision, Low Noise and Bias Current Single Op Amp |
| Pages / Page | 33 / 9 — Data Sheet. ADA4177-1/ADA4177-2/ADA4177-4. PIN CONFIGURATIONS AND … |
| Revision | E |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
Data Sheet. ADA4177-1/ADA4177-2/ADA4177-4. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. NIC. ADA4177-1. –IN. ADA4177-1 7 V+
Model Line for this Datasheet
Text Version of Document
Data Sheet ADA4177-1/ADA4177-2/ADA4177-4 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NIC 1 8 NIC NIC 1 8 NIC ADA4177-1 –IN 2 ADA4177-1 7 V+ –IN 2 7 V+ TOP VIEW TOP VIEW +IN 3 6 OUT +IN 3 6 OUT (Not to Scale) (Not to Scale) V– 4 5 NIC V– 4 5 NIC
205 105
NOTES NOTES 1. NIC = NOT INTERNALLY CONNECTED. 1. NIC = NOT INTERNALLY CONNECTED.

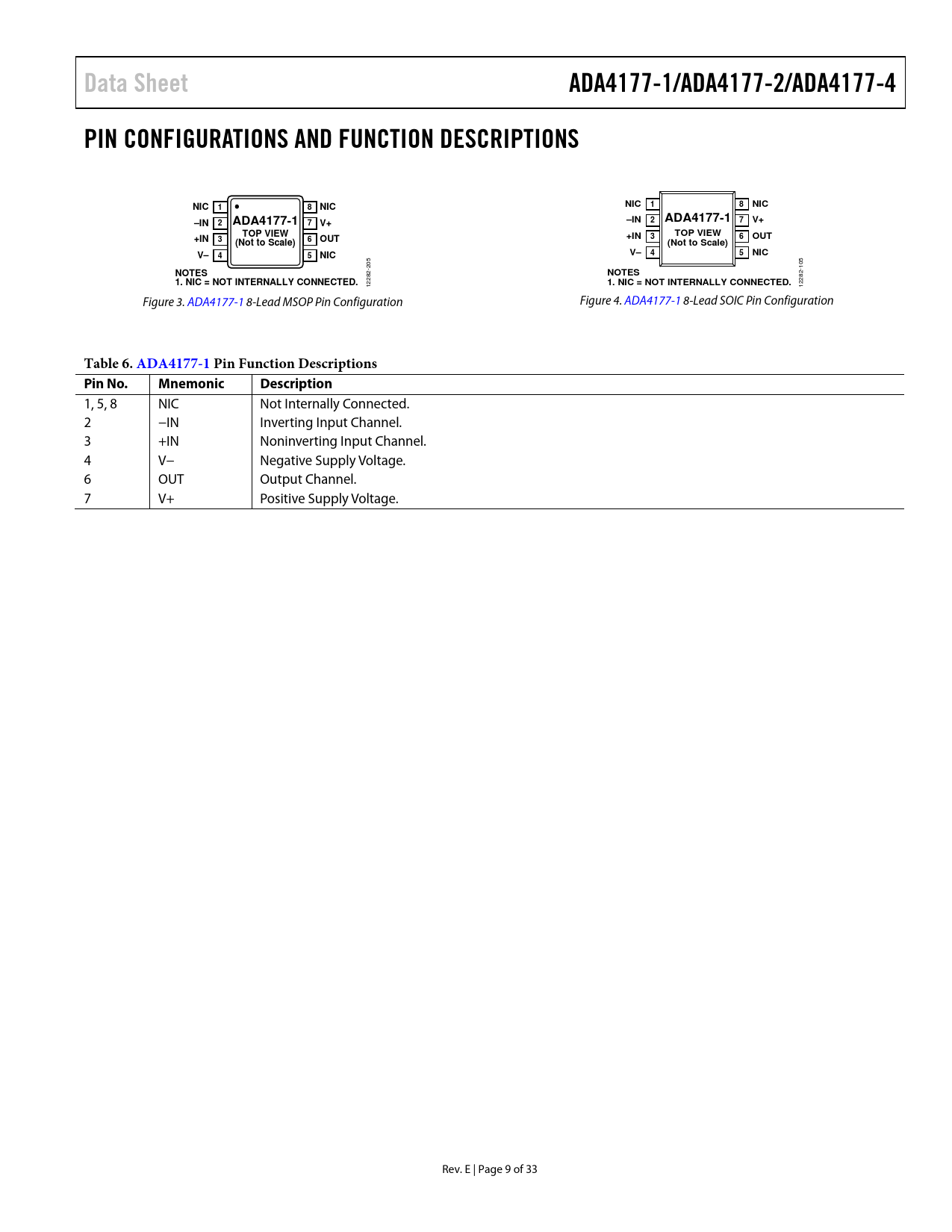

12282- 12282- Figure 3. ADA4177-1 8-Lead MSOP Pin Configuration Figure 4. ADA4177-1 8-Lead SOIC Pin Configuration
Table 6. ADA4177-1 P in Function Descriptions Pin No. Mnemonic Description
1, 5, 8 NIC Not Internally Connected. 2 −IN Inverting Input Channel. 3 +IN Noninverting Input Channel. 4 V− Negative Supply Voltage. 6 OUT Output Channel. 7 V+ Positive Supply Voltage. Rev. E | Page 9 of 33 Document Outline Features Applications General Description Pin Connection Diagram Revision History Specifications Electrical Characteristics, ±5 V Electrical Characteristics, ±15 V Absolute Maximum Ratings Maximum Power Dissipation Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Active Overvoltage Protection Common Protection Methods Add an External Series Input Resistor Add External Clamping Diodes Input Protection Circuit Limiting Overvoltage Current Out of the Positive Supply Pin EMI Protection Self Heating Using the ADA4177-1/ADA4177-2/ADA4177-4 as a Comparator Output Phase Reversal Proper Printed Circuit Board (PCB) Layout Long-Term Drift Temperature Hysteresis Outline Dimensions Ordering Guide
