Datasheet AD8229 (Analog Devices) - 5

ManufacturerAnalog Devices
Description1 nV/√Hz Low Noise 210°C Instrumentation Amplifier

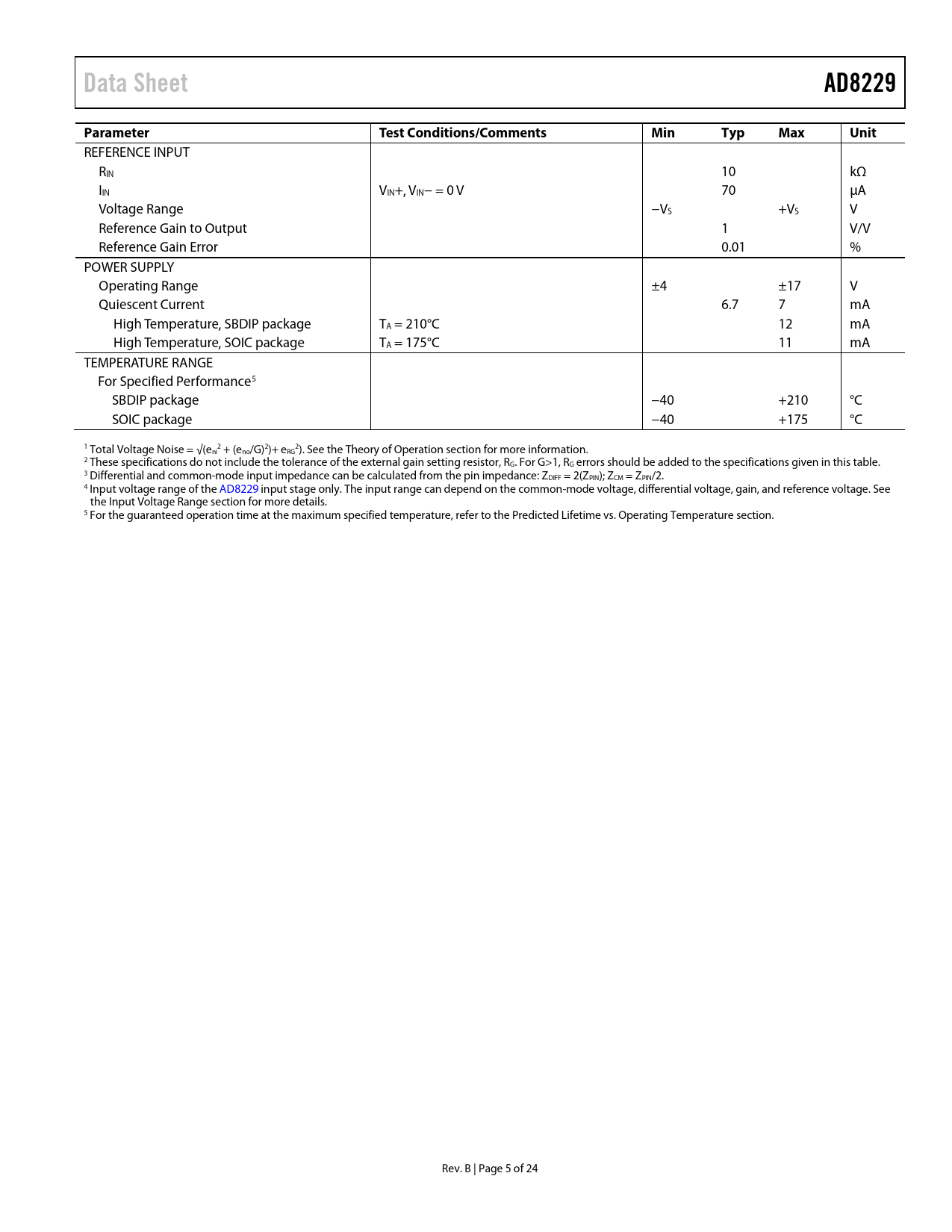

Pages / Page24 / 5 — Data Sheet. AD8229. Parameter. Test Conditions/Comments. Min. Typ. Max. …
RevisionB
File Format / SizePDF / 941 Kb
Document LanguageEnglish

Data Sheet. AD8229. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit

Data Sheet AD8229 Parameter Test Conditions/Comments Min Typ Max Unit

Model Line for this Datasheet

Text Version of Document

link to page 17 link to page 18 link to page 6 link to page 5
Data Sheet AD8229 Parameter Test Conditions/Comments Min Typ Max Unit
REFERENCE INPUT RIN 10 kΩ IIN VIN+, VIN− = 0 V 70 µA Voltage Range −VS +VS V Reference Gain to Output 1 V/V Reference Gain Error 0.01 % POWER SUPPLY Operating Range ±4 ±17 V Quiescent Current 6.7 7 mA High Temperature, SBDIP package TA = 210°C 12 mA High Temperature, SOIC package TA = 175°C 11 mA TEMPERATURE RANGE For Specified Performance5 SBDIP package −40 +210 °C SOIC package −40 +175 °C 1 Total Voltage Noise = √(e 2 2 ni + (eno/G)2)+ eRG ). See the Theory of Operation section for more information. 2 These specifications do not include the tolerance of the external gain setting resistor, RG. For G>1, RG errors should be added to the specifications given in this table. 3 Differential and common-mode input impedance can be calculated from the pin impedance: ZDIFF = 2(ZPIN); ZCM = ZPIN/2. 4 Input voltage range of the AD8229 input stage only. The input range can depend on the common-mode voltage, differential voltage, gain, and reference voltage. See the Input Voltage Range section for more details. 5 For the guaranteed operation time at the maximum specified temperature, refer to the Predicted Lifetime vs. Operating Temperature section. Rev. B | Page 5 of 24 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Predicted Lifetime vs. Operating Temperature Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Architecture Gain Selection RG Power Dissipation Reference Terminal Input Voltage Range Layout Common-Mode Rejection Ratio over Frequency Power Supplies Reference Pin Input Bias Current Return Path Input Protection Input Voltages Beyond the Rails Large Differential Input Voltage at High Gain IMAX Radio Frequency Interference (RFI) Calculating the Noise of the Input Stage Source Resistance Noise Voltage Noise of the Instrumentation Amplifier Current Noise of the Instrumentation Amplifier Total Noise Density Calculation Outline Dimensions Ordering Guide
