Datasheet PIC18F24/25K42 (Microchip) - 9
| Manufacturer | Microchip |
| Description | 28-Pin, Low-Power High-Performance High-Temperature Microcontrollers |
| Pages / Page | 18 / 9 — PIC18F24/25K42. 2.2. Standard Operating Conditions. VDD — Operating … |
| File Format / Size | PDF / 268 Kb |
| Document Language | English |
PIC18F24/25K42. 2.2. Standard Operating Conditions. VDD — Operating Supply Voltage(1). TA — Operating Ambient Temperature Range
Model Line for this Datasheet
- PIC18F24K42-E/ML PIC18F24K42-E/MLV02 PIC18F24K42-E/MV PIC18F24K42-E/SO PIC18F24K42-E/SP PIC18F24K42-E/SS PIC18F24K42-E/SSV01 PIC18F24K42-E/SSVAO PIC18F24K42-I/ML PIC18F24K42-I/MV PIC18F24K42-I/SO PIC18F24K42-I/SP PIC18F24K42-I/SS PIC18F24K42T-E/MV PIC18F24K42T-E/SS PIC18F24K42T-E/SS020 PIC18F24K42T-E/SSVAO PIC18F24K42T-I/ML PIC18F24K42T-I/MV PIC18F24K42T-I/SO PIC18F24K42T-I/SS PIC18LF24K42-E/ML PIC18LF24K42-E/MV PIC18LF24K42-E/SO PIC18LF24K42-E/SP PIC18LF24K42-E/SS PIC18LF24K42-I/ML PIC18LF24K42-I/MV PIC18LF24K42-I/SO PIC18LF24K42-I/SP PIC18LF24K42-I/SS PIC18LF24K42T-I/ML PIC18LF24K42T-I/MV PIC18LF24K42T-I/SO PIC18LF24K42T-I/SS
- PIC18F25K42-E/ML PIC18F25K42-E/MV PIC18F25K42-E/SO PIC18F25K42-E/SP PIC18F25K42-E/SS PIC18F25K42-E/SSVAO PIC18F25K42-I/ML PIC18F25K42-I/MV PIC18F25K42-I/SO PIC18F25K42-I/SP PIC18F25K42-I/SS PIC18F25K42T-E/SSVAO PIC18F25K42T-I/ML PIC18F25K42T-I/MV PIC18F25K42T-I/SO PIC18F25K42T-I/SS PIC18LF25K42-E/ML PIC18LF25K42-E/MV PIC18LF25K42-E/SO PIC18LF25K42-E/SP PIC18LF25K42-E/SS PIC18LF25K42-I/ML PIC18LF25K42-I/MV PIC18LF25K42-I/SO PIC18LF25K42-I/SP PIC18LF25K42-I/SS PIC18LF25K42T-I/ML PIC18LF25K42T-I/MV PIC18LF25K42T-I/SO PIC18LF25K42T-I/SS
Text Version of Document
link to page 9 link to page 9

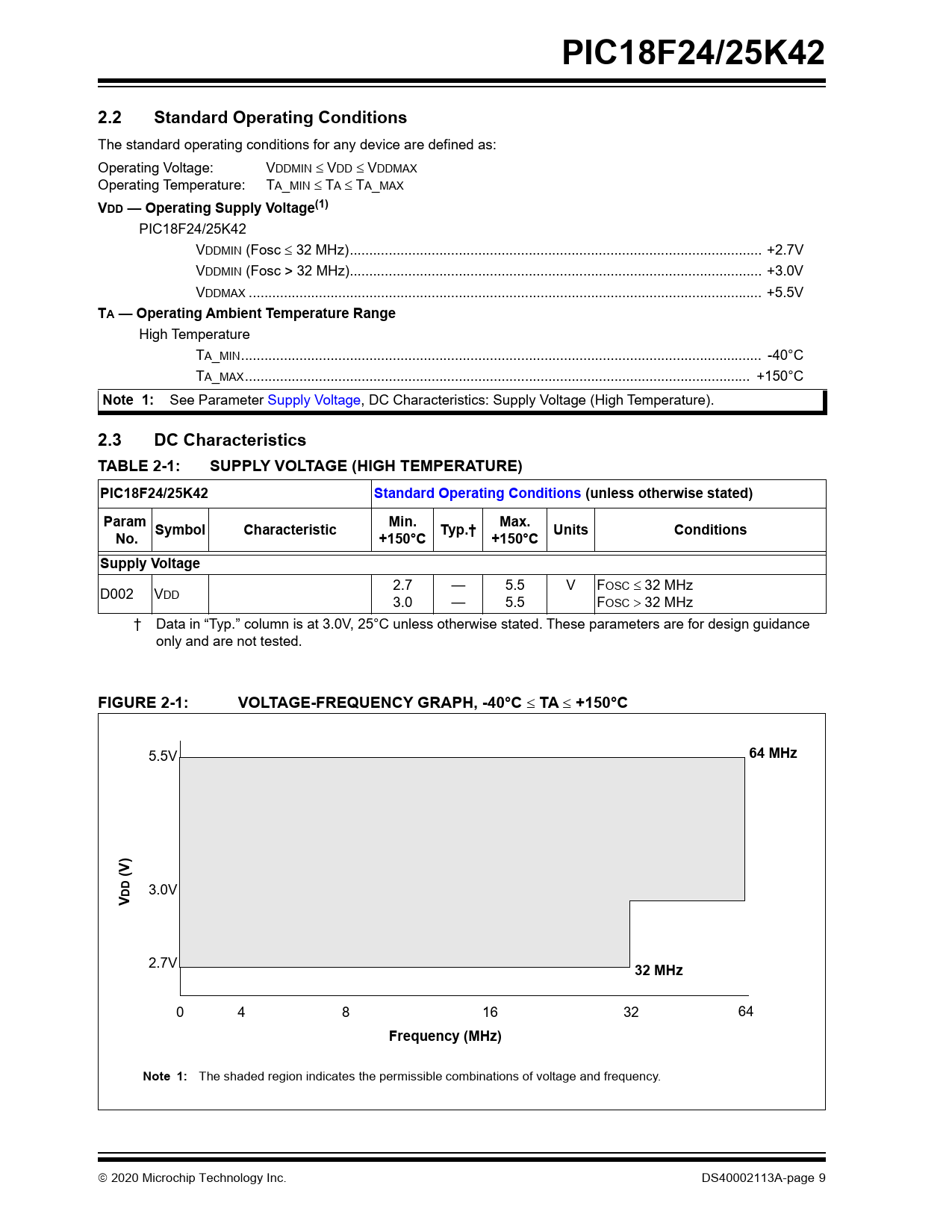

PIC18F24/25K42 2.2 Standard Operating Conditions
