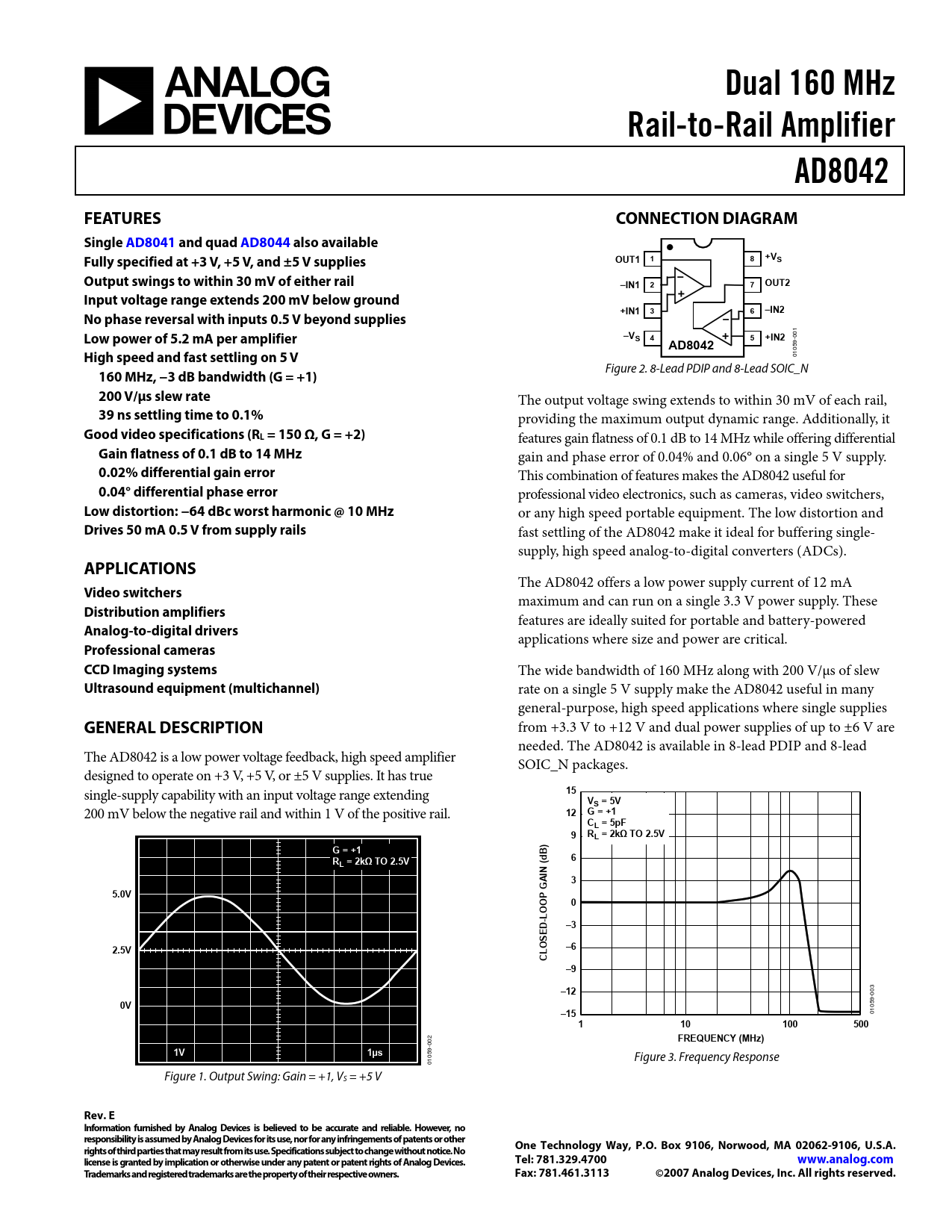

Dual 160 MHzRail-to-Rail AmplifierAD8042FEATURESCONNECTION DIAGRAMSingle AD8041and quad AD8044also available Fully specified at +3 V, +5 V, and ±5 V suppliesOUT1 18+VSOutput swings to within 30 mV of either rail–IN1 27OUT2Input voltage range extends 200 mV below ground+IN1 36–IN2No phase reversal with inputs 0.5 V beyond supplies 1 Low power of 5.2 mA per amplifier–VS 45+IN2AD8042 -00 59 10 High speed and fast settling on 5 V 0 Figure 2. 8-Lead PDIP and 8-Lead SOIC_N 160 MHz, −3 dB bandwidth (G = +1) 200 V/μs slew rate The output voltage swing extends to within 30 mV of each rail, 39 ns settling time to 0.1% providing the maximum output dynamic range. Additionally, it Good video specifications (RL = 150 Ω, G = +2) features gain flatness of 0.1 dB to 14 MHz while offering differential Gain flatness of 0.1 dB to 14 MHz gain and phase error of 0.04% and 0.06° on a single 5 V supply. 0.02% differential gain error This combination of features makes the AD8042 useful for 0.04° differential phase error professional video electronics, such as cameras, video switchers, Low distortion: −64 dBc worst harmonic @ 10 MHz or any high speed portable equipment. The low distortion and Drives 50 mA 0.5 V from supply rails fast settling of the AD8042 make it ideal for buffering single-
supply, high speed analog-to-digital converters (ADCs). APPLICATIONS The AD8042 offers a low power supply current of 12 mA Video switchers maximum and can run on a single 3.3 V power supply. These Distribution amplifiers features are ideally suited for portable and battery-powered Analog-to-digital drivers applications where size and power are critical. Professional cameras CCD Imaging systems The wide bandwidth of 160 MHz along with 200 V/μs of slew Ultrasound equipment (multichannel) rate on a single 5 V supply make the AD8042 useful in many
