HMC613LC4B
v11.0514
SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA), 0.1 - 20 GHz Absolute Maximum Ratings
Vcc1, Vcc2 3.7 V T Input Signal Amplitude 12 dBm ELECTROSTATIC SENSITIVE DEVICE M Junction Temperature 125 °C OBSERVE HANDLING PRECAUTIONS S Continuous Pdiss (T=85 °C) 0.46 W Derate 11.5 mW/°C above 85 °C - Thermal Resistance (R ) th 87.1 °C/W (junction to package bottom) RS Storage Temperature -65 to +150 °C O Operating Temperature -40 to +85 °C T ESD Sensitivity (HBM) Class 0 C E T

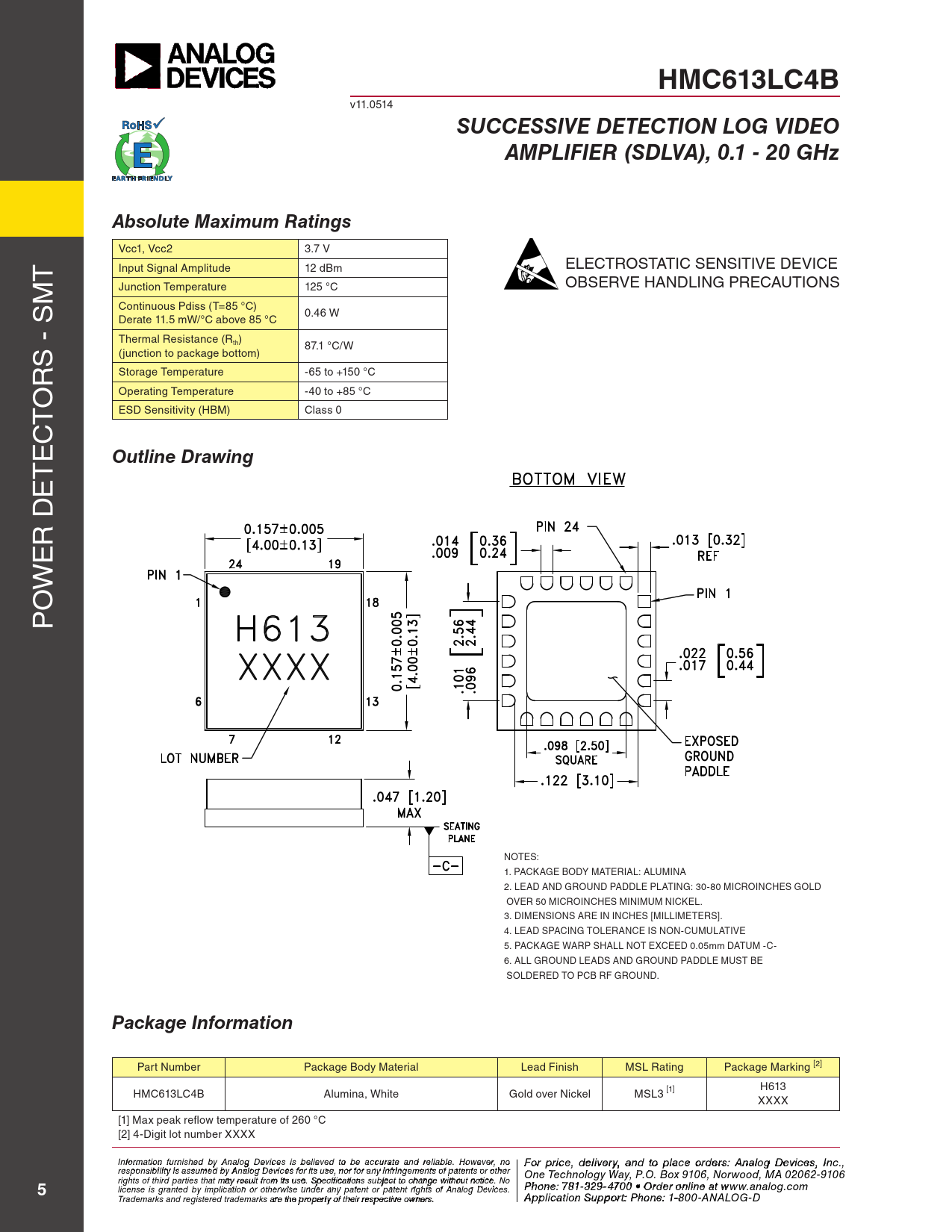

Outline Drawing
E D R E W O P NOTES: 1. PACKAGE BODY MATERIAL: ALUMINA 2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER 50 MICROINCHES MINIMUM NICKEL. 3. DIMENSIONS ARE IN INCHES [MILLIMETERS]. 4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C- 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC613LC4B Alumina, White Gold over Nickel MSL3 [1] H613 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m
