Datasheet AMP03 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Precision, Unity-Gain Differential Amplifier |
| Pages / Page | 8 / 8 — AMP03. OUTLINE DIMENSIONS. 8-Lead Small Outline Package [SOIC]. 8-Lead … |
| Revision | F |
| File Format / Size | PDF / 269 Kb |
| Document Language | English |

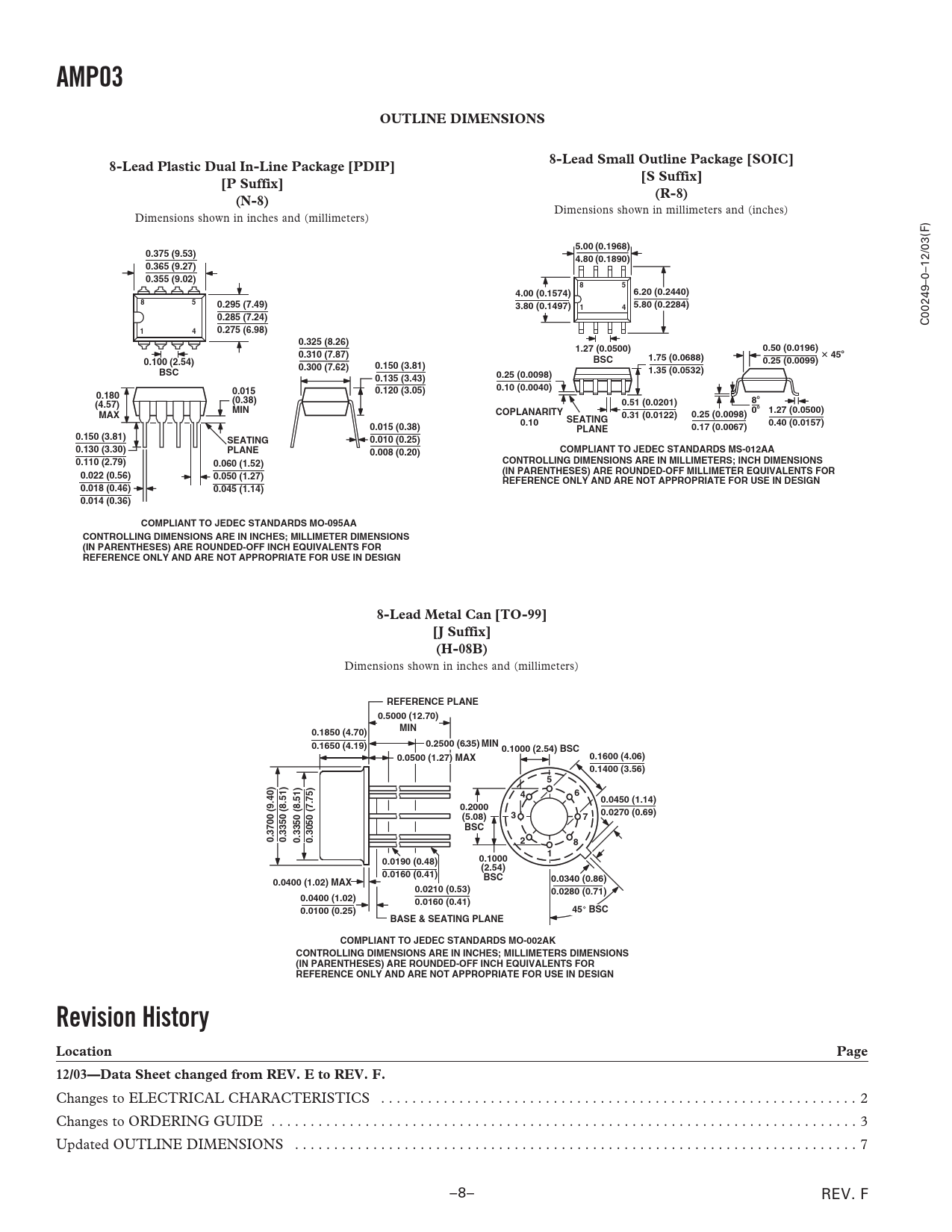

AMP03. OUTLINE DIMENSIONS. 8-Lead Small Outline Package [SOIC]. 8-Lead Plastic Dual In-Line Package [PDIP]. [S Suffix]
Model Line for this Datasheet
Text Version of Document
AMP03 OUTLINE DIMENSIONS 8-Lead Small Outline Package [SOIC] 8-Lead Plastic Dual In-Line Package [PDIP] [S Suffix] [P Suffix] (R-8) (N-8)
Dimensions shown in millimeters and (inches) Dimensions shown in inches and (millimeters)
5.00 (0.1968) 0.375 (9.53) 4.80 (0.1890) 0.365 (9.27) 0.355 (9.02) 8 5 4.00 (0.1574) 6.20 (0.2440) 8 5 0.295 (7.49) 3.80 (0.1497) 1 4 5.80 (0.2284) 0.285 (7.24)
