Datasheet ADG888 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 0.4 Ω CMOS, Dual DPDT Switch in WLCSP/LFCSP/TSSOP |
| Pages / Page | 17 / 5 — Data Sheet. ADG888. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. … |
| Revision | D |
| File Format / Size | PDF / 323 Kb |
| Document Language | English |

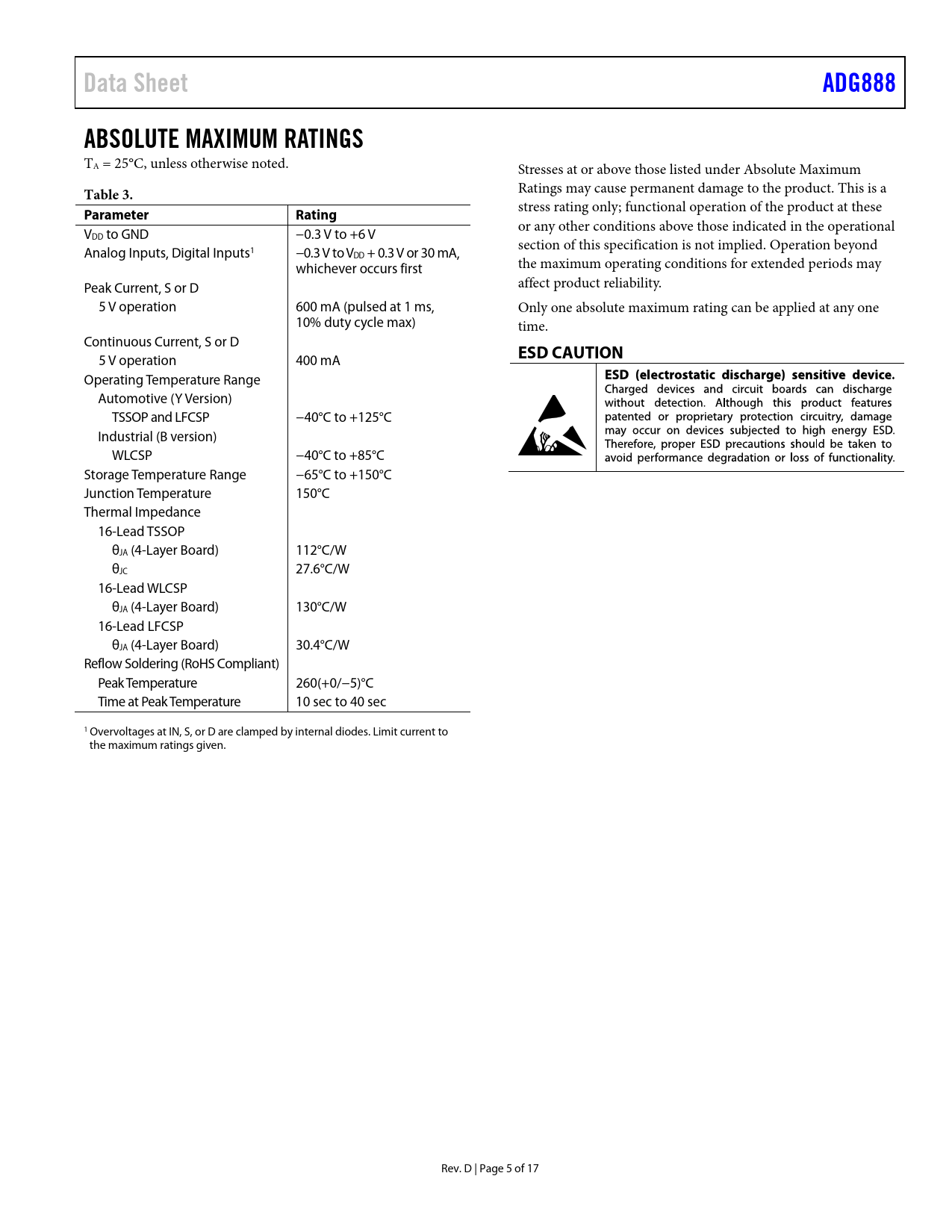

Data Sheet. ADG888. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADG888 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational VDD to GND −0.3 V to +6 V section of this specification is not implied. Operation beyond Analog Inputs, Digital Inputs1 −0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first the maximum operating conditions for extended periods may Peak Current, S or D affect product reliability. 5 V operation 600 mA (pulsed at 1 ms, Only one absolute maximum rating can be applied at any one 10% duty cycle max) time. Continuous Current, S or D
ESD CAUTION
5 V operation 400 mA Operating Temperature Range Automotive (Y Version) TSSOP and LFCSP −40°C to +125°C Industrial (B version) WLCSP −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Thermal Impedance 16-Lead TSSOP θJA (4-Layer Board) 112°C/W θJC 27.6°C/W 16-Lead WLCSP θJA (4-Layer Board) 130°C/W 16-Lead LFCSP θJA (4-Layer Board) 30.4°C/W Reflow Soldering (RoHS Compliant) Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at IN, S, or D are clamped by internal diodes. Limit current to the maximum ratings given. Rev. D | Page 5 of 17 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Outline Dimensions Ordering Guide
