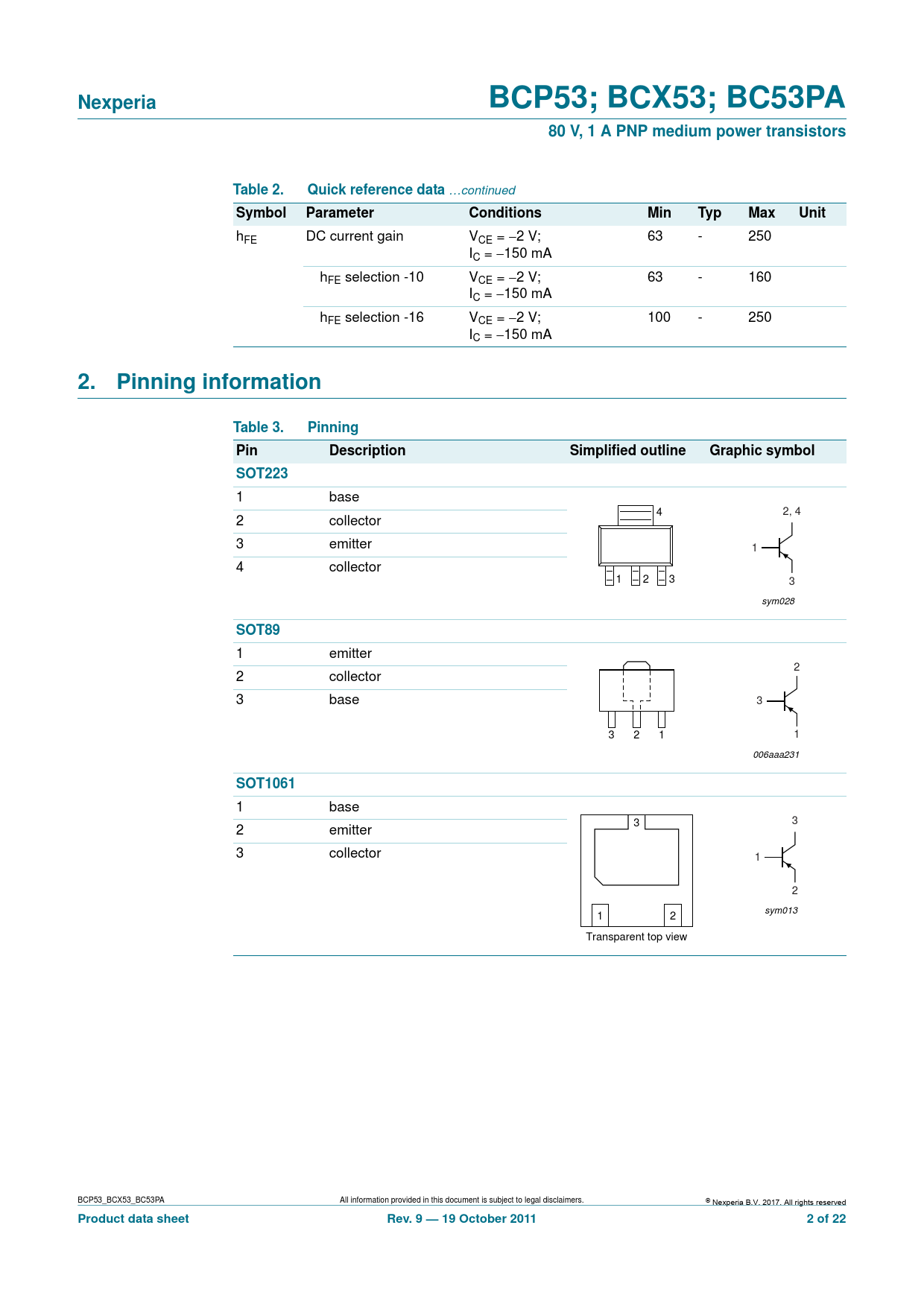

Nexperia. BCP53; BCX53; BC53PA. 80 V, 1 A PNP medium power transistors. Table 2. Quick reference data. Symbol. Parameter. Conditions

Nexperia BCP53; BCX53; BC53PA 80 V, 1 A PNP medium power transistors Table 2 Quick reference data Symbol Parameter Conditions

Model Line for this Datasheet

Text Version of Document

Nexperia BCP53; BCX53; BC53PA 80 V, 1 A PNP medium power transistors Table 2. Quick reference data
…continued
Symbol Parameter Conditions Min Typ Max Unit
hFE DC current gain VCE = 2 V; 63 - 250 IC = 150 mA hFE selection -10 VCE = 2 V; 63 - 160 IC = 150 mA hFE selection -16 VCE = 2 V; 100 - 250 IC = 150 mA
2. Pinning information Table 3. Pinning Pin Description Simplified outline Graphic symbol SOT223
1 base 4 2, 4 2 collector 3 emitter 1 4 collector 1 2 3 3 sym028
SOT89
1 emitter 2 2 collector 3 base 3 3 2 1 1 006aaa231
SOT1061
1 base 3 3 2 emitter 3 collector 1 2 1 2 sym013 Transparent top view BCP53_BCX53_BC53PA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
