Datasheet STP4NK50Z, STP4NK50ZFP, STD4NK50Z, STD4NK50Z-1 (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | N-CHANNEL 500V -2.4Ω -3A TO-220/TO-220FP/DPAK/IPAK Zener-Protected SuperMESH Power MOSFET |
| Pages / Page | 13 / 9 — STP4NK50Z - STP4NK50ZFP - STD4NK50Z - STD4NK50Z-1. TO-220FP MECHANICAL … |
| File Format / Size | PDF / 681 Kb |
| Document Language | English |

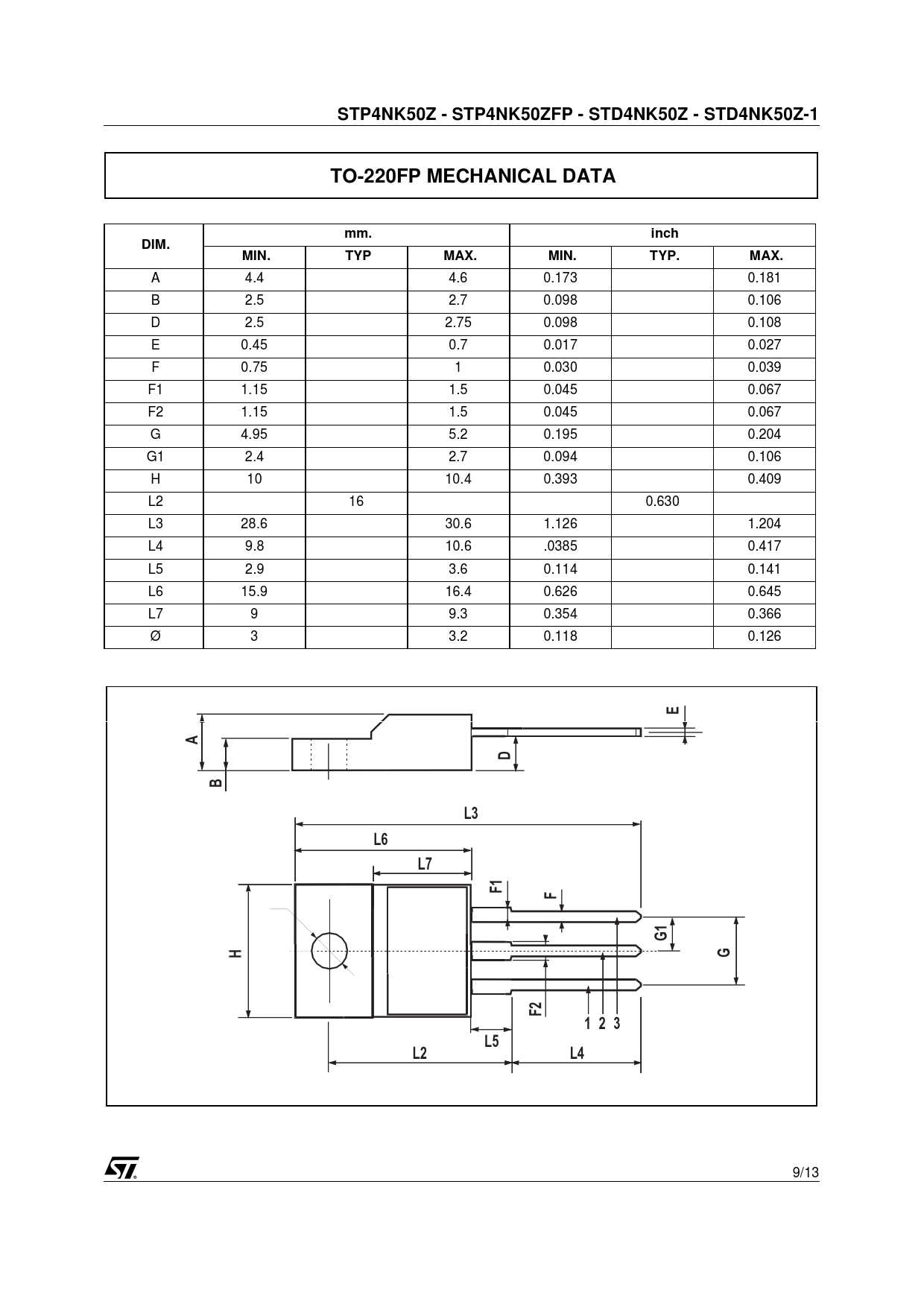

STP4NK50Z - STP4NK50ZFP - STD4NK50Z - STD4NK50Z-1. TO-220FP MECHANICAL DATA. mm. inch. DIM. MIN. TYP. MAX. TYP. 1 2 3
Model Line for this Datasheet
Text Version of Document
STP4NK50Z - STP4NK50ZFP - STD4NK50Z - STD4NK50Z-1 TO-220FP MECHANICAL DATA mm. inch DIM. MIN. TYP MAX. MIN. TYP. MAX.
A 4.4 4.6 0.173 0.181 B 2.5 2.7 0.098 0.106 D 2.5 2.75 0.098 0.108 E 0.45 0.7 0.017 0.027 F 0.75 1 0.030 0.039 F1 1.15 1.5 0.045 0.067 F2 1.15 1.5 0.045 0.067 G 4.95 5.2 0.195 0.204 G1 2.4 2.7 0.094 0.106 H 10 10.4 0.393 0.409 L2 16 0.630 L3 28.6 30.6 1.126 1.204 L4 9.8 10.6 .0385 0.417 L5 2.9 3.6 0.114 0.141 L6 15.9 16.4 0.626 0.645 L7 9 9.3 0.354 0.366 Ø 3 3.2 0.118 0.126
E A D B L3 L6 L7 F1 ¯ F G1 H G F2 1 2 3 L5 L2 L4
9/13
A 4.4 4.6 0.173 0.181 B 2.5 2.7 0.098 0.106 D 2.5 2.75 0.098 0.108 E 0.45 0.7 0.017 0.027 F 0.75 1 0.030 0.039 F1 1.15 1.5 0.045 0.067 F2 1.15 1.5 0.045 0.067 G 4.95 5.2 0.195 0.204 G1 2.4 2.7 0.094 0.106 H 10 10.4 0.393 0.409 L2 16 0.630 L3 28.6 30.6 1.126 1.204 L4 9.8 10.6 .0385 0.417 L5 2.9 3.6 0.114 0.141 L6 15.9 16.4 0.626 0.645 L7 9 9.3 0.354 0.366 Ø 3 3.2 0.118 0.126
E A D B L3 L6 L7 F1 ¯ F G1 H G F2 1 2 3 L5 L2 L4
9/13
