TMUX4051 , TMUX4052 , TMUX4053
SCDS445B – MAY 2022 – REVISED MARCH 2023

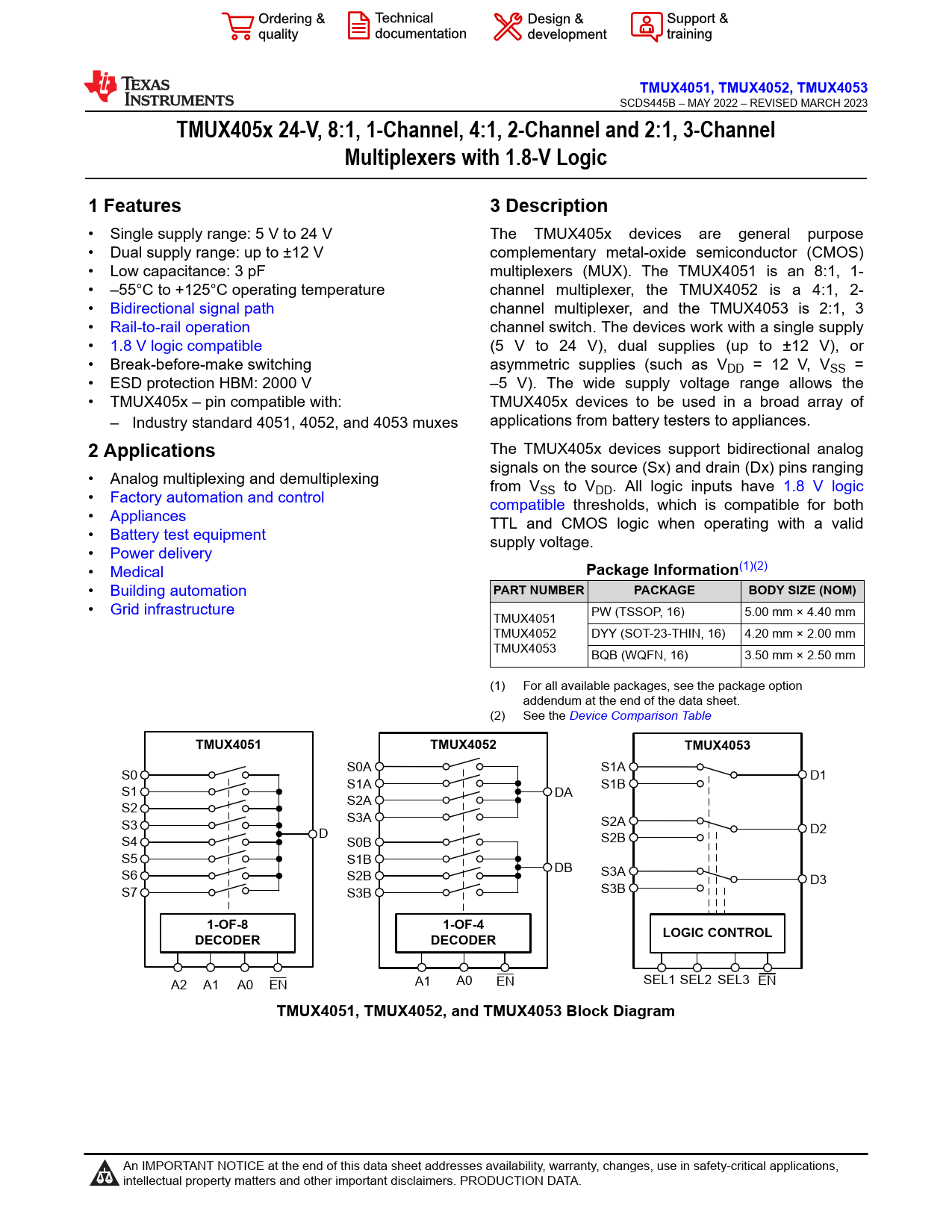

TMUX405x 24-V, 8:1, 1-Channel, 4:1, 2-Channel and 2:1, 3-Channel Multiplexers with 1.8-V Logic 1 Features 3 Description
• Single supply range: 5 V to 24 V The TMUX405x devices are general purpose • Dual supply range: up to ±12 V complementary metal-oxide semiconductor (CMOS) • Low capacitance: 3 pF multiplexers (MUX). The TMUX4051 is an 8:1, 1- • –55°C to +125°C operating temperature channel multiplexer, the TMUX4052 is a 4:1, 2- • Bidirectional signal path channel multiplexer, and the TMUX4053 is 2:1, 3 • Rail-to-rail operation channel switch. The devices work with a single supply • 1.8 V logic compatible (5 V to 24 V), dual supplies (up to ±12 V), or • Break-before-make switching asymmetric supplies (such as VDD = 12 V, VSS = • ESD protection HBM: 2000 V –5 V). The wide supply voltage range allows the • TMUX405x – pin compatible with: TMUX405x devices to be used in a broad array of – Industry standard 4051, 4052, and 4053 muxes applications from battery testers to appliances.
2 Applications
The TMUX405x devices support bidirectional analog signals on the source (Sx) and drain (Dx) pins ranging • Analog multiplexing and demultiplexing from V • Factory automation and control SS to VDD. All logic inputs have 1.8 V logic compatible thresholds, which is compatible for both • Appliances TTL and CMOS logic when operating with a valid • Battery test equipment supply voltage. • Power delivery • Medical
Package Information
(1)(2) • Building automation
PART NUMBER PACKAGE BODY SIZE (NOM)
• Grid infrastructure TMUX4051 PW (TSSOP, 16) 5.00 mm × 4.40 mm TMUX4052 DYY (SOT-23-THIN, 16) 4.20 mm × 2.00 mm TMUX4053 BQB (WQFN, 16) 3.50 mm × 2.50 mm (1) For all available packages, see the package option addendum at the end of the data sheet. (2) See the Device Comparison Table
TMUX4051 TMUX4052 TMUX4053
S0A S1A S0 D1 S1A S1B S1 DA S2A S2 S3A S3 S2A D D2 S4 S0B S2B S5 S1B DB S6 S2B S3A D3 S7 S3B S3B
1-OF-8 1-OF-4 LOGIC CONTROL DECODER DECODER
SEL1 SEL2 SEL3 A2 A1 A0 EN A1 A0 EN EN
TMUX4051, TMUX4052, and TMUX4053 Block Diagram
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Table 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 ESD Ratings 7.3 Thermal Information: TMUX405x 7.4 Recommended Operating Conditions 7.5 Electrical Characteristics 7.6 AC Performance Characteristics 7.7 Timing Characteristics 7.8 Typical Characteristics 8 Parameter Measurement Information 8.1 On-Resistance 8.2 Off-Leakage Current 8.3 On-Leakage Current 8.4 Transition Time 8.5 Break-Before-Make 8.6 tON(EN) and tOFF(EN) 8.7 Propagation Delay 8.8 Charge Injection 8.9 Off Isolation 8.10 Crosstalk 8.11 Bandwidth 9 Detailed Description 9.1 Overview 9.2 Functional Block Diagram 9.3 Feature Description 9.3.1 Bidirectional Operation 9.3.2 Rail-to-Rail Operation 9.3.3 1.8 V Logic Compatible Inputs 9.3.4 Device Functional Modes 9.3.5 Truth Tables 10 Application and Implementation 10.1 Application Information 10.2 Typical Application 10.3 Design Requirements 10.4 Detailed Design Procedure 10.5 Application Curves 10.6 Power Supply Recommendations 10.7 Layout 10.7.1 Layout Guidelines 10.7.2 Layout Example 11 Device and Documentation Support 11.1 Documentation Support 11.1.1 Related Documentation 11.2 Receiving Notification of Documentation Updates 11.3 Support Resources 11.4 Trademarks 11.5 Electrostatic Discharge Caution 11.6 Glossary 12 Mechanical, Packaging, and Orderable Information Sheets and Views 4224642(B)-02_PKG_OUTLINE 4224642(B)-03_BOARD_LAYOUT 4224642(B)-04_STENCIL Sheets and Views 4224640-02_PKG_OULINE 4224640-03_BOARD_LAYOUT 4224640-04_STENCIL
