SiC967
www.vishay.com Vishay Siliconix

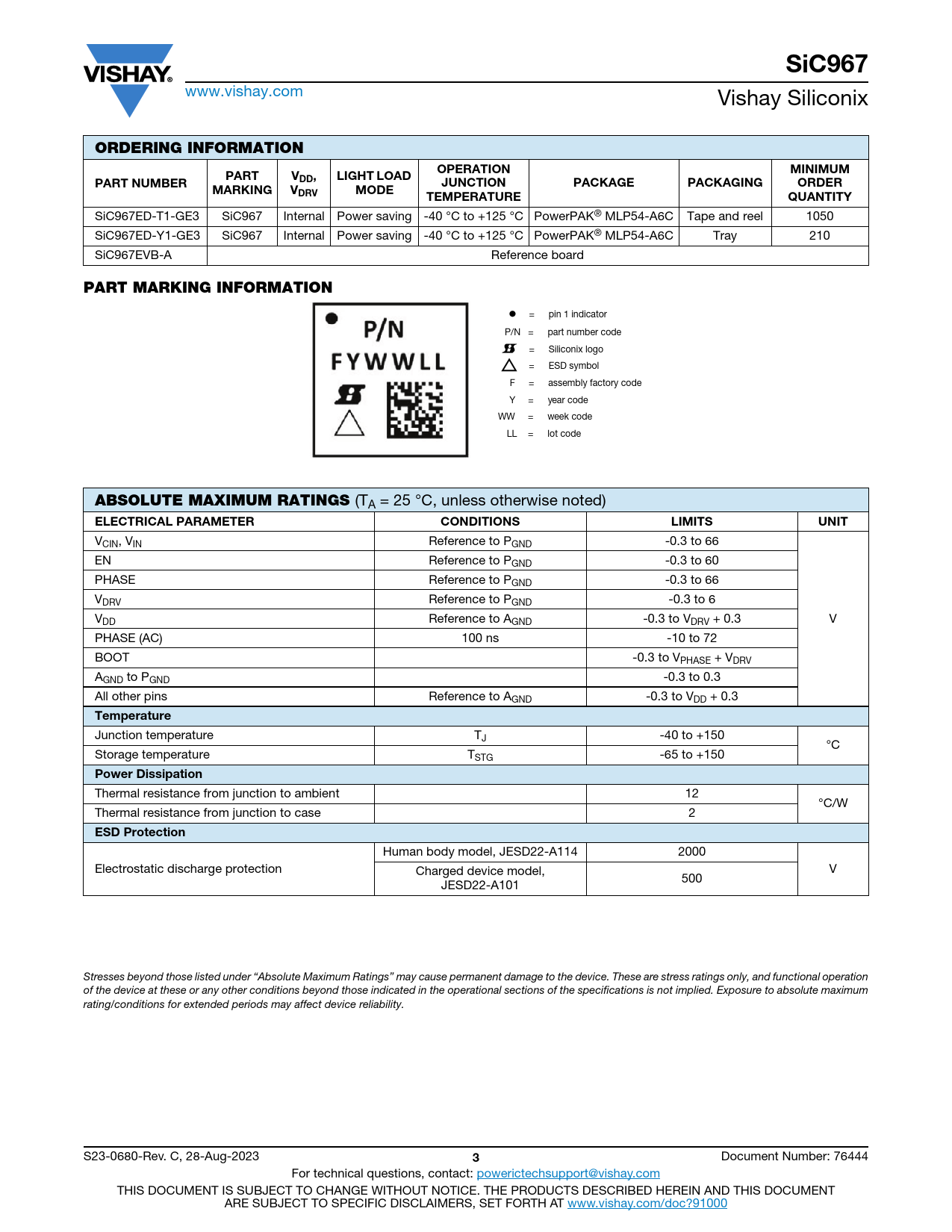

ORDERING INFORMATION OPERATION MINIMUM PART V LIGHT LOAD PART NUMBER DD, JUNCTION PACKAGE PACKAGING ORDER MARKING VDRV MODE TEMPERATURE QUANTITY
SiC967ED-T1-GE3 SiC967 Internal Power saving -40 °C to +125 °C PowerPAK® MLP54-A6C Tape and reel 1050 SiC967ED-Y1-GE3 SiC967 Internal Power saving -40 °C to +125 °C PowerPAK® MLP54-A6C Tray 210 SiC967EVB-A Reference board
PART MARKING INFORMATION
= pin 1 indicator P/N = part number code = Siliconix logo = ESD symbol F = assembly factory code Y = year code WW = week code LL = lot code
ABSOLUTE MAXIMUM RATINGS
(TA = 25 °C, unless otherwise noted)
ELECTRICAL PARAMETER CONDITIONS LIMITS UNIT
VCIN, VIN Reference to PGND -0.3 to 66 EN Reference to PGND -0.3 to 60 PHASE Reference to PGND -0.3 to 66 VDRV Reference to PGND -0.3 to 6 VDD Reference to AGND -0.3 to VDRV + 0.3 V PHASE (AC) 100 ns -10 to 72 BOOT -0.3 to VPHASE + VDRV AGND to PGND -0.3 to 0.3 All other pins Reference to AGND -0.3 to VDD + 0.3
Temperature
Junction temperature TJ -40 to +150 °C Storage temperature TSTG -65 to +150
Power Dissipation
Thermal resistance from junction to ambient 12 °C/W Thermal resistance from junction to case 2
ESD Protection
Human body model, JESD22-A114 2000 Electrostatic discharge protection V Charged device model, 500 JESD22-A101 Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating/conditions for extended periods may affect device reliability. S23-0680-Rev. C, 28-Aug-2023
