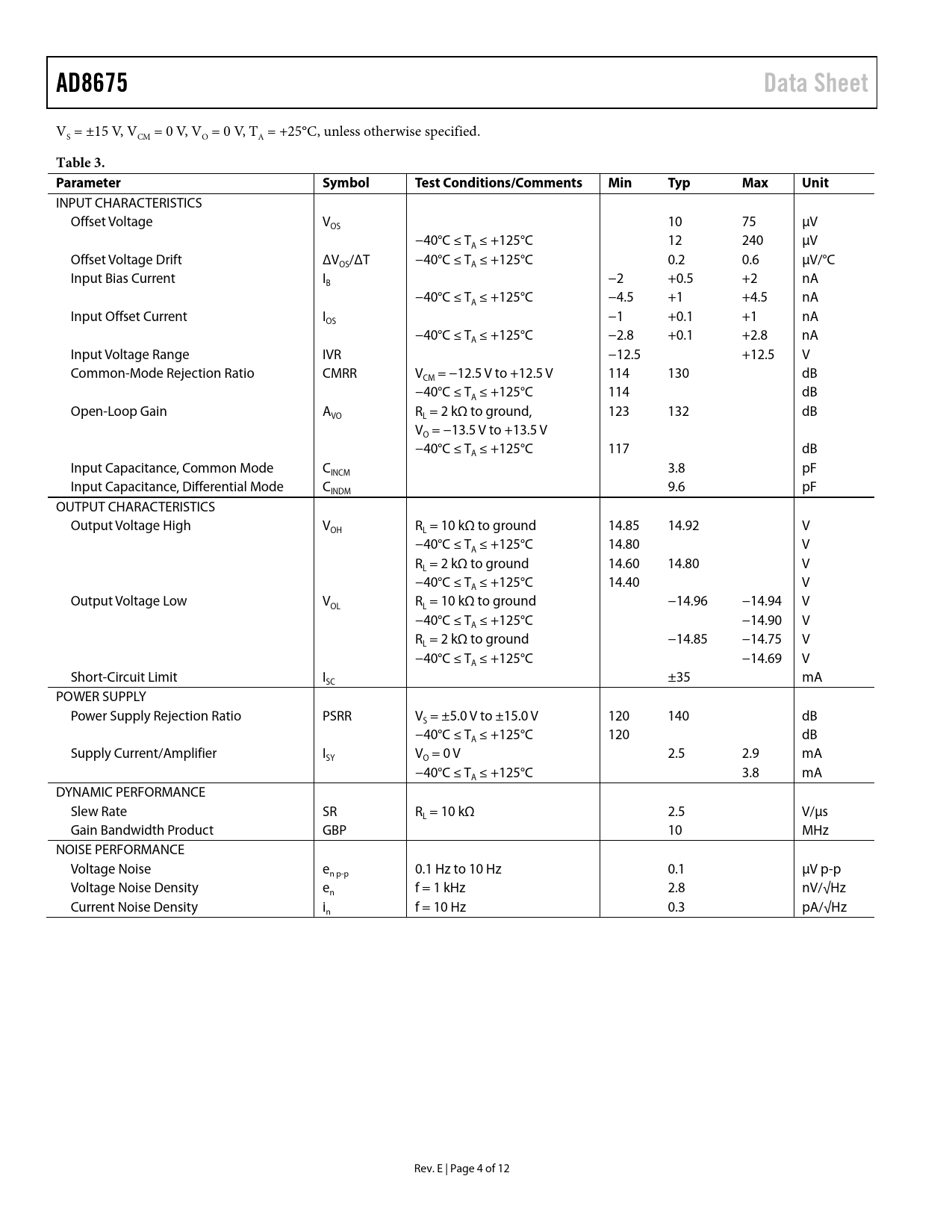

AD8675 Data Sheet
VS = ±15 V, VCM = 0 V, VO = 0 V, TA = +25°C, unless otherwise specified.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage V 10 75 µV OS −40°C ≤ T ≤ +125°C 12 240 µV A Offset Voltage Drift ΔV /ΔT −40°C ≤ T ≤ +125°C 0.2 0.6 µV/°C OS A Input Bias Current I −2 +0.5 +2 nA B −40°C ≤ T ≤ +125°C −4.5 +1 +4.5 nA A Input Offset Current I −1 +0.1 +1 nA OS −40°C ≤ T ≤ +125°C −2.8 +0.1 +2.8 nA A Input Voltage Range IVR −12.5 +12.5 V Common-Mode Rejection Ratio CMRR V = −12.5 V to +12.5 V 114 130 dB CM −40°C ≤ T ≤ +125°C 114 dB A Open-Loop Gain A R = 2 kΩ to ground, 123 132 dB VO L V = −13.5 V to +13.5 V O −40°C ≤ T ≤ +125°C 117 dB A Input Capacitance, Common Mode C 3.8 pF INCM Input Capacitance, Differential Mode C 9.6 pF INDM OUTPUT CHARACTERISTICS Output Voltage High V R = 10 kΩ to ground 14.85 14.92 V OH L −40°C ≤ T ≤ +125°C 14.80 V A R = 2 kΩ to ground 14.60 14.80 V L −40°C ≤ T ≤ +125°C 14.40 V A Output Voltage Low V R = 10 kΩ to ground −14.96 −14.94 V OL L −40°C ≤ T ≤ +125°C −14.90 V A R = 2 kΩ to ground −14.85 −14.75 V L −40°C ≤ T ≤ +125°C −14.69 V A Short-Circuit Limit I ±35 mA SC POWER SUPPLY Power Supply Rejection Ratio PSRR V = ±5.0 V to ±15.0 V 120 140 dB S −40°C ≤ T ≤ +125°C 120 dB A Supply Current/Amplifier I V = 0 V 2.5 2.9 mA SY O −40°C ≤ T ≤ +125°C 3.8 mA A DYNAMIC PERFORMANCE Slew Rate SR R = 10 kΩ 2.5 V/µs L Gain Bandwidth Product GBP 10 MHz NOISE PERFORMANCE Voltage Noise e 0.1 Hz to 10 Hz 0.1 µV p-p n p-p Voltage Noise Density e f = 1 kHz 2.8 nV/√Hz n Current Noise Density i f = 10 Hz 0.3 pA/√Hz n Rev. E | Page 4 of 12 Document Outline Features Applications General Description Pin Configurations Table of Contents Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance Power Sequencing ESD Caution Typical Performance Characteristics Test Circuit Outline Dimensions Ordering Guide
