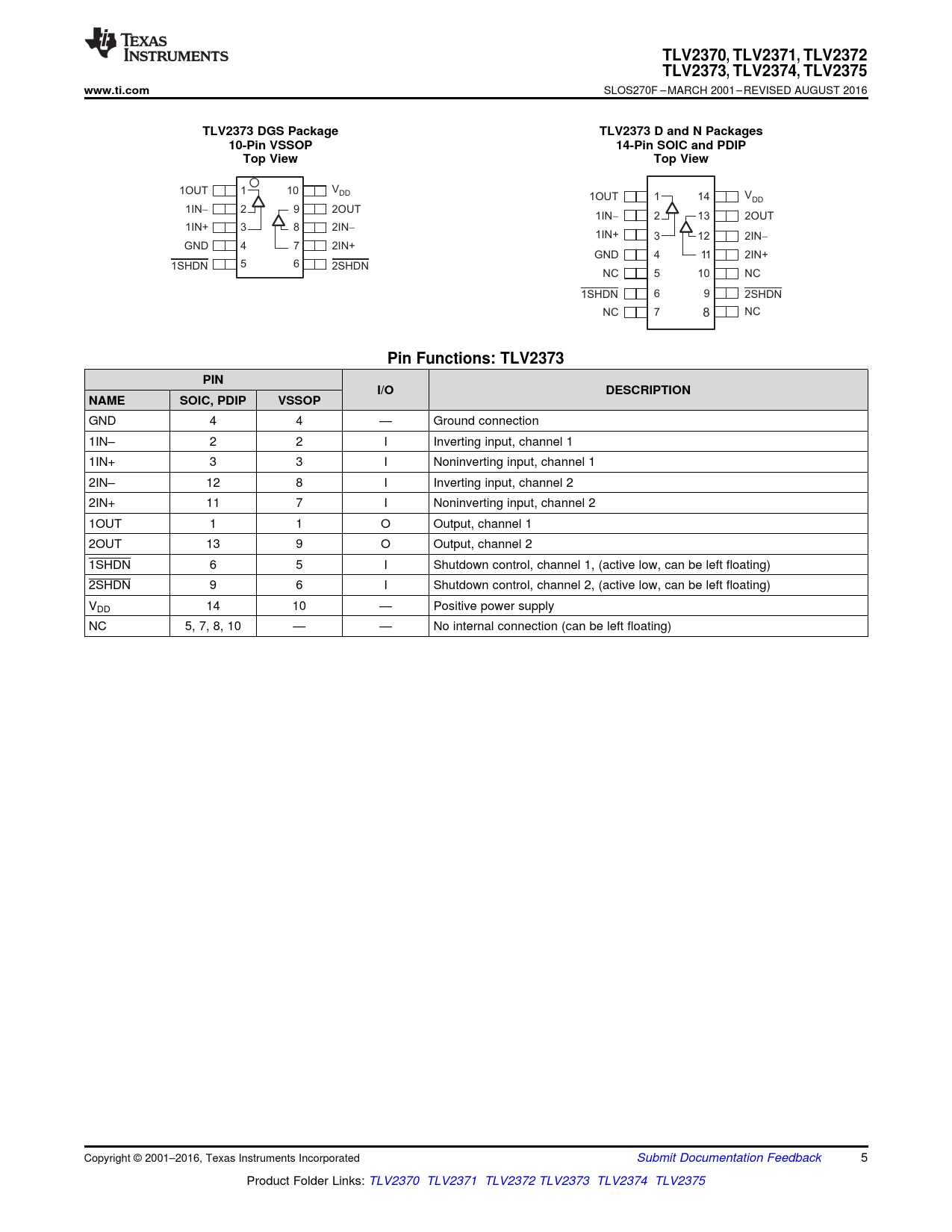

TLV2370,. TLV2371. , TLV2372. TLV2373,. TLV2374. , TLV2375. www.ti.com. TLV2373 DGS Package. TLV2373 D and N Packages. 10-Pin VSSOP
Text Version of Document
TLV2370, TLV2371 , TLV2372 TLV2373, TLV2374 , TLV2375 www.ti.com
SLOS270F – MARCH 2001 – REVISED AUGUST 2016
TLV2373 DGS Package TLV2373 D and N Packages 10-Pin VSSOP 14-Pin SOIC and PDIP Top View Top View
1OUT 1 10 VDD 1OUT 1 14 VDD 1IN 2 9 2OUT - 1IN 2 13 2OUT - 1IN+ 3 8 2IN- 1IN+ 3 12 2IN- GND 4 7 2IN+ GND 4 11 2IN+ 5 1SHDN 6 2SHDN NC 5 10 NC 1SHDN 6 9 2SHDN NC 7 8 NC
Pin Functions: TLV2373 PIN I/O DESCRIPTION NAME SOIC, PDIP VSSOP
GND 4 4 — Ground connection 1IN– 2 2 I Inverting input, channel 1 1IN+ 3 3 I Noninverting input, channel 1 2IN– 12 8 I Inverting input, channel 2 2IN+ 11 7 I Noninverting input, channel 2 1OUT 1 1 O Output, channel 1 2OUT 13 9 O Output, channel 2 1SHDN 6 5 I Shutdown control, channel 1, (active low, can be left floating) 2SHDN 9 6 I Shutdown control, channel 2, (active low, can be left floating) VDD 14 10 — Positive power supply NC 5, 7, 8, 10 — — No internal connection (can be left floating) Copyright © 2001–2016, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: TLV2370 TLV2371 TLV2372 TLV2373 TLV2374 TLV2375 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Tables 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 Recommended Operating Conditions 7.3 Thermal Information: TLV2370 7.4 Thermal Information: TLV2371 7.5 Thermal Information: TLV2372 7.6 Thermal Information: TLV2373 7.7 Thermal Information: TLV2374 7.8 Thermal Information: TLV2375 7.9 Electrical Characteristics 7.10 Typical Characteristics 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Rail-to-Rail Input Operation 8.3.2 Driving a Capacitive Load 8.3.3 Offset Voltage 8.3.4 General Configurations 8.3.5 Shutdown Function 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 11.3 Power Dissipation Considerations 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation 12.2 Related Links 12.3 Receiving Notification of Documentation Updates 12.4 Community Resources 12.5 Trademarks 12.6 Electrostatic Discharge Caution 12.7 Glossary 13 Mechanical, Packaging, and Orderable Information
