150 μV Maximum Offset Voltage Op Amp. OP07D. FEATURES. PIN CONFIGURATIONS. Low offset voltage: 150 µV max. NULL

Datasheet OP07D Analog Devices, Revision: A

Text Version of Document

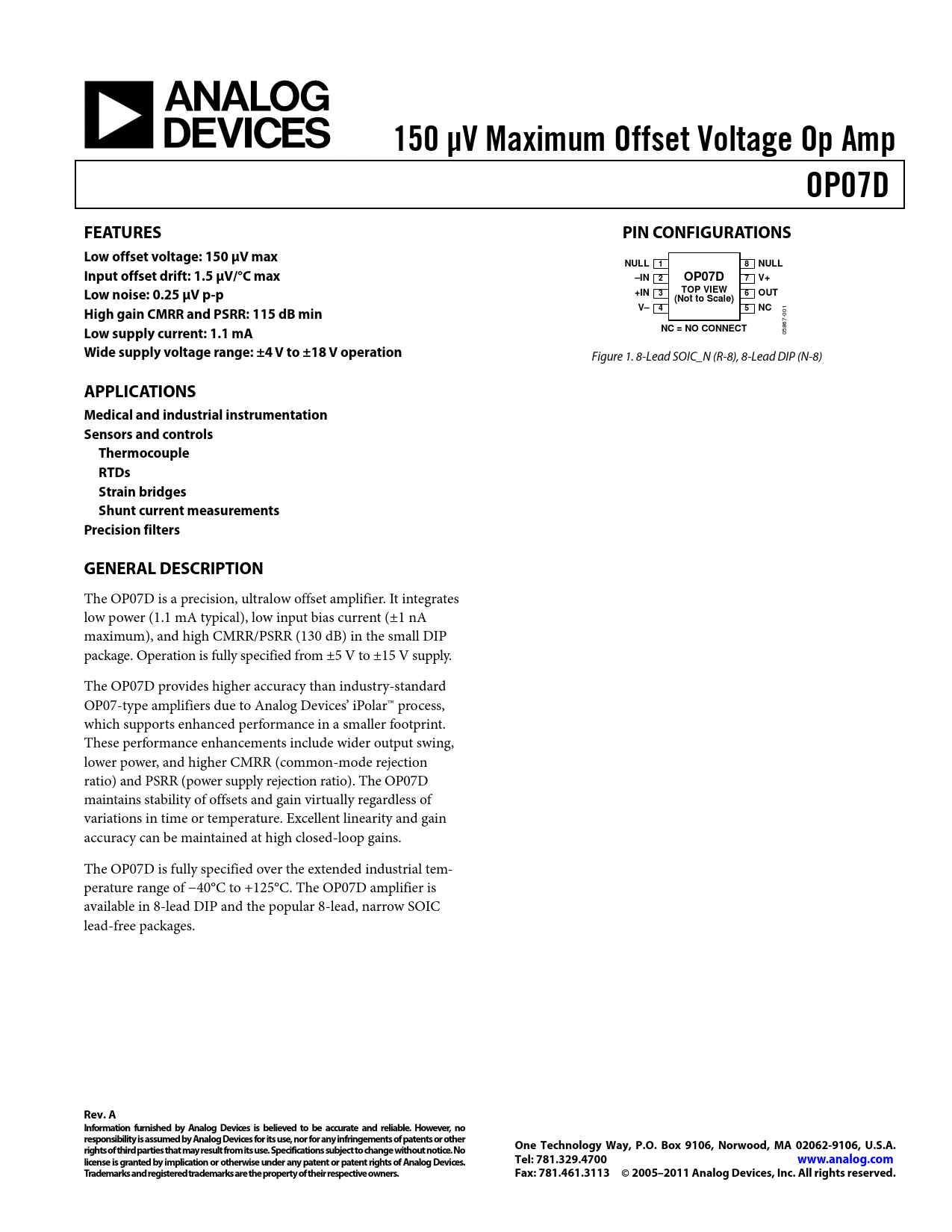

150 μV Maximum Offset Voltage Op Amp OP07D FEATURES PIN CONFIGURATIONS Low offset voltage: 150 µV max NULL 1 8 NULL Input offset drift: 1.5 µV/°C max –IN 2 OP07D 7 V+ Low noise: 0.25 μV p-p TOP VIEW +IN 3 6 OUT (Not to Scale) High gain CMRR and PSRR: 115 dB min V– 4 5 NC
001
Low supply current: 1.1 mA NC = NO CONNECT
05867-
Wide supply voltage range: ±4 V to ±18 V operation
Figure 1. 8-Lead SOIC_N (R-8), 8-Lead DIP (N-8)
APPLICATIONS Medical and industrial instrumentation Sensors and controls Thermocouple RTDs Strain bridges Shunt current measurements Precision filters GENERAL DESCRIPTION
The OP07D is a precision, ultralow offset amplifier. It integrates low power (1.1 mA typical), low input bias current (±1 nA maximum), and high CMRR/PSRR (130 dB) in the small DIP package. Operation is ful y specified from ±5 V to ±15 V supply. The OP07D provides higher accuracy than industry-standard OP07-type amplifiers due to Analog Devices’ iPolar™ process, which supports enhanced performance in a smal er footprint. These performance enhancements include wider output swing, lower power, and higher CMRR (common-mode rejection ratio) and PSRR (power supply rejection ratio). The OP07D maintains stability of offsets and gain virtually regardless of variations in time or temperature. Excel ent linearity and gain accuracy can be maintained at high closed-loop gains. The OP07D is fully specified over the extended industrial tem- perature range of −40°C to +125°C. The OP07D amplifier is available in 8-lead DIP and the popular 8-lead, narrow SOIC lead-free packages.
