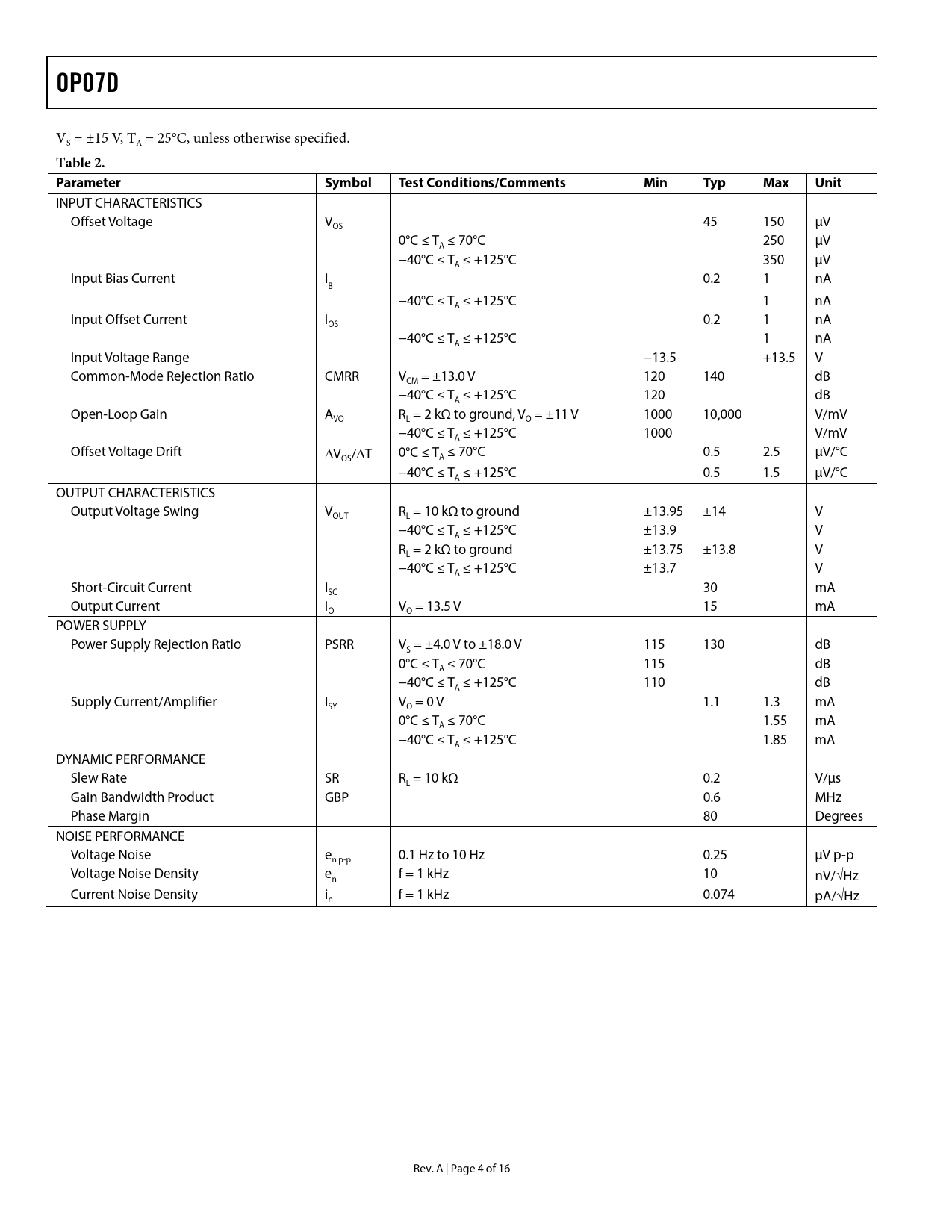

OP07D. Table 2. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
Text Version of Document
OP07D
VS = ±15 V, TA = 25°C, unless otherwise specified.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage V 45 150 μV OS 0°C ≤ T ≤ 70°C 250 μV A −40°C ≤ T ≤ +125°C 350 μV A Input Bias Current I 0.2 1 nA B −40°C ≤ T ≤ +125°C 1 nA A Input Offset Current I 0.2 1 nA OS −40°C ≤ T ≤ +125°C 1 nA A Input Voltage Range −13.5 +13.5 V Common-Mode Rejection Ratio CMRR V = ±13.0 V 120 140 dB CM −40°C ≤ T ≤ +125°C 120 dB A Open-Loop Gain A R = 2 kΩ to ground, V = ±11 V 1000 10,000 V/mV VO L O −40°C ≤ T ≤ +125°C 1000 V/mV A Offset Voltage Drift ∆V /∆T 0°C ≤ T ≤ 70°C 0.5 2.5 μV/°C OS A −40°C ≤ T ≤ +125°C 0.5 1.5 μV/°C A OUTPUT CHARACTERISTICS Output Voltage Swing V R = 10 kΩ to ground ±13.95 ±14 V OUT L −40°C ≤ T ≤ +125°C ±13.9 V A R = 2 kΩ to ground ±13.75 ±13.8 V L −40°C ≤ T ≤ +125°C ±13.7 V A Short-Circuit Current I 30 mA SC Output Current I V = 13.5 V 15 mA O O POWER SUPPLY Power Supply Rejection Ratio PSRR V = ±4.0 V to ±18.0 V 115 130 dB S 0°C ≤ T ≤ 70°C 115 dB A −40°C ≤ T ≤ +125°C 110 dB A Supply Current/Amplifier I V = 0 V 1.1 1.3 mA SY O 0°C ≤ T ≤ 70°C 1.55 mA A −40°C ≤ T ≤ +125°C 1.85 mA A DYNAMIC PERFORMANCE Slew Rate SR R = 10 kΩ 0.2 V/μs L Gain Bandwidth Product GBP 0.6 MHz Phase Margin 80 Degrees NOISE PERFORMANCE Voltage Noise e 0.1 Hz to 10 Hz 0.25 μV p-p n p-p Voltage Noise Density e f = 1 kHz 10 n nV/√Hz Current Noise Density i f = 1 kHz 0.074 n pA/√Hz Rev. A | Page 4 of 16 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
VS = ±15 V, TA = 25°C, unless otherwise specified.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage V 45 150 μV OS 0°C ≤ T ≤ 70°C 250 μV A −40°C ≤ T ≤ +125°C 350 μV A Input Bias Current I 0.2 1 nA B −40°C ≤ T ≤ +125°C 1 nA A Input Offset Current I 0.2 1 nA OS −40°C ≤ T ≤ +125°C 1 nA A Input Voltage Range −13.5 +13.5 V Common-Mode Rejection Ratio CMRR V = ±13.0 V 120 140 dB CM −40°C ≤ T ≤ +125°C 120 dB A Open-Loop Gain A R = 2 kΩ to ground, V = ±11 V 1000 10,000 V/mV VO L O −40°C ≤ T ≤ +125°C 1000 V/mV A Offset Voltage Drift ∆V /∆T 0°C ≤ T ≤ 70°C 0.5 2.5 μV/°C OS A −40°C ≤ T ≤ +125°C 0.5 1.5 μV/°C A OUTPUT CHARACTERISTICS Output Voltage Swing V R = 10 kΩ to ground ±13.95 ±14 V OUT L −40°C ≤ T ≤ +125°C ±13.9 V A R = 2 kΩ to ground ±13.75 ±13.8 V L −40°C ≤ T ≤ +125°C ±13.7 V A Short-Circuit Current I 30 mA SC Output Current I V = 13.5 V 15 mA O O POWER SUPPLY Power Supply Rejection Ratio PSRR V = ±4.0 V to ±18.0 V 115 130 dB S 0°C ≤ T ≤ 70°C 115 dB A −40°C ≤ T ≤ +125°C 110 dB A Supply Current/Amplifier I V = 0 V 1.1 1.3 mA SY O 0°C ≤ T ≤ 70°C 1.55 mA A −40°C ≤ T ≤ +125°C 1.85 mA A DYNAMIC PERFORMANCE Slew Rate SR R = 10 kΩ 0.2 V/μs L Gain Bandwidth Product GBP 0.6 MHz Phase Margin 80 Degrees NOISE PERFORMANCE Voltage Noise e 0.1 Hz to 10 Hz 0.25 μV p-p n p-p Voltage Noise Density e f = 1 kHz 10 n nV/√Hz Current Noise Density i f = 1 kHz 0.074 n pA/√Hz Rev. A | Page 4 of 16 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
