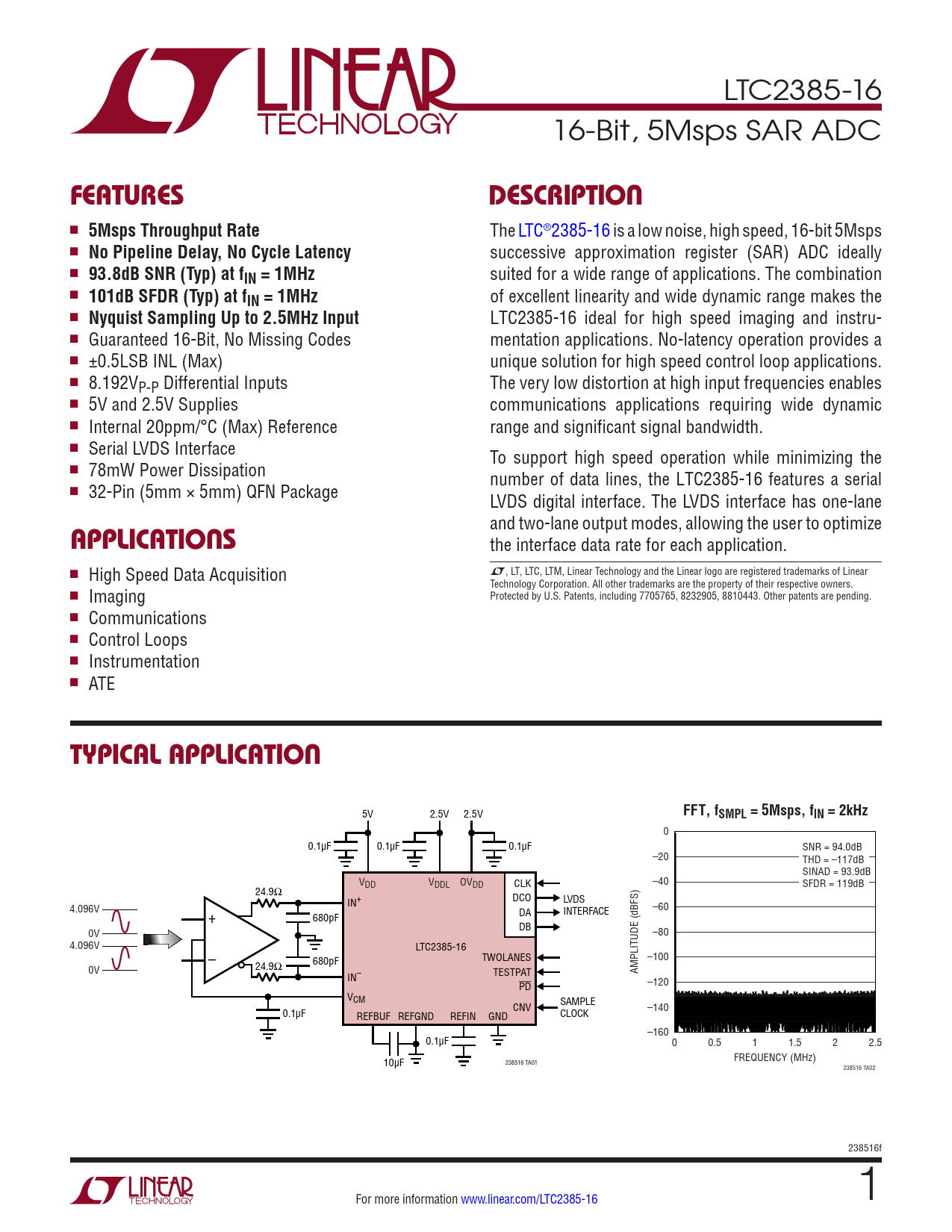

LTC2385-16 16-Bit, 5Msps SAR ADC
FEATURES DESCRIPTION
n
5Msps Throughput Rate
The LTC®2385-16 is a low noise, high speed, 16-bit 5Msps n
No Pipeline Delay, No Cycle Latency
successive approximation register (SAR) ADC ideally n
93.8dB SNR (Typ) at fIN = 1MHz
suited for a wide range of applications. The combination n
101dB SFDR (Typ) at fIN = 1MHz
of excellent linearity and wide dynamic range makes the n
Nyquist Sampling Up to 2.5MHz Input
LTC2385-16 ideal for high speed imaging and instru- n Guaranteed 16-Bit, No Missing Codes mentation applications. No-latency operation provides a n ±0.5LSB INL (Max) unique solution for high speed control loop applications. n 8.192VP-P Differential Inputs The very low distortion at high input frequencies enables n 5V and 2.5V Supplies communications applications requiring wide dynamic n Internal 20ppm/°C (Max) Reference range and significant signal bandwidth. n Serial LVDS Interface To support high speed operation while minimizing the n 78mW Power Dissipation number of data lines, the LTC2385-16 features a serial n 32-Pin (5mm × 5mm) QFN Package LVDS digital interface. The LVDS interface has one-lane and two-lane output modes, allowing the user to optimize
APPLICATIONS
the interface data rate for each application. n High Speed Data Acquisition L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Imaging Protected by U.S. Patents, including 7705765, 8232905, 8810443. Other patents are pending. n Communications n Control Loops n Instrumentation n ATE
