Datasheet LTC6091 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Dual 140V, Rail-to-Rail Output, Picoamp Input Current Op Amp |
| Pages / Page | 22 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| File Format / Size | PDF / 553 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC6091

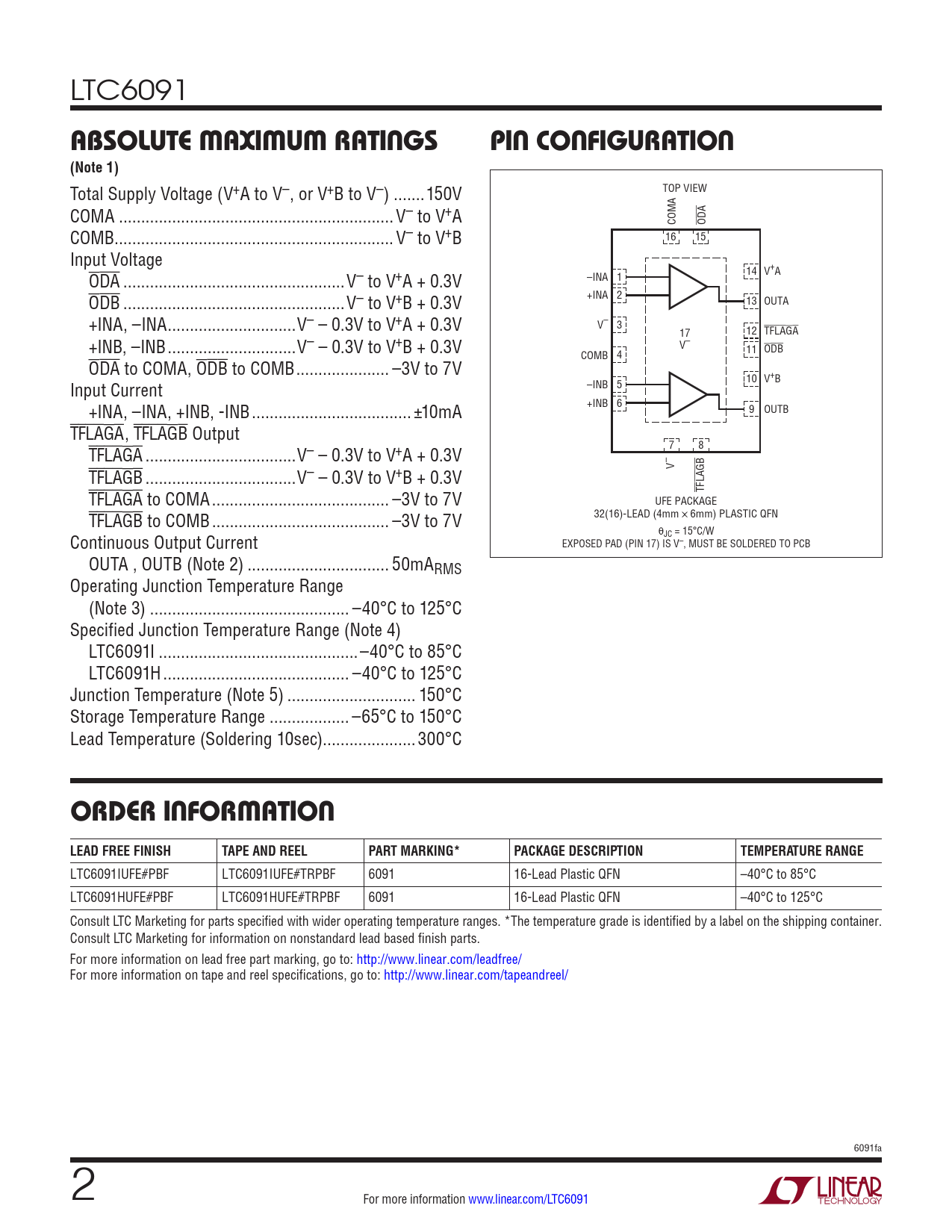

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage (V+A to V–, or V+B to V–) ...150V TOP VIEW COMA .. V– to V+A COMA ODA COMB ... V– to V+B 16 15 Input Voltage ODA ..V– to V+A + 0.3V –INA 14 V+A 1 ODB ..V– to V+B + 0.3V +INA 2 13 OUTA +INA, –INA ...V– – 0.3V to V+A + 0.3V V– 3 17 12 TFLAGA +INB, –INB ...V– – 0.3V to V+B + 0.3V V– 11 ODB COMB 4 ODA to COMA, ODB to COMB ... –3V to 7V Input Current –INB 5 10 V+B +INA, –INA, +INB, -INB .. ±10mA +INB 6 9 OUTB TFLAGA, TFLAGB Output TFLAGA ..V– – 0.3V to V+A + 0.3V 7 8 – V TFLAGB ..V– – 0.3V to V+B + 0.3V TFLAGA to COMA .. –3V to 7V TFLAGB UFE PACKAGE TFLAGB to COMB .. –3V to 7V 32(16)-LEAD (4mm × 6mm) PLASTIC QFN Continuous Output Current θJC = 15°C/W EXPOSED PAD (PIN 17) IS V–, MUST BE SOLDERED TO PCB OUTA , OUTB (Note 2) .. 50mARMS Operating Junction Temperature Range (Note 3) ... –40°C to 125°C Specified Junction Temperature Range (Note 4) LTC6091I ...–40°C to 85°C LTC6091H .. –40°C to 125°C Junction Temperature (Note 5) ... 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering 10sec)...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6091IUFE#PBF LTC6091IUFE#TRPBF 6091 16-Lead Plastic QFN –40°C to 85°C LTC6091HUFE#PBF LTC6091HUFE#TRPBF 6091 16-Lead Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 6091fa 2 For more information www.linear.com/LTC6091 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
