Datasheet LT1806, LT1807 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 325MHz, Single, Rail-to-Rail Input and Output, Low Distortion, Low Noise Precision Op Amps |
| Pages / Page | 28 / 1 — FEATURES. DESCRIPTION. Gain-Bandwidth Product: 325MHz. Slew Rate: … |
| File Format / Size | PDF / 346 Kb |
| Document Language | English |
FEATURES. DESCRIPTION. Gain-Bandwidth Product: 325MHz. Slew Rate: 140V/μs. Wide Supply Range: 2.5V to 12.6V
Model Line for this Datasheet
Text Version of Document

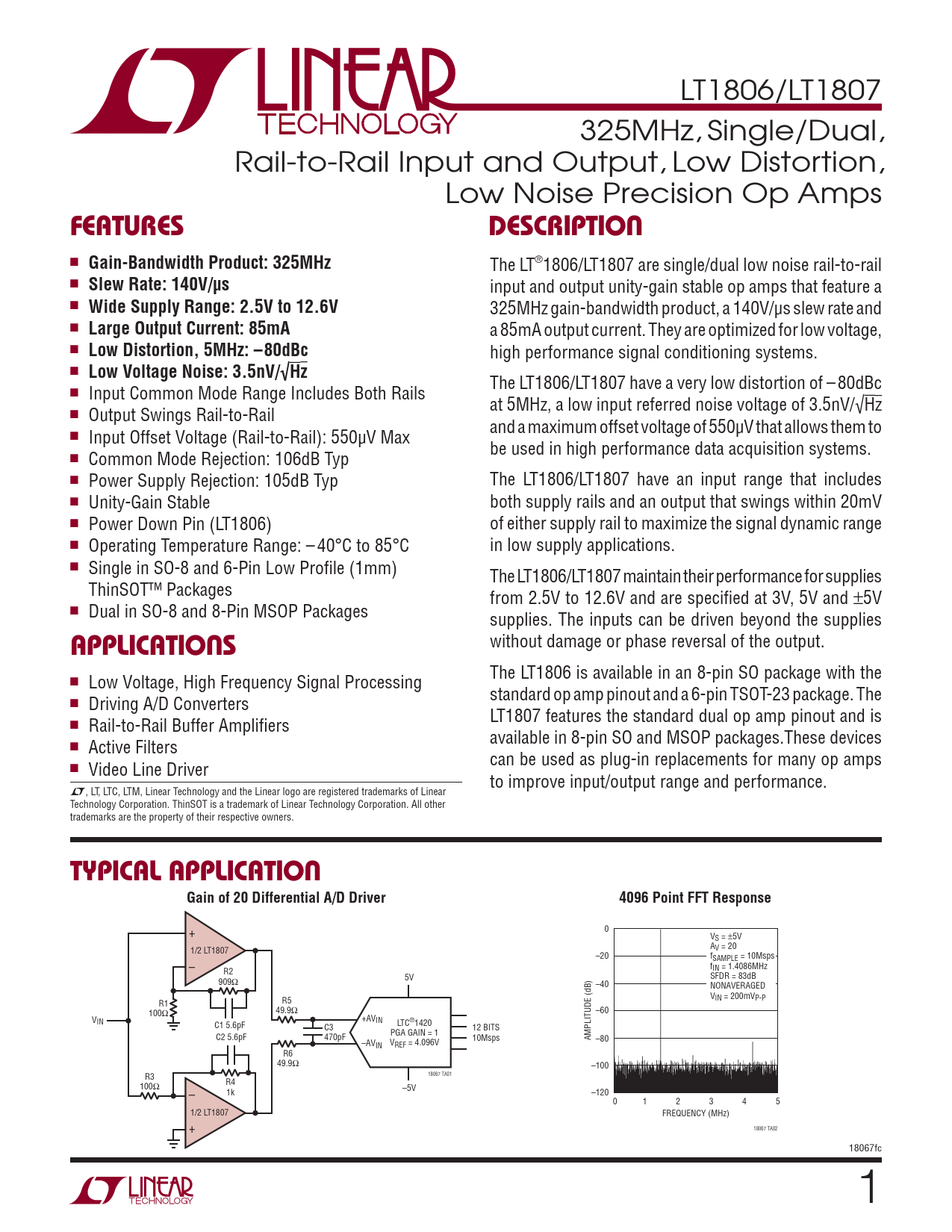

LT1806/LT1807 325MHz, Single/Dual, Rail-to-Rail Input and Output, Low Distortion, Low Noise Precision Op Amps
FEATURES DESCRIPTION
n
Gain-Bandwidth Product: 325MHz
The LT®1806/LT1807 are single/dual low noise rail-to-rail n
Slew Rate: 140V/μs
input and output unity-gain stable op amps that feature a n
Wide Supply Range: 2.5V to 12.6V
325MHz gain-bandwidth product, a 140V/μs slew rate and n
Large Output Current: 85mA
a 85mA output current. They are optimized for low voltage, n
Low Distortion, 5MHz: –80dBc
high performance signal conditioning systems. n
Low Voltage Noise: 3.5nV/√Hz
The LT1806/LT1807 have a very low distortion of – 80dBc n Input Common Mode Range Includes Both Rails at 5MHz, a low input referred noise voltage of 3.5nV/√Hz n Output Swings Rail-to-Rail and a maximum offset voltage of 550μV that allows them to n Input Offset Voltage (Rail-to-Rail): 550μV Max be used in high performance data acquisition systems. n Common Mode Rejection: 106dB Typ n Power Supply Rejection: 105dB Typ The LT1806/LT1807 have an input range that includes n Unity-Gain Stable both supply rails and an output that swings within 20mV n Power Down Pin (LT1806) of either supply rail to maximize the signal dynamic range n Operating Temperature Range: – 40°C to 85°C in low supply applications. n Single in SO-8 and 6-Pin Low Profi le (1mm) The LT1806/LT1807 maintain their performance for supplies ThinSOT™ Packages from 2.5V to 12.6V and are specifi ed at 3V, 5V and ±5V n Dual in SO-8 and 8-Pin MSOP Packages supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.
APPLICATIONS
The LT1806 is available in an 8-pin SO package with the n Low Voltage, High Frequency Signal Processing standard op amp pinout and a 6-pin TSOT-23 package. The n Driving A/D Converters LT1807 features the standard dual op amp pinout and is n Rail-to-Rail Buffer Amplifi ers available in 8-pin SO and MSOP packages.These devices n Active Filters can be used as plug-in replacements for many op amps n Video Line Driver to improve input/output range and performance. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION Gain of 20 Differential A/D Driver 4096 Point FFT Response
+ 0 VS = p5V A 1/2 LT1807 V = 20 –20 fSAMPLE = 10Msps – f R2 IN = 1.4086MHz 5V SFDR = 83dB 909Ω –40 NONAVERAGED V R5 IN = 200mVP-P R1 49.9Ω 100Ω –60 V +AV IN IN C1 5.6pF LTC®1420 C3 12 BITS PGA GAIN = 1 C2 5.6pF 470pF 10Msps AMPLITUDE (dB) –80 –AV V IN REF = 4.096V R6 49.9Ω –100 R3 18067 TA01 R4 100Ω –5V – 1k –120 0 1 2 3 4 5 1/2 LT1807 FREQUENCY (MHz) + 18067 TA02 18067fc 1
