| Description | Automotive-Grade, Galvanically Isolated Current Sensor IC With Common-Mode Field Rejection in a Small-Footprint SOIC8 Package |
| Pages / Page | 33 / 2 — Automotive-Grade, Galvanically Isolated Current Sensor IC. ACS724 |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
Automotive-Grade, Galvanically Isolated Current Sensor IC. ACS724
Model Line for this Datasheet
Text Version of Document

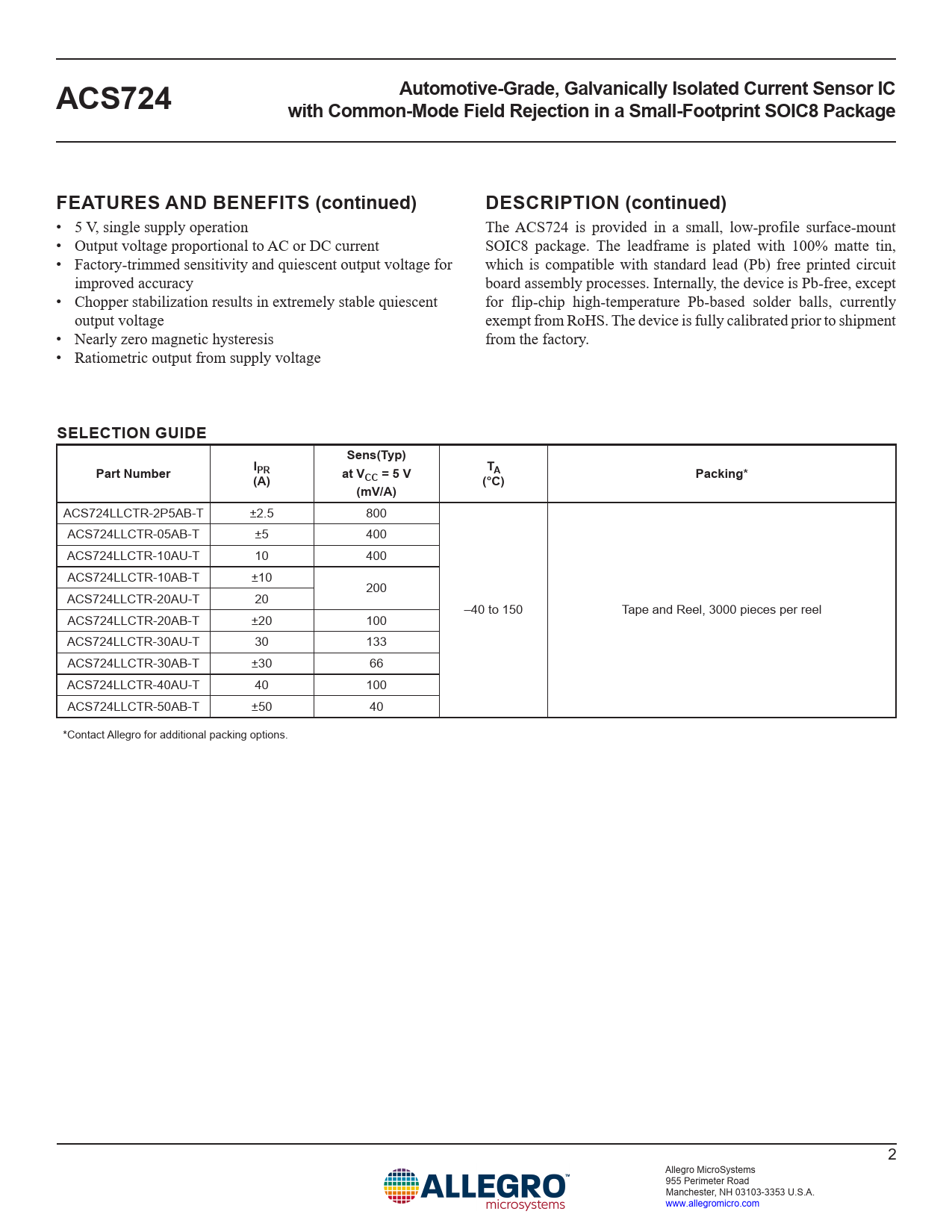

Automotive-Grade, Galvanically Isolated Current Sensor IC ACS724 with Common-Mode Field Rejection in a Small-Footprint SOIC8 Package FEATURES AND BENEFITS (continued) DESCRIPTION (continued)
• 5 V, single supply operation The ACS724 is provided in a small, low-profile surface-mount • Output voltage proportional to AC or DC current SOIC8 package. The leadframe is plated with 100% matte tin, • Factory-trimmed sensitivity and quiescent output voltage for which is compatible with standard lead (Pb) free printed circuit improved accuracy board assembly processes. Internally, the device is Pb-free, except • Chopper stabilization results in extremely stable quiescent for flip-chip high-temperature Pb-based solder balls, currently output voltage exempt from RoHS. The device is fully calibrated prior to shipment • Nearly zero magnetic hysteresis from the factory. • Ratiometric output from supply voltage
SELECTION GUIDE Sens(Typ) Part Number IPR TA (A) at VCC = 5 V (°C) Packing* (mV/A)
ACS724LLCTR-2P5AB-T ±2.5 800 ACS724LLCTR-05AB-T ±5 400 ACS724LLCTR-10AU-T 10 400 ACS724LLCTR-10AB-T ±10 200 ACS724LLCTR-20AU-T 20 –40 to 150 Tape and Reel, 3000 pieces per reel ACS724LLCTR-20AB-T ±20 100 ACS724LLCTR-30AU-T 30 133 ACS724LLCTR-30AB-T ±30 66 ACS724LLCTR-40AU-T 40 100 ACS724LLCTR-50AB-T ±50 40 *Contact Allegro for additional packing options. 2 Allegro MicroSystems 955 Perimeter Road Manchester, NH 03103-3353 U.S.A. www.allegromicro.com
