BD136G, BD138G, BD140G. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Max. Unit. TYPICAL CHARACTERISTICS

BD136G, BD138G, BD140G ELECTRICAL CHARACTERISTICS Characteristic Symbol Min Max Unit TYPICAL CHARACTERISTICS

Model Line for this Datasheet

Text Version of Document

link to page 2 link to page 2 link to page 2

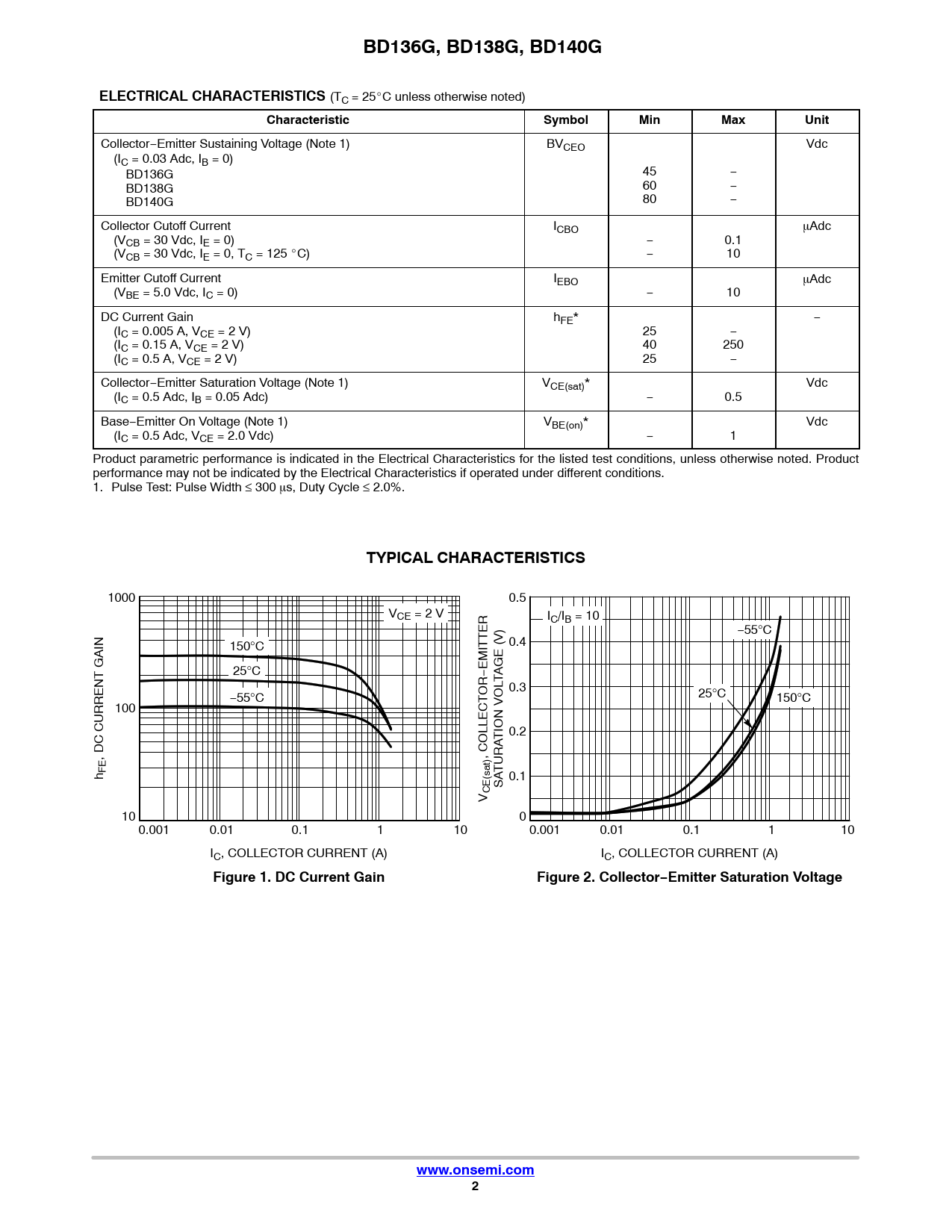

BD136G, BD138G, BD140G ELECTRICAL CHARACTERISTICS
(TC = 25_C unless otherwise noted)
Characteristic Symbol Min Max Unit
Collector−Emitter Sustaining Voltage (Note 1) BVCEO Vdc (IC = 0.03 Adc, IB = 0) BD136G 45 − BD138G 60 − BD140G 80 − Collector Cutoff Current ICBO mAdc (VCB = 30 Vdc, IE = 0) − 0.1 (VCB = 30 Vdc, IE = 0, TC = 125 _C) − 10 Emitter Cutoff Current IEBO mAdc (VBE = 5.0 Vdc, IC = 0) − 10 DC Current Gain hFE* − (IC = 0.005 A, VCE = 2 V) 25 − (IC = 0.15 A, VCE = 2 V) 40 250 (IC = 0.5 A, VCE = 2 V) 25 − Collector−Emitter Saturation Voltage (Note 1) VCE(sat)* Vdc (IC = 0.5 Adc, IB = 0.05 Adc) − 0.5 Base−Emitter On Voltage (Note 1) VBE(on)* Vdc (IC = 0.5 Adc, VCE = 2.0 Vdc) − 1 Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2.0%.
TYPICAL CHARACTERISTICS
1000 0.5 VCE = 2 V IC/IB = 10 −55°C 150°C 0.4 25°C −EMITTER TAGE (V) OR 0.3 −55°C 25°C 150°C 100 0.2 TION VOL , DC CURRENT GAIN , COLLECT TURA h FE 0.1 SA V CE(sat) 10 0 0.001 0.01 0.1 1 10 0.001 0.01 0.1 1 10 IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A)
Figure 1. DC Current Gain Figure 2. Collector−Emitter Saturation Voltage www.onsemi.com 2
